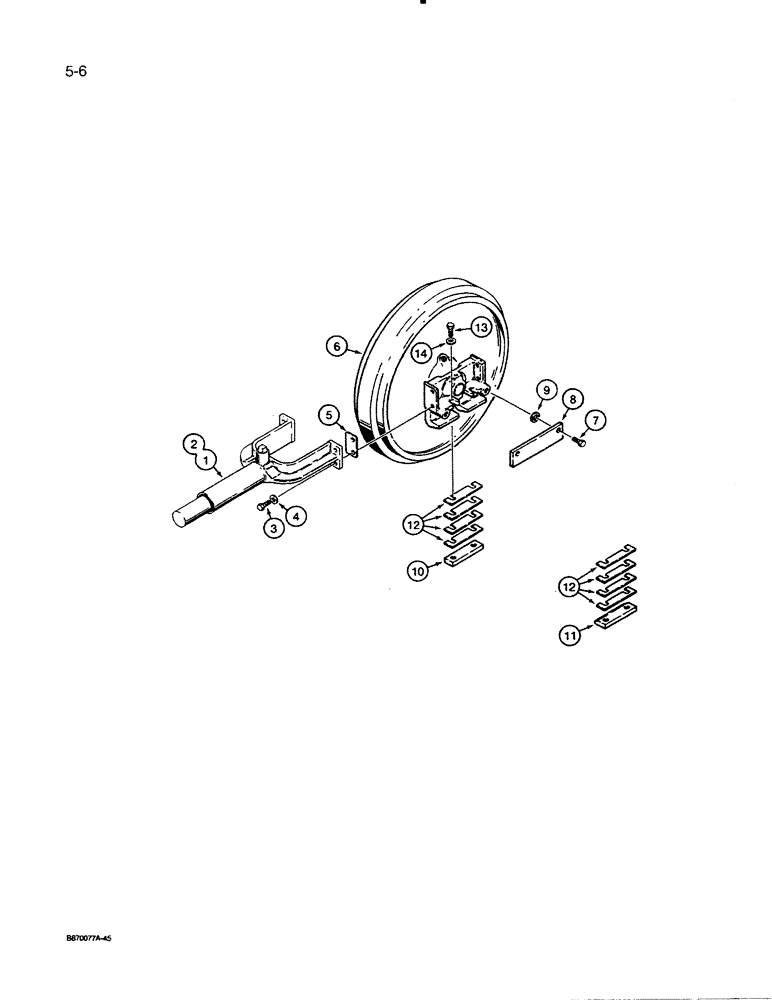

Запчасти Case 455C (5-06) - TRACK ADJUSTER AND IDLER MOUNTING (11) - TRACKS/STEERING

1

R51909

ADJUSTER

TRACK ADJUSTER - used on loaders, standard 53 inch gauge dozer, and 64 inch gauge standard length LGP dozer models, parts

1шт.

list Figure 5-08

2шт.

2

R54459

ADJUSTER

TRACK ADJUSTER - used on 64 inch gauge LGP extended track and 53 inch gauge long track dozer models, parts list Fig. 5-8

2шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

4

R24323

WASHER

- flat, 1/2", hardened

8шт.

5

R37875

SHIM,0.813mm Thk

(.032"), Idler bracket to track adjuster 0.813mm Thk

1шт.

6

R52404

STEERING IDLER

IDLER - parts list Fig. 5-10

2шт.

7

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

8

R49772

LARGE PLATE

PLATE - idler guide

4шт.

9

D44330

SHIM,.031" Thk

Idler guide plate .031" Thk

1шт.

10

R42181

BLOCK

unchamfered

1шт.

11

R52401

LARGE PLATE

BLOCK - idler support, with chamfer, used on idlers with R52402 bracket, if used

4шт.

Unchamfered block, may be used in place of Ref. 10

1шт.

For identification of idler brackets see Fig. 5-10.

1шт.

12

R52406

SHIM,0.81mm Thk

May be used with either Ref. 10 or Ref. 11 idler support block 0.81mm Thk

1шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

14

R24323

WASHER

- flat, 1/2", hardened

8шт.
