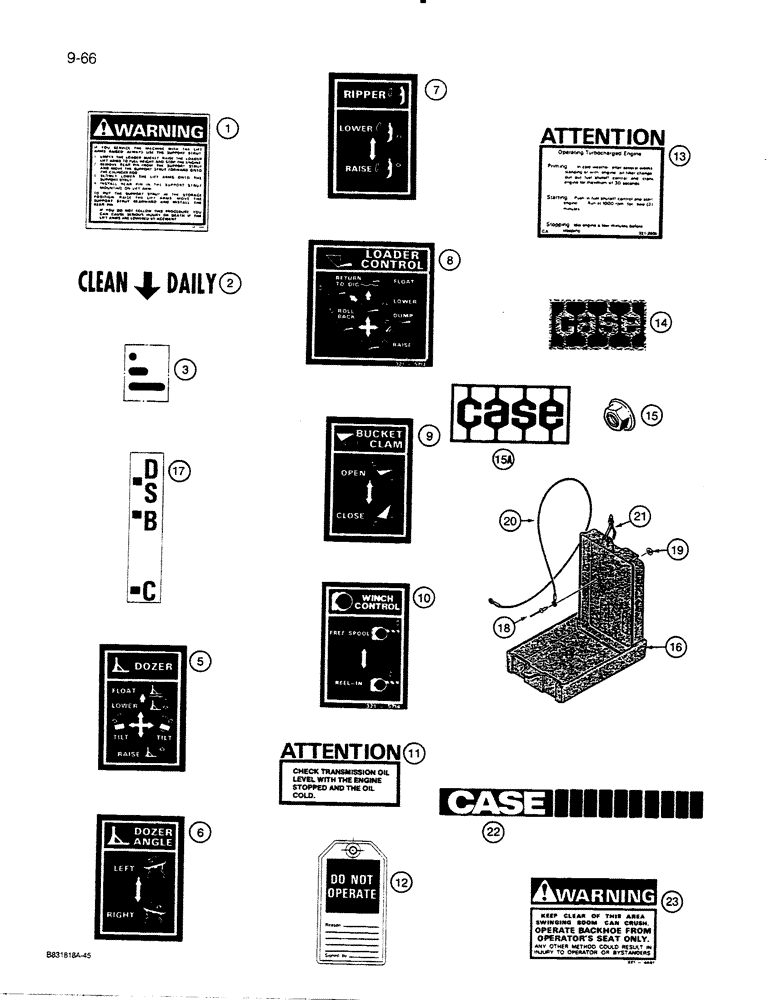

Запчасти Case 455C (9-66) - DECALS AND OPERATORS MANUAL BOX (09) - CHASSIS/ATTACHMENTS

R48676

DECAL

KIT - decals, also includes items on Fig. 9-64, Includes: Ref. 1 - 13

1шт.

1

321-6649

DECAL

- Warning, if you service the machine with the lift arms raised

2шт.

2

S45226

DECAL

- Clean Daily

2шт.

3

321-5479

DECAL

- clam bucket position

1шт.

5

321-4181

DECAL

- dozer control pattern, lift and tilt

1шт.

6

321-4182

DECAL

- dozer control pattern, angle

1шт.

7

321-4185

DECAL

- ripper control pattern

1шт.

8

321-5713

DECAL

- loader control pattern

1шт.

9

321-4184

DECAL

- bucket clam control pattern

1шт.

10

321-5714

DECAL

- winch control

1шт.

11

R50495

DECAL

- Attention, check the transmission oil level

1шт.

12

321-4614

TAG

- Do Not Operate

1шт.

13

R50422

DECAL

- Attention, Operating Turbocharged Engine

1шт.

14

321-4739

EMBLEM

- Case, metallic, on grille, if used

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4", used with Ref. 14 metallic emblem, if used

2шт.

15a

R51993

DECAL

- Case, adhesive, on grille, if used

1шт.

16

R46464

CASE

BOX - operators manual

1шт.

17

321-1707

DECAL

- clam bucket tilt indicator, on bucket tilt lever, if used

1шт.

18

151-522

RIVET,Pop, 3/16" x .575"

POP RIVET - 3/16"

3шт.

19

195-511

WASHER,#10

- flat, 3/16", plated

3шт.

20

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

R48490

DECAL

- Case, with ten tread marks to the right, used on the rear cover on models with a backhoe

1шт.

23

321-4481

DECAL

- Warning, keep clear of this area, used on models with a backhoe

2шт.
