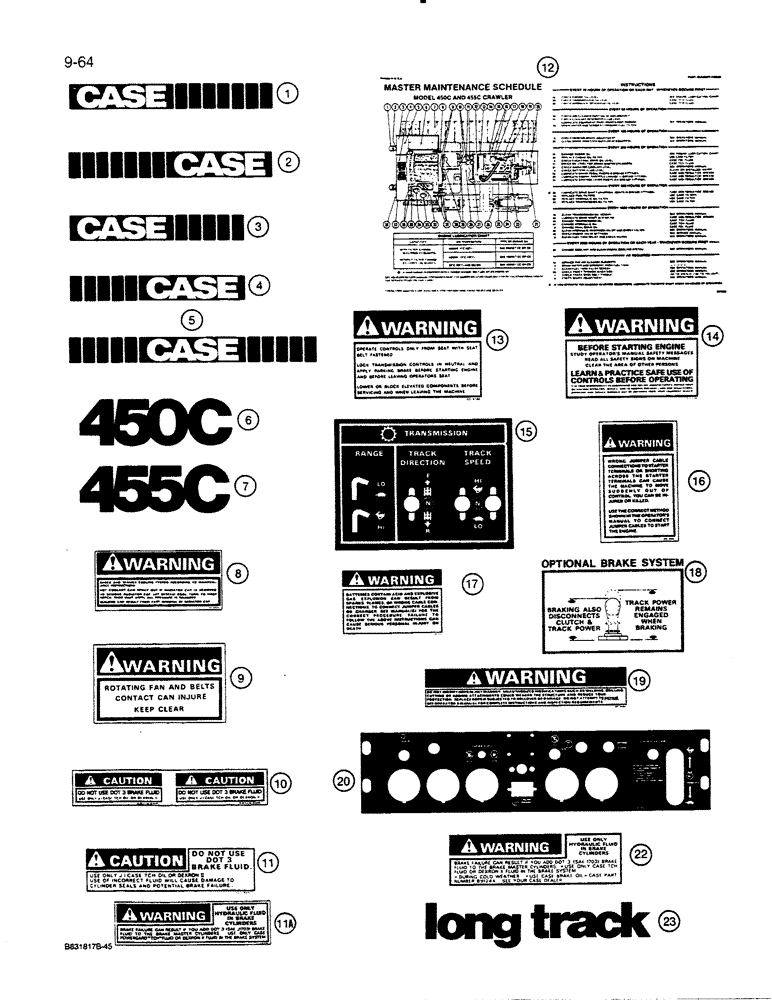

Запчасти Case 455C (9-64) - DECALS (09) - CHASSIS/ATTACHMENTS

R48676

DECAL

KIT - decals, also includes Ref. on Fig. 9-66, Includes: Ref. 1 - 23

1шт.

1

R48483

DECAL

- Case, with seven treads to the right, dozer and drawbar models

1шт.

2

R48484

DECAL

- Case, with seven treads to the left, dozer and drawbar models

1шт.

3

R48431

DECAL

- Case, with five treads to the right, loader models

1шт.

4

R48432

DECAL

- Case, with five treads to the left, loader models

1шт.

5

R48618

DECAL

- Case, with five treads on both sides, used on rear cover

1шт.

6

R48617

DECAL

- 450C, dozer and drawbar models

2шт.

7

R49133

DECAL

- 455C, loader models

2шт.

8

321-6672

DECAL

- Warning, check and service cooling system

1шт.

9

321-3596

DECAL

- Warning, rotating fan and belts

3шт.

10

321-6398

DECAL

- Caution, do not use DOT 3 brake fluid, on brake master cylinder, no longer used in this location

1шт.

11

321-6250

DECAL

- Caution, do not use DOT 3 brake fluid, on hood access door, no longer used, replace with Ref. 11A

1шт.

11a

321-6708

DECAL

- Warning, use only hydraulic fluid in brake cylinders, no longer available, order 321-6957 decal, Ref. 22

1шт.

12

R56345

DECAL

- Master Maintenance Schedule, replaces R48568 decal

1шт.

13

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

14

321-3705

DECAL

- Warning, before starting engine

1шт.

15

R49555

DECAL

- Transmission, Range, Track Direction, Track Speed

1шт.

16

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals, located on plate below starter, replaces all previous jump start decals

1шт.

17

321-6714

DECAL

- Warning, batteries contain acid and explosive gas, replaces all previous battery warning decals

2шт.

18

321-2114

DECAL

- Optional Brake System

1шт.

19

321-4192

DECAL

- Warning, do not modify ROPS

1шт.

20

R50423

DECAL

- instrument panel, with slots for instrument panel mounting hardware, if used.

1шт.

21

R51645

DECAL

- instrument panel, cut short of instrument panel not shown

1шт.

22

321-6957

DECAL

- Warning, use only hydraulic fluid in brake cylinders

1шт.

23

R56135

DECAL

- long track

2шт.
