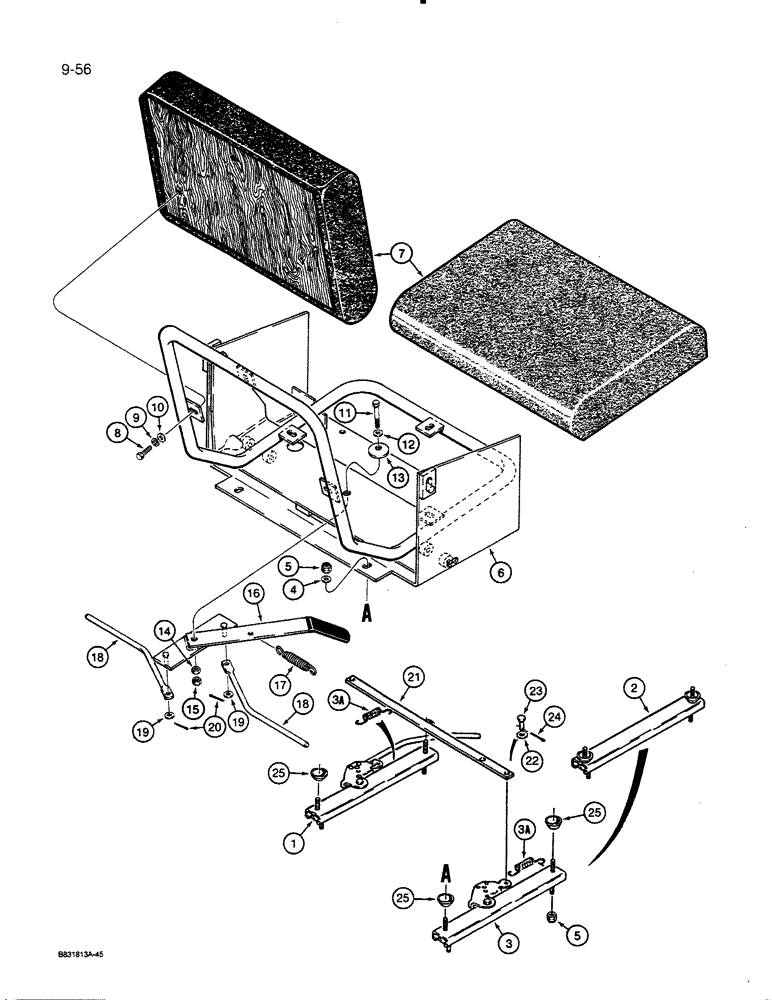

Запчасти Case 455C (9-56) - SEAT USED ON MODELS WITH A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

R53178

ADJUSTER

SEAT ADJUSTER ASSEMBLY - left-hand

1шт.

2

R45848

ANCHOR

SEAT ADJUSTER - right-hand, without spring and mounting bracket, no longer available, order Ref. 3 and 21 - 25

1шт.

3

R52275

ADJUSTER

SEAT ADJUSTER ASSEMBLY - right-hand, with spring and bracket, used with cross bar, Ref. 21

1шт.

3a

L35503

SPRING

- seat adjuster, part of Ref. 1 and 3 seat adjusters

1шт.

REF: 3A SPRING - SEAT ADJUSTER HAS A FREE LENGTH OF 1.83". IF A R52275 KIT IS ORDERED A 3 3/4" SPRING IS INCLUDED. A FEW OF THE NEW UNITS MAY REQUIRE THIS EXTRA LENGTH.

1шт.

4

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

5

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

8шт.

6

R48524

FRAME

- seat

1шт.

7

R48744

CUSHION ASSY.

CUSHION - seat

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

10

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

6шт.

11

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

12

D41740

WASHER

- flat, 3/8", hardened

1шт.

13

R14771

WASHER

BELLEVILLE SPRING - seat handle mounting

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

1шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

16

R48525

HANDLE

- seat release

1шт.

17

R29849

SPRING

- seat release

1шт.

18

R48530

ROD

- seat release

2шт.

19

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

20

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

21

R53224

BAR

- cross, seat adjusters

1шт.

22

195-101

WASHER,3/16"

- flat, , plated 3/16"

2шт.

23

141-51

CLEVIS PIN,3/16" x .580"

- 3/16", plated

2шт.

24

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

25

A45111

SPACER

- cupped, seat adjuster mounting

4шт.
