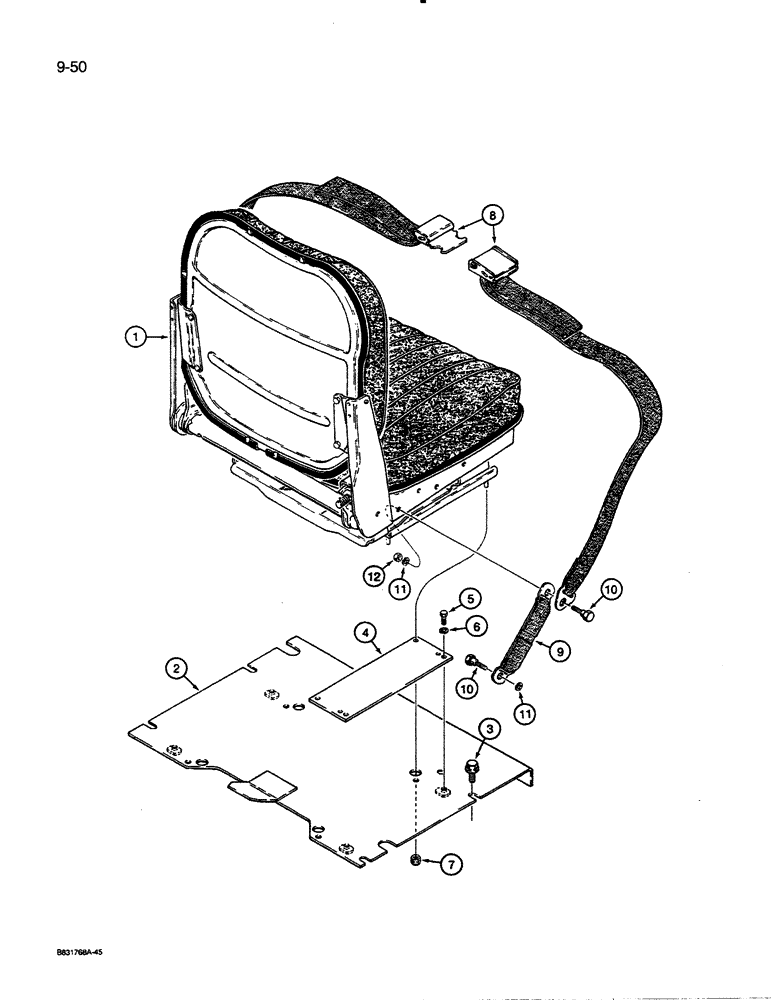

Запчасти Case 455C (9-50) - SUSPENSION SEAT MOUNTING AND SEAT BELT (09) - CHASSIS/ATTACHMENTS

1

R49353

SEAT

SUSPENSION SEAT ASSEMBLY - parts list Fig. 9-52

1шт.

2

R53225

LARGE PLATE

PLATE - seat mounting

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

4

R50967

LARGE PLATE

PLATE - suspension seat mounting

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

7

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

8

R51095

SAFETY BELT ,1.94" W

If used 1.94" W

1шт.

8

D85816

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, if used

1шт.

9

R45816

SAFETY BELT ,1.80" W

Extension 1.80" W

2шт.

10

R45855

BOLT

SHOULDER BOLT - special, 7/16" - 20 NF x 1-1/2"

4шт.

11

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

12

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.
