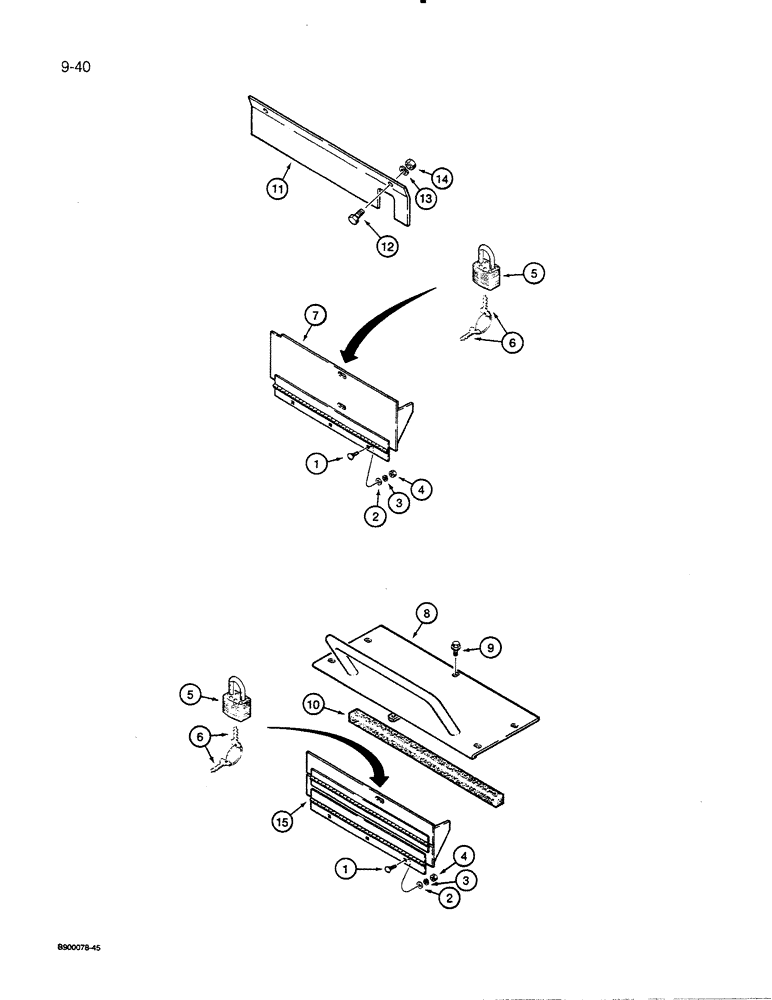

Запчасти Case 455C (9-40) - INSTRUMENT PANEL COVER (09) - CHASSIS/ATTACHMENTS

1

A42923

CARRIAGE BOLT

- special, 5/16" - 18 NC x 27/32"

3шт.

2

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

9635082

NUT,5/16" - 18, Gr 5

3шт.

5

D93753

PADLOCK

- instrument panel cover, Includes: Keys

1шт.

6

R29555

KEY

- for Master padlock only

2шт.

6

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

7

R40469

COVER

- instrument panel, used on loader models only

1шт.

8

R50763

LARGE PLATE

PLATE - hood extension, with grab handle, includes decals, used on dozer and drawbar models only

1шт.

9

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, used on dozer and drawbar models only

5шт.

10

R40035

PAD

- plate, 21-1/2" (546 mm) x 1" (25 mm) x 1" (25 mm), cut from R30870, see below, used on dozer and drawbar models only

1шт.

11

R40750

LARGE PLATE

PLATE - noise reduction, behind instrument panel, for pad see Fig. 9-62, if used, used on dozer and drawbar models only

1шт.

12

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

Used on dozer and drawbar models only Hex, 1/2"-13 x 3/4", G5, Full Thd

2шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on dozer and drawbar models only 1/2"

2шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used on dozer and drawbar models only 1/2"-13, G5

2шт.

15

R50545

COVER

- instrument panel, dozer and drawbar models only

1шт.

R30870

PAD

- bulk, 54" (1372 mm) x 72" (1829 mm) x 1" (25 mm), used on dozer and drawbar models only

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces, used on dozer and drawbar models only

1шт.
