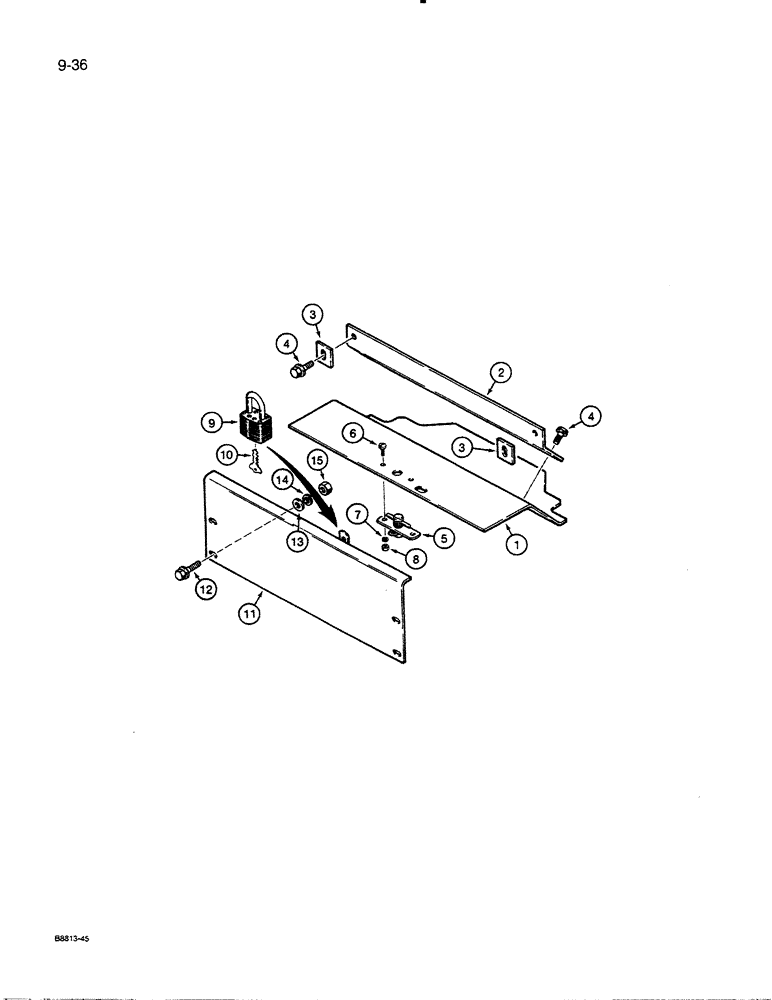

Запчасти Case 455C (9-36) - BATTERY COMPARTMENT AND REAR COVER, MODELS WITH A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

R50768

COVER

- battery compartment, includes decals

1шт.

2

R49226

SUPPORT

ANGLE - seat support

1шт.

3

R49227

LARGE PLATE

PLATE - alignment, seat support

2шт.

4

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

5

L102515

LATCH

- battery compartment cover

1шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No 10 - 24 NC x 1/2", plated

2шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

8

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

2шт.

9

D93753

PADLOCK

- battery cover, Includes: keys

1шт.

10

R29555

KEY

- for Master padlock only

2шт.

10

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

11

R50019

COVER

- rear

1шт.

12

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

13

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, if used

4шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , If used 1/2"

4шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used 1/2"-13, G5

4шт.
