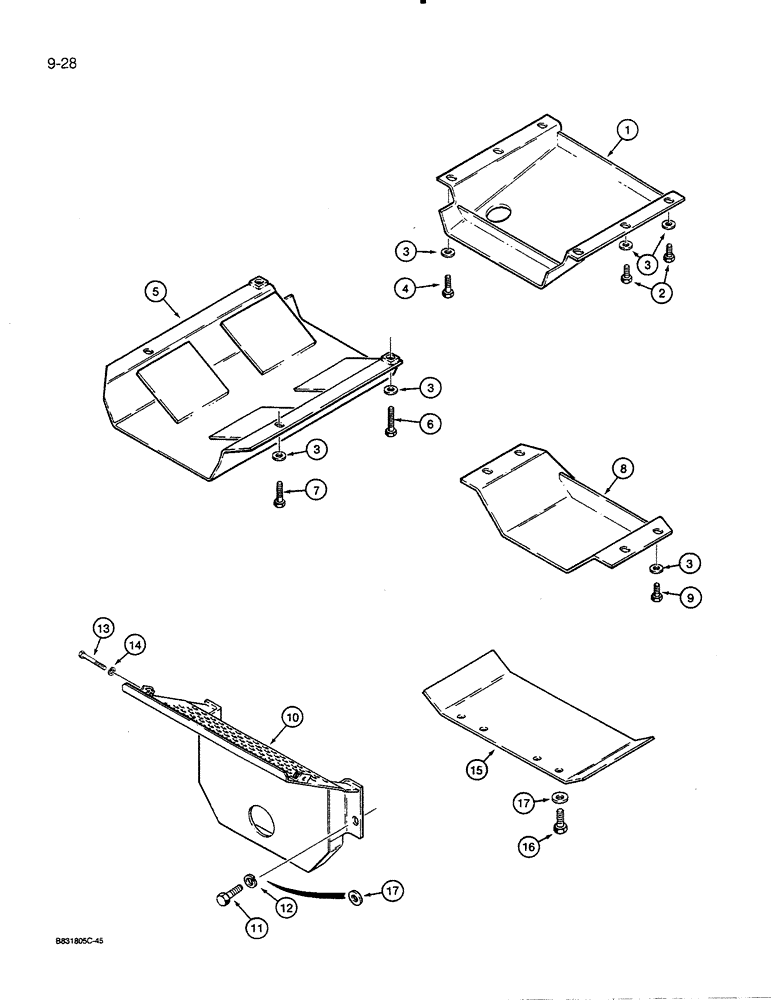

Запчасти Case 455C (9-28) - UNDERCARRIAGE AND REAR TRANSMISSION GUARDS (09) - CHASSIS/ATTACHMENTS

1

R46842

GUARD

- front, engine, guard may have holes or slots

1шт.

2

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex head, 5/8" - 11 NC x 1-3/4", plated

4шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, 5/8"

14шт.

4

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

5

D35162

GUARD

- center, torque converter and transmission

1шт.

6

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

7

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

8

R52242

GUARD

- rear, transmission, guard may have holes or slots

1шт.

9

113-607

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

- hex head, 5/8" - 11 NC x 1-3/4", plated

4шт.

10

R47231

GUARD

- rear, transmission, upper, used on dozer and drawbar models with no rear equipment, if used

1шт.

11

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

12

192-27

LOCK WASHER,3/4"

WASHER, LOCK, , If used 3/4"

2шт.

13

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

R50539

GUARD

- winch, lower, bolts to winch housing, if used

1шт.

16

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4", hardened

4-6шт.
