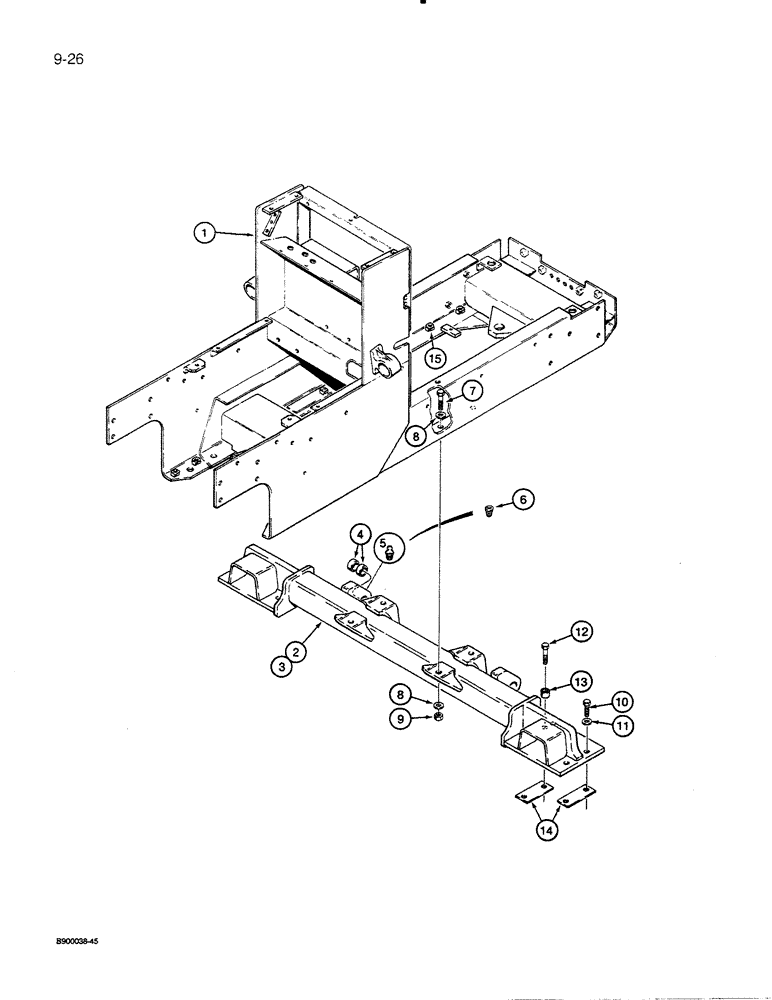

Запчасти Case 455C (9-26) - ENGINE FRAME FOR DOZER AND DRAWBAR MODELS, FRONT CROSSMEMBER FOR ALL 64 INCH GAUGE LGP MODELS (09) - CHASSIS/ATTACHMENTS

1

R54342

FRAME

- main and engine, dozer and drawbar models

1шт.

For the engine frame used on loader models and pull hook used on all models see Figure 9-22 For the front crossmember used on 53 inch gauge dozer models, see Figure 9-24.

1шт.

2

R54458

DRAWBAR

CROSSMEMBER - front, LGP standard track length models only

1шт.

R54458 uses an R43511 lug assembly

1шт.

The "L" shaped lug assemblies located on the crossmember weldment differ from one assembly to another.

1шт.

3

R54432

DRAWBAR

CROSSMEMBER - front, LGP extended track models only

1шт.

R54432 uses R54434 lug assembly.

1шт.

Both consist of 1 lug with 2 pieces of D30930 bushing installed.

1шт.

4

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- C-frame mounting lug, R54458 or R54432 crossmember, Ref. 2 and 3

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, if used

2шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, if used, replaces square head plug used on some models

2шт.

7

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

8шт.

9

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

10

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242, outer holes Hex, 3/4"-10 x 2", G8

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

4шт.

12

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, use with Loctite 242, inner holes

6шт.

13

R30398

SPACER

- inner holes

6шт.

14

NLS

NO LONGER SERVICED

Front crossmember, LGP standard track length models only .457mm Thk

4шт.

15

25-2810

SQUARE NUT

- square, cage, 5/8 inch NC, heavy, weld-on, for mounting undercarriage guards

14шт.

The cage nut for reference no. 15 is D35240

1шт.
