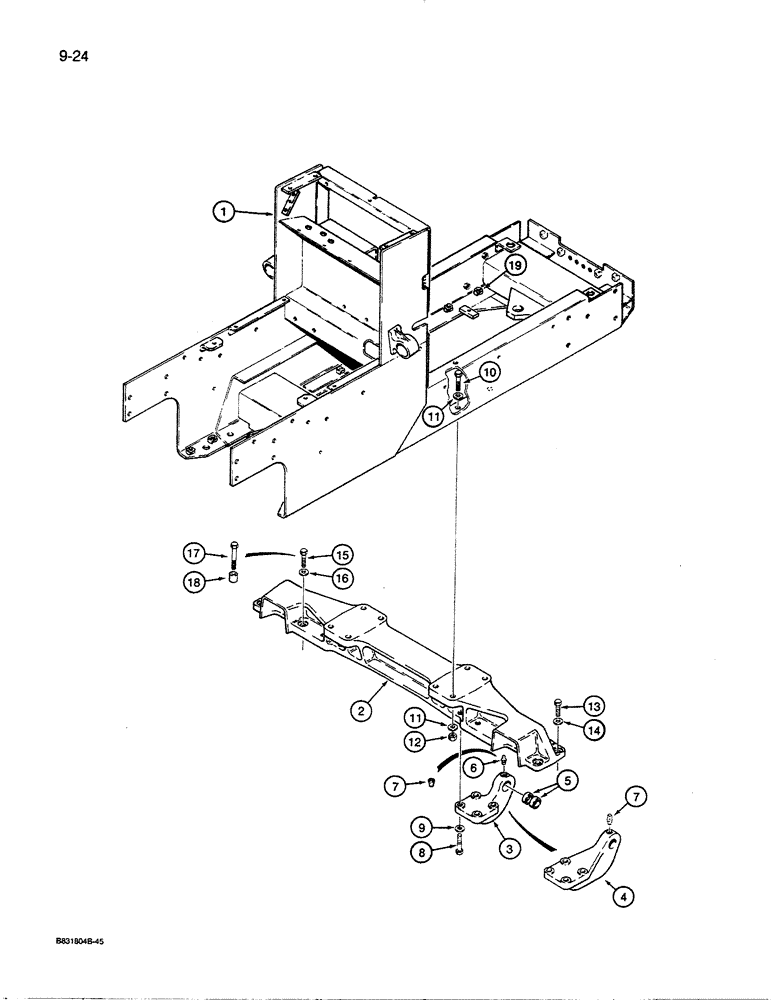

Запчасти Case 455C (9-24) - ENGINE FRAME FOR DOZER AND DRAWBAR MODELS, FRONT CROSSMEMBER FOR ALL 53 INCH GAUGE MODELS (09) - CHASSIS/ATTACHMENTS

1

R54342

FRAME

- main and engine, dozer and drawbar models

1шт.

For the engine frame used on loader models and pull hook used on all models see Figure 9-22. For the front crossmember used on 64 inch gauge LGP dozer models, see Figure 9-26.

1шт.

2

R47683

LARGE PLATE

CROSSMEMBER - front, loader, drawbar,and 53 inch gauge standard and long track dozer models

1шт.

3

R47535

HOLDER

BRACKET - C-frame mounting, 53 inch gauge standard dozer models only

2шт.

4

R55861

BRACKET

- C-frame mounting, 53 inch gauge long track dozer models only

2шт.

5

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- R47535 or R55861 bracket, Ref. 3 and 4

2шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, if used

2шт.

7

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, if used, replaces squarehead plug used on some models

2шт.

8

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8

8шт.

Bolt also used on long track units.

1шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

8шт.

10

26-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, grade 8

4шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

8шт.

12

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

13

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

use with Loctite 242, outer holes Hex, 3/4"-10 x 2", G8

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened

4шт.

15

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8, use with Loctite 242, inner holes, all 53 inch gauge models except long track dozer models

4шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, 3/4 inch, hardened, inner holes, all 53 inch gauge models except long track dozer models

4шт.

17

26-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

- hex, 3/4 NC x 3-1/4 inch, grade 8, inner holes, long track dozer models only

4шт.

18

R30398

SPACER

- inner holes, long track dozer models only

4шт.

19

25-2810

SQUARE NUT

- square, cage, 5/8 inch NC, heavy, weld-on, for mounting undercarriage guards

14шт.
