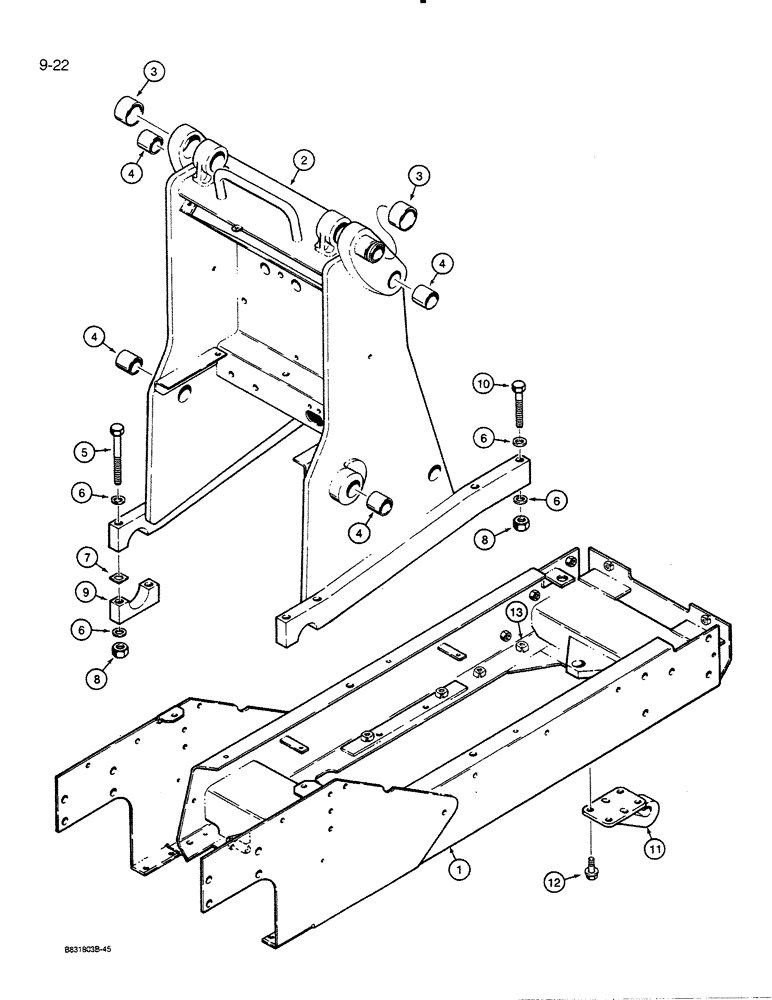

Запчасти Case 455C (9-22) - ENGINE FRAME, COWL, AND PULL HOOK, LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R51973

FRAME

- engine, loader models

1шт.

For the engine frame used on dozer and drawbar models and the front crossmember used on all models, see Fig. 9-24 and 9-26. For the rear pivot shaft, see Fig. 5-32.

1шт.

2

R54447

SET

COWL - loader upright, includes decals, for service of loader mounting pivot brackets, order R53504 or R53505 kit, see below, Includes: Ref. 3 and 4

1шт.

3

R48050

BUSHING

- upper, bucket cylinder pivot

2шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- loader lift frame and lift cylinder pivot

4шт.

5

113-814

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex head, 7/8" - 9 NC x 7-1/2", plated

4шт.

6

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- flat, 7/8", hardened

16шт.

7

R28516

SPACER

- rear mounting holes

2шт.

8

131-658

LOCK NUT,7/8"-9, GB

NUT - hex, self-locking, 7/8" - 9 NC

8шт.

9

D34663

CLAMP

- cowl to pivot shaft

2шт.

For the engine frame used on dozer and drawbar models and the front crossmember used on all models, see Fig. 9-24 and 9-26. For the rear pivot shaft, see Fig. 5-32.

1шт.

10

113-826

BOLT,Hex, 7/8" - 9 x 6", Gr 5

- hex head, 7/8" - 9 NC x 6", plated, cowl to front crossmember

4шт.

For the engine frame used on dozer and drawbar models and the front crossmember used on all models, see Fig. 9-24 and 9-26. For the rear pivot shaft, see Fig. 5-32.

1шт.

11

R50469

HOOK

PULL HOOK - front, if used

1шт.

12

121-430

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

BOLT - hex flange, 1/2"-13 NC x 1-1/2", G8, Teflon coated

6шт.

13

25-2810

SQUARE NUT

- square, heavy, 5/8 inch NC, cage, weld-on, for mounting undercarriage guards

14шт.

Cage is D35240.

1шт.

R53504

BRACKET

KIT - service, left-hand pivot, loader mounting bracket, includes pivot bracket, bushings, and instruction sheet

1шт.

This service kit is a new item not found in previous catalogs.

1шт.

R53505

BRACKET

KIT - service, right-hand pivot, loader mounting bracket, includes pivot bracket, bushings, and instruction sheet

1шт.

This service kit is a new item not found in previous catalogs.

1шт.
