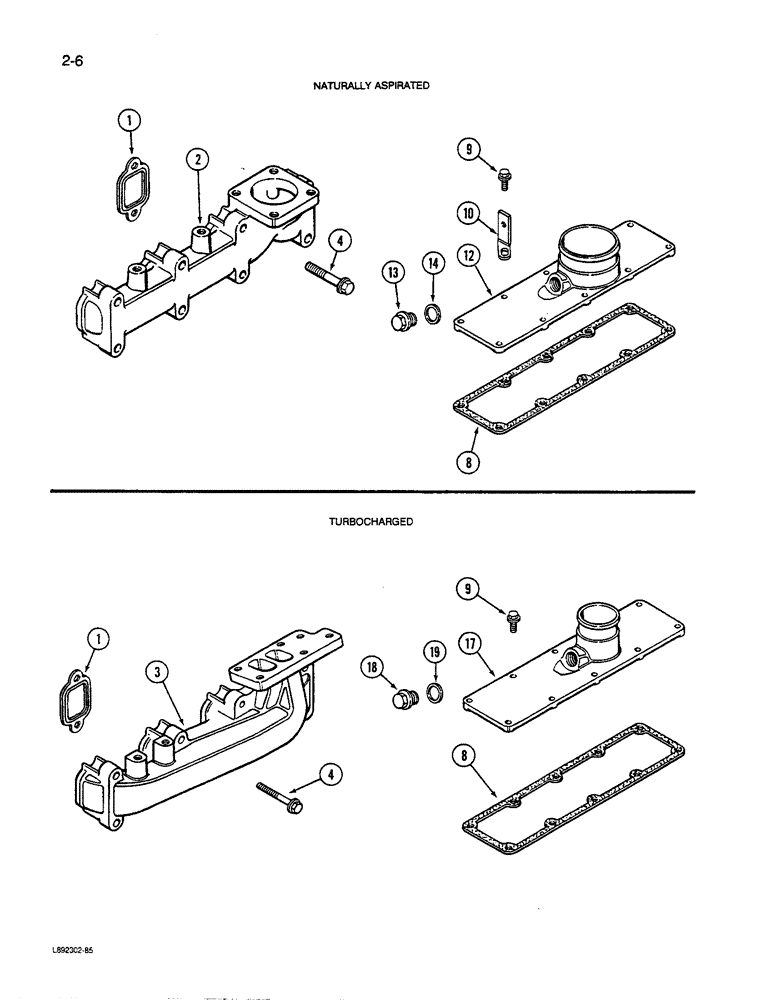

Запчасти Case 455C (2-06) - MANIFOLDS, EXHAUST, 4-390 ENGINE, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901223

MANIFOLD

- exhaust, natural aspirated

1шт.

3

J901919

MANIFOLD

- exhaust, turbocharged

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 mm - 1.50 x 65 mm, Grade 10.9, Replaces J901448

8шт.

8

J914028

GASKET

- intake manifold

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold, Replaces J904341 Hex Flg Hd, M8 x 1.25 x 25

10шт.

10

NSS

NOT SOLD SEPARAT

BRACE - fuel tube, see Fig. 3-8, intake

1шт.

A77415

COVER

KIT - intake manifold, natural aspirated, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

MANIFOLD - intake, order kit

1шт.

13

J907185

PLUG

ASSEMBLY - manifold, if equipped, intake

1шт.

14

J906773

WASHER

- plug sealing, if equipped, intake

1шт.

A77416

COVER

KIT - intake manifold, turbocharged, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

MANIFOLD - intake, order kit

1шт.

18

J907185

PLUG

ASSEMBLY - manifold, if equipped, intake

1шт.

19

J906773

WASHER

- plug sealing, if equipped, intake

1шт.
