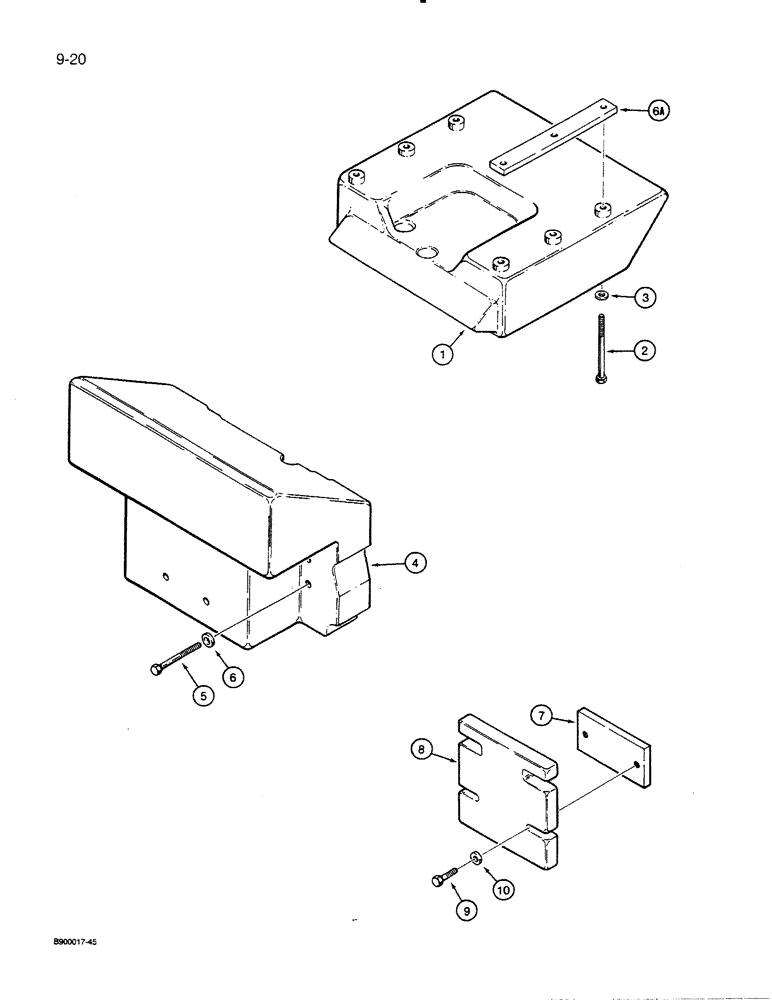

Запчасти Case 455C (9-20) - COUNTERWEIGHTS (09) - CHASSIS/ATTACHMENTS

1

R48541

WEIGHT

COUNTERWEIGHT - front, 930 lb (421 kg), if used (cannot be used with pull hook)

1шт.

2

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- hex, 5/8 NC x 8 inch, replaces 7-1/2 inch bolt

6шт.

3

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, hardened, 5/8", no longer used, not required

6шт.

4

R47068

WEIGHT

COUNTERWEIGHT - rear, 1650 lb. (748 kg), used on loader models with no rear mounted equipment, accepts Ref. 8 drawbar on Fig. 9-18, if used

1шт.

5

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

6

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, 3/4"

6шт.

6a

R56697

LARGE PLATE

PLATE - spacer

2шт.

REF: #6A ALLOWS INCREASED CLEARANCE BETWEEN THE COUNTERWEIGHT CAVITY AND OIL PAN. THIS KEEPS DEBRE FROM GETTING TRAPPED IN THE WEIGHT CAVITY AND WEARING HOLES IN OIL PAN. 14-MAY-96

1шт.

7

R32850

BLOCK

PLATE - counterweight mounting, weld on, used on standard loader bucket on models with backhoe

4шт.

8

R43133

BALANCER

COUNTERWEIGHT - loader bucket, 67 lb. (30.4 kg), used on models with a backhoe

4шт.

9

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Counterweight used on standard loader bucket on models with backhoe Hex, 3/4"-10 x 2 1/4", G5

8шт.

10

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4", counterweight used on standard loader bucket on models with backhoe

8шт.
