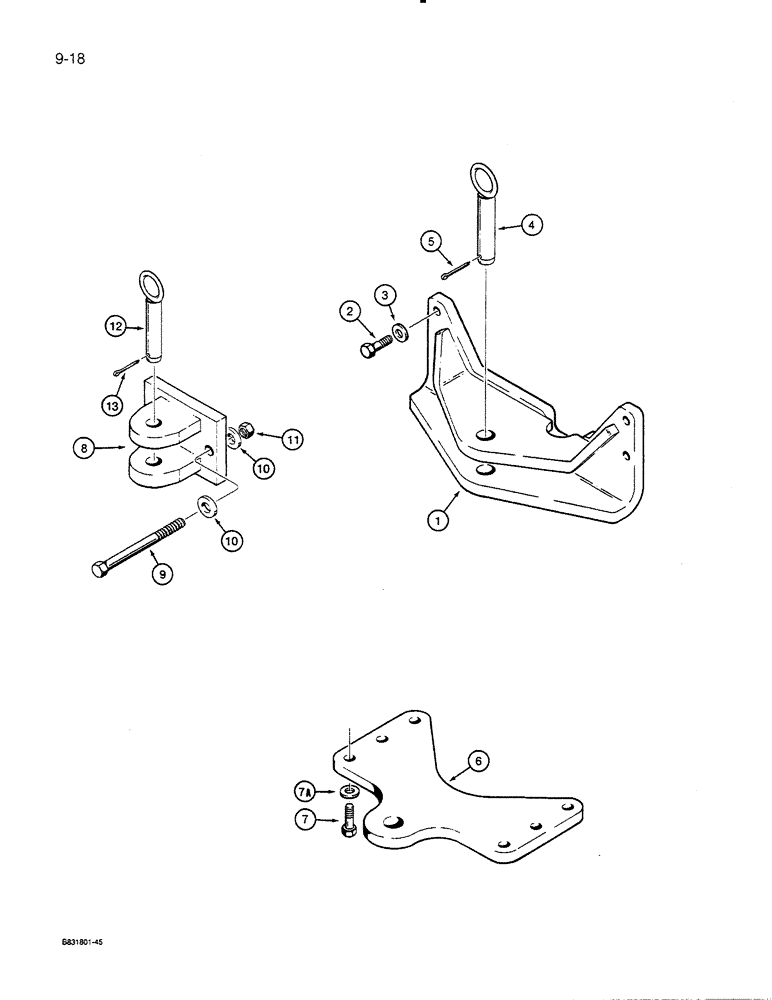

Запчасти Case 455C (9-18) - DRAWBARS, USED ON DOZER AND DRAWBAR MODELS, WITH NO REAR EQUIPMENT (09) - CHASSIS/ATTACHMENTS

1

R47224

DRAWBAR

- dozer and drawbar models with no rear equipment

1шт.

2

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4"

4шт.

4

R24105

DRAWBAR

PIN - drawbar

1шт.

5

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

6

R37324

DRAWBAR

- winch models, not used with four-roller fairlead, used on models with a winch

1шт.

7

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used on models with a winch Hex, 3/4"-10 x 2", G5

6шт.

7a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, 3/4", used on models with a winch

6шт.

8

R39904

DRAWBAR

- must be used with rear counterweight on Fig. 9-20, used on loader models with no rear equipment

1шт.

9

15-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex head, 3/4" - 10 NC x 9", used on loader models with no rear equipment

2шт.

10

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, hardened, 3/4", used on loader models with no rear equipment

4шт.

11

129-108

NUT,3/4"-10, G5

Used on loader models with no rear equipment 3/4"-10, G5

2шт.

12

R24105

DRAWBAR

PIN - drawbar, used on loader models with no rear equipment

1шт.

13

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on loader models with no rear equipment 1/4" x 2"

1шт.
