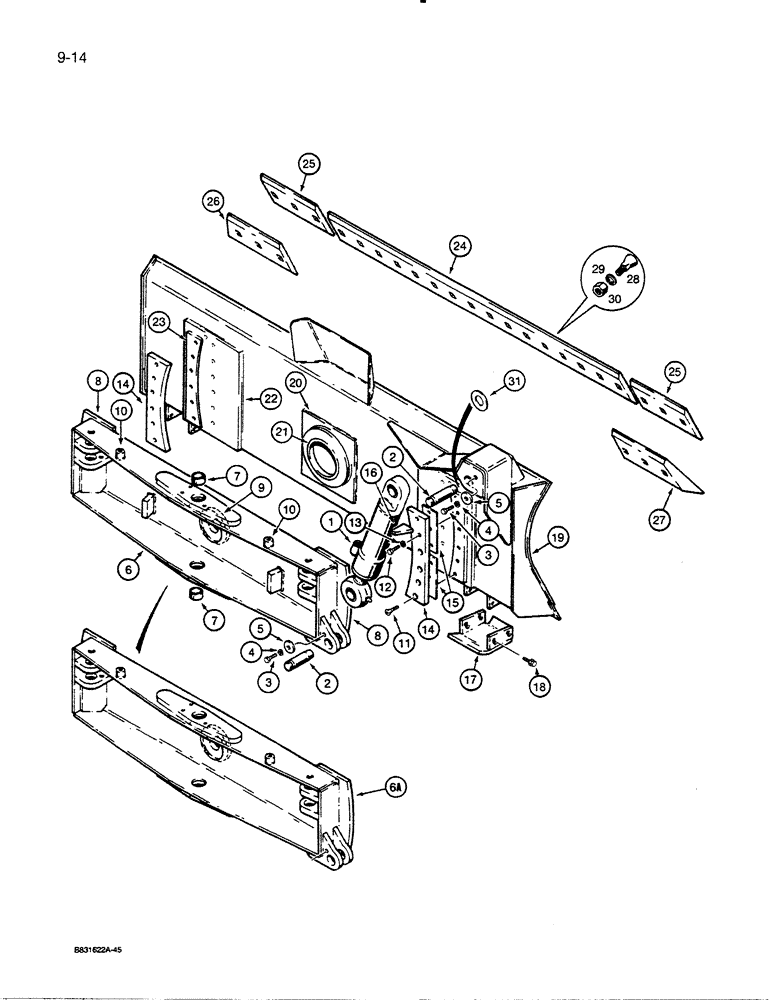

Запчасти Case 455C (9-14) - DOZER LEVELING BEAM, BLADE, AND TILT CYLINDER (09) - CHASSIS/ATTACHMENTS

1

G101228

CYLINDER ASSY.

CYLINDER - tilt, parts list Fig. 8-46

1шт.

2

D34796

PIN

- tilt cylinder mounting

2шт.

3

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

4

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special

2шт.

R43951

BEAM

ASSEMBLY - leveling, dozer blade, Includes: Ref. 6 - 10

1шт.

R56545

BEAM

ASSEMBLY - leveling, used in production, for service order R43951 beam above, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BEAM - leveling, dozer blade, R43951 beam

1шт.

6a

NSS

NOT SOLD SEPARAT

BEAM - leveling, dozer blade, R56545 beam

1шт.

7

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- leveling beam

2шт.

8

R38789

LARGE PLATE

PLATE - rub

2шт.

9

D34869

LARGE PLATE

PLATE - swivel

1шт.

Part that mates with d34844 ring is d34869 plate.mck1-20

1шт.

10

F43347

BLOCK

- tapped

2шт.

11

164-81

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 1 1/2"

BOLT - hex socket head, 5/8" - 11 NC x 1-1/2", grade 8

4шт.

12

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

13

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

14

D47764

PLATE ASSY.

PLATE - wear

2шт.

15

D47911

SHIM,.0359" Thk

Wear plate .0359" Thk

1шт.

16

D42402

GAUGE

- leveling, welds to tilt cylinder guard, see Fig. 8-28

1шт.

17

R24491

SHOE (ASSY)

SHOE - skid, blade, if used

2шт.

18

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

8шт.

19

R35968

BUCKET

BLADE - 88" (2235 mm) wide, used on 53 inch gauge standard and long track dozer models, Includes: Ref. 20 - 23

1шт.

19

R43184

BUCKET

BLADE - 104" (2642 mm) wide, used on LGP dozer models, Includes: Ref. 20 - 23

1шт.

20

R48943

LARGE PLATE

PLATE - swivel backing, welded to R35968 or R43184 blade

1шт.

21

D34855

RING

- swivel, welded to R35968 or R43184 blade

1шт.

REF: # 21 MADE UP OF D34855 RING AND R48943 PLATE.

1шт.

22

D47766

LARGE PLATE

PLATE - backing, welded to R35968 or R43184 blade

2шт.

23

R41601

LARGE PLATE

PLATE - anchor, welded to R35968 or R43184 blade

2шт.

24

R29741

BLADE

CUTTING EDGE - center, used on 53 inch gauge standard and long track dozer models

1шт.

24

R43179

EDGE, CUTTING

CUTTING EDGE - center, used on LGP dozer models

1шт.

25

R29742

BLADE

CUTTING EDGE - end, standard

2шт.

26

D43406

EDGE, CUTTING

CUTTING EDGE - left-hand end, heavy duty

1шт.

27

D43407

EDGE, CUTTING

CUTTING EDGE - right-hand end, heavy duty

1шт.

28

118-336

PLOW BOLT,1/2"-13 x 1 3/4", G8

- 1/2" - 13 NC x 1-3/4"

22-26шт.

29

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

22-26шт.

30

129-184

NUT,1/2"-13, G8

- hex, 1/2" - 13 NC, grade 8, plated

22-26шт.

31

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- flat, hardened, used as a shim

1шт.
