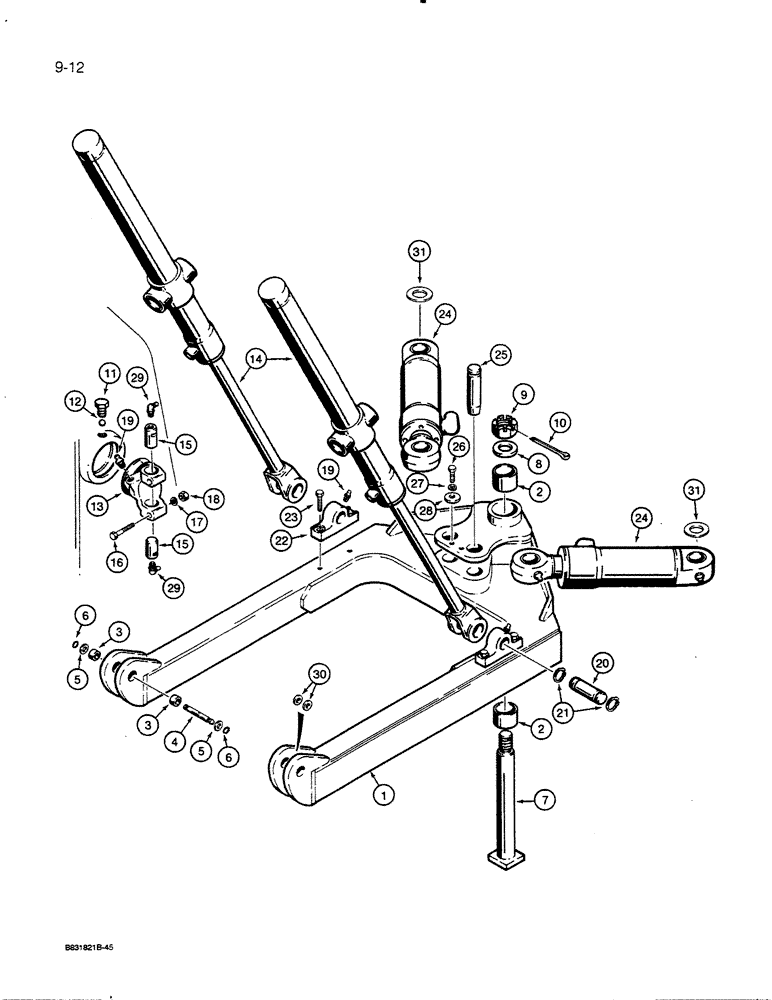

Запчасти Case 455C (9-12) - DOZER C-FRAME AND LIFT AND ANGLE CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R57259

FRAME

C-FRAME - dozer, Includes: Ref. 2 and 3

1шт.

REF: 1 LONG TRACK UNITS USE THE SAME C-FRAME.

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- leveling beam mounting

2шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- mounting lug

4шт.

4

R50774

SPLIT PIN/SAFETY PIN,38.1mm OD x 127mm L

PIN - C-frame mounting

2шт.

5

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, 1/2" ID, special, pin retaining

4шт.

6

T37909

SNAP RING,#150, Ext

Ring, Snap, , pin #150, Ext

4шт.

7

D34789

AXLE PIN

PIN - leveling, Serial Range: beam-C-frame

1шт.

8

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- flat, 1-1/2"

1шт.

9

25-1224

SLOTTED NUT,1 1/2"-6, G5

CASTLE NUT - 1-1/2" - 6 NC

1шт.

10

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

11

D28481

PLUG

- special

2шт.

12

211-219

BALL

- 3/4", grade 25, chrome alloy steel

38шт.

13

R47082

TRUNNION

- inner race

2шт.

14

G101229

CYLINDER

- lift, parts list Fig. 8-44

2шт.

15

D24508

PIN,31.74mm OD x 50.8mm L

- lift, Serial Range: cylinder-trunnion

4шт.

16

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

20

D46467

PIN

- lift, Serial Range: cylinder-C-frame

2шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, , cylinder mounting pin #125, Ext

4шт.

22

D46466

BRACKET

- cylinder mounting

2шт.

23

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/4", plated

4шт.

24

REF

INSTRUCTION

CYLINDER - angle, for correct assembly and components, see Figs. 8-48 or 8-50

2шт.

25

D34795

AXLE PIN,35.87mm OD x 136.4mm L

PIN - angle cylinder mounting

4шт.

26

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

27

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special

4шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Short 90º, 1/8" NPT x .84" lg

4шт.

30

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, 1/2" ID, special, used as a shim inside the C-frame mounting ears

1шт.

31

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- flat, hardened, used as a shim

1шт.
