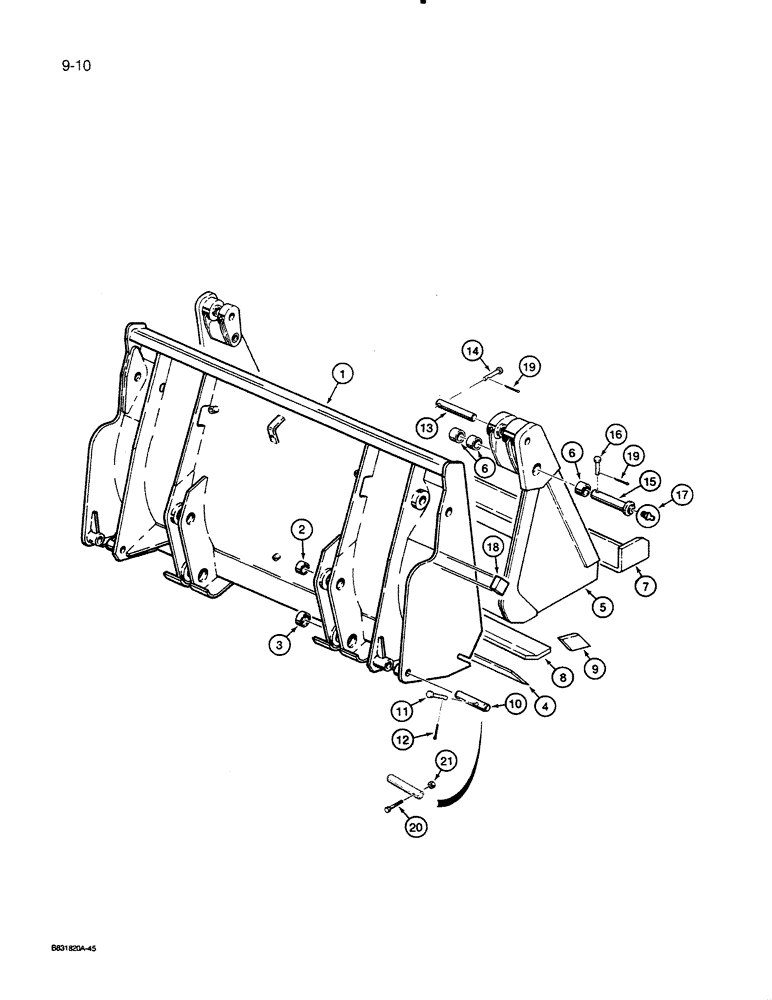

Запчасти Case 455C (9-10) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

R53584

BUCKET

ASSEMBLY - clam, order from Machinery Price List, Includes: Ref. 1 - 21

1шт.

R51491

EDGE, CUTTING

BLADE ASSEMBLY - clam bucket, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - clam bucket

1шт.

2

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- upper

4шт.

3

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- lower

4шт.

4

R53585

EDGE

CUTTING EDGE - blade

1шт.

R51490

BUCKET

CLAM ASSEMBLY - clam bucket, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

CLAM - clam bucket

1шт.

6

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- clam

6шт.

7

R42939

CROSSMEMBER

CUTTING EDGE - clam

1шт.

8

R53711

LARGE PLATE

WEAR PLATE - clam

1шт.

9

R53713

LARGE PLATE

PLATE - grab

2шт.

10

S203049

PIN

- lower, Serial Range: cylinder-blade

2шт.

11

S10781

PIN

CLEVIS PIN - lower cylinder pin, no longer used, replace with Ref. 20 and 21

2шт.

12

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Used with Ref. 11 clevis pin, if used 1/8" x 1"

2шт.

13

D39311

PIN

- upper, Serial Range: cylinder-clam

2шт.

14

D47252

PIN

CLEVIS PIN - upper cylinder pin

2шт.

15

D46917

PIN

-, Serial Range: clam-blade

2шт.

16

D46973

PIN

CLEVIS PIN - clam hinge pin

2шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

18

D46913

PLATE

BLOCK - clam stop

2шт.

19

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

20

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

21

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.
