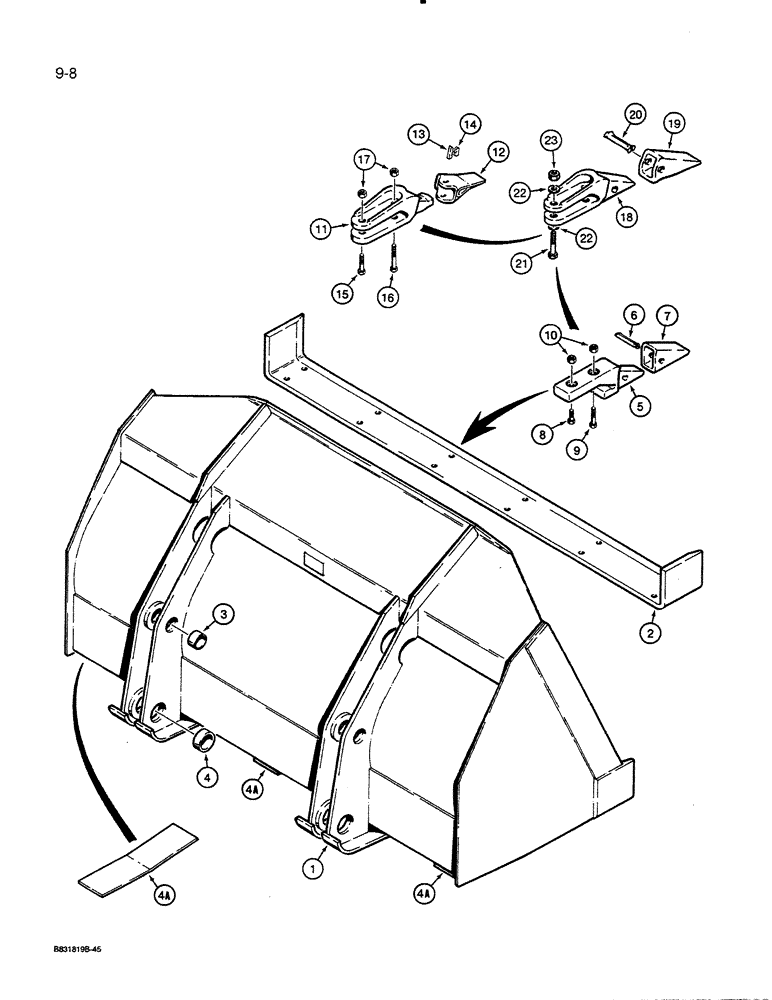

Запчасти Case 455C (9-08) - LOADER BUCKET (09) - CHASSIS/ATTACHMENTS

R48031

BUCKET ASSEMBLY - loader, order from Machinery Price List, Includes: Ref. 1 - 4A

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D51886

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- upper

4шт.

4

D33678

BUSHING,51.02mm ID x 63.5mm OD x 22.3mm L

- lower

4шт.

4a

R48040

LARGE PLATE

PLATE - skid, bucket teeth

3шт.

D50780

TOOTH

ASSEMBLY - standard, if used, may be replaced with R52645 heavy duty tooth assembly and hardware, see Ref. 18 - 23, Includes: Ref. 5 - 7

6шт.

D50780 TOOTH ASSY - STANDARD

1шт.

5

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

6

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth

1шт.

7

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket teeth

1шт.

8

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2", grade 8, bucket teeth

6шт.

9

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, bucket teeth

6шт.

10

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bucket teeth

12шт.

R42795

TOOTH

ASSEMBLY - heavy duty, no longer available, replace with R52645 tooth assembly and hardware, see Ref. 18 - 23, Includes: Ref. 11 - 13

6шт.

R42795 TOOTH ASSY - HEAVY DUTY

1шт.

11

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

12

R38572

TOOTH

POINT - tooth, bucket teeth

1шт.

13

R35318

PIN

- tooth, bucket teeth

1шт.

14

R35319

LOCK ASSY

LOCK - pin, bucket teeth

1шт.

15

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex head, 5/8" - 11 NC x 2-1/4", grade 8, bucket teeth

6шт.

16

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex head, 5/8" - 11 NC x 2-1/2", grade 8, bucket teeth

6шт.

17

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bucket teeth

12шт.

R52645

TOOTH

ASSEMBLY - heavy duty, bucket teeth, Includes: Ref. 18 - 20

6шт.

R52645 TOOTH ASSY - HEAVY DUTY STD. & 4 IN 1 BUCKET WELD.

1шт.

18

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

18

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

19

D51750

BUCKET TOOTH POINT

POINT - tooth, bucket teeth

1шт.

20

D39094

BUCKET TOOTH KEY

PIN - flex, bucket teeth

1шт.

21

26-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

- hex head, 5/8" - 11 NC x 2-3/4", grade 8, bucket teeth

12шт.

22

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8", hardened, bucket teeth

24шт.

23

131-1137

NUT,5/8"-11, GC

- hex, self-locking, 5/8" - 11 NC, bucket teeth

12шт.
