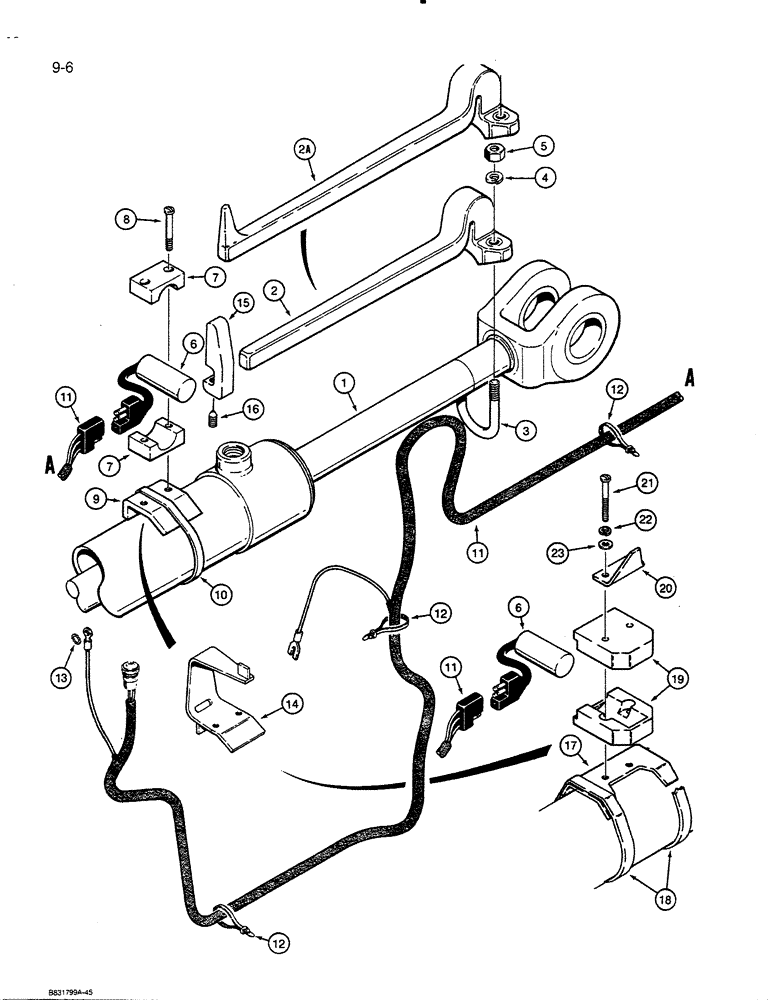

Запчасти Case 455C (9-06) - LOADER RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

G106630

CYLINDER ASSY.

CYLINDER - bucket tilt, right-hand, parts list Fig. 8-40

1шт.

2

R49483

ARM ASSY.

ARM - return-to-dig, without integral cast pointer, no longer available, replace with R52433 arm, Ref. 2A

1шт.

2a

R52433

ARM ASSY.

ARM - return-to-dig, with cast pointer

1шт.

3

R49532

BOLT

U-BOLT - return-to-dig arm

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

6

R47120

SWITCH

- proximity, return-to-dig

1шт.

7

R48091

CLAMP

- return-to-dig switch, two-piece, does not use Ref. 20 plastic pointer, if used

1шт.

8

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 1-1/4", plated, use with Ref. 7 clamp only, if used

2шт.

9

R49531

LARGE PLATE

PLATE - switch mounting, without bucket position indicator, no longer available, replace with Ref. 14

1шт.

10

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - adjustable, switch mounting plate or bracket

1шт.

11

R51972

HARNESS

- return-to-dig

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Harness ground at control valve mounting hardware Ext Tooth, 5/16"

1шт.

14

R49816

SUPPORT

BRACKET - switch mounting, with welded bucket position indicator, if used

1шт.

15

R49818

INDICATOR

- bucket position, if used

1-2шт.

16

178-43

SET SCREW,Hex Soc, 5/16"-18 x 5/8"

- hex socket headless, 5/16" - 18 NC x 5/8", cone point

1-2шт.

17

R52530

LARGE PLATE

BRACKET - switch mounting, used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification

1шт.

18

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - adjustable, switch mounting bracket, used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification

2шт.

19

L117005

CLAMP

- return-to-dig switch, used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification

2шт.

20

R53354

BRACKET

POINTER - bucket position indicator, plastic, may replace steel pointer used in production on some models

1шт.

21

182-211

SCREW,Sl Pan Hd, 1/4" - 20 x 2"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 2", used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification

2шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification 1/4"

2шт.

23

195-518

WASHER,1/4", SAE

- flat, 1/4", plated, used on models with bolt-on plastic bucket postion pointer, if used, see Ref. 20 for identification

2шт.
