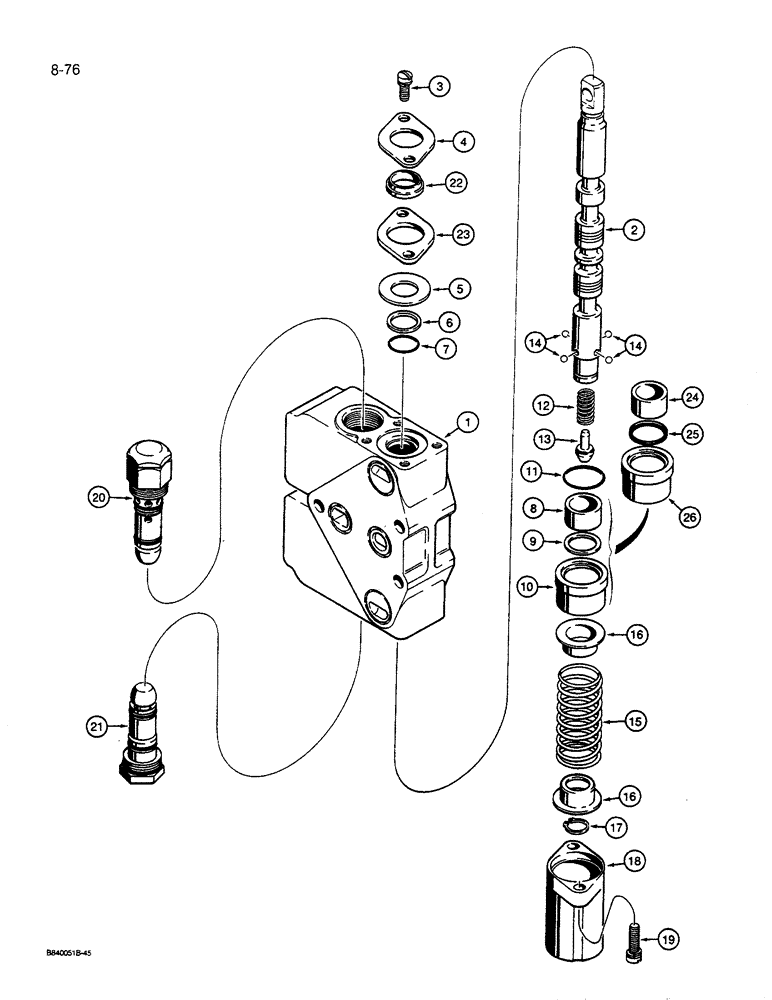

Запчасти Case 455C (8-76) - LIFT SECTIONS (08) - HYDRAULICS

N8944

VALVE

SECTION ASSEMBLY - lift, loader models only, Includes: Ref. 1 - 26

1шт.

N8970

VALVE BLOCK

SECTION ASSEMBLY - lift, dozer models only, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

- Fillister head with lock washer, 1/4" - 20 NC x 5/8", plated

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

1шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

1шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

1шт.

If dealer has lip seals instead of o-rings, see sevice bulletin NCR SB 015 95. Special tool is needed to install the lip seal. Can retrofit the lip seals into an existing 0-ring set up, but additional parts are needed. Info for additional parts and the special tool can be found in the bulletin.

1шт.

8

N7038

SLEEVE

- spool, .93" (24 mm) OD x .55" (14 mm) long, use with Ref. 9 and 10

1шт.

Ref. 8, 9, and 10 cannot be mixed with Ref. 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Ref. 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.

9

N7036

SEALING RING

SEAL - spool sleeve, square section, use with Ref. 8 and 10

1шт.

Refs. 8, 9, and 10 cannot be mixed with Refs.s 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Refs.s 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.

10

N7034

SLEEVE VALVE

SLEEVE - detent, use with items 8 and 9

1шт.

Refs. 8, 9, and 10 cannot be mixed with Refs.s 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Refs.s 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.

11

343900R1

O-RING,1.051" ID x 0.07" Width

- detent sleeve

1шт.

12

N8967

SPRING

- detent

1шт.

13

N7035

VALVE POPPET

POPPET - detent

1шт.

14

211-6

BALL,7/32" Dia

steel 7/32" Dia

4шт.

15

N8966

SPRING

CENTERING SPRING - spool

1шт.

16

N7033

SEAT

- spring

2шт.

17

103-1162

SNAP RING,#62, Ext

Ring, Snap, , spool, CLIP - hose retaining #62, Ext

1шт.

18

N7031

COVER

CAP - spool detent

1шт.

19

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- Fillister head with lock washer, 1/4" - 20 NC x 7/8", plated

2шт.

20

N8950

VALVE

ASSEMBLY - circuit relief, spool eye end, loader models only, parts list Fig. 8-80

1шт.

21

D87307

VALVE

ASSEMBLY - load check, two used on dozer models, one used on loader models, spool detent end, parts list Figure 8-84

1-2шт.

22

N7029

SCRAPER

WIPER - spool

1шт.

23

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.

24

N14700

COVER

SLEEVE - spool, .996" (25 mm) OD x .58" (15 mm) long, use with Ref. 25 and 26

1шт.

Refs. 8, 9, and 10 cannot be mixed with Refs.s 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Refs.s 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.

25

N14699

SEAL

SEAL - spool sleeve, lip seal, use with Ref. 24 and 26

1шт.

Refs. 8, 9, and 10 cannot be mixed with Refs.s 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Refs.s 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.

26

N14701

SLEEVE VALVE

SLEEVE - detent, use with Ref. 24 and 25

1шт.

Refs. 8, 9, and 10 cannot be mixed with Refs.s 24, 25, and 26. The sleeve assembly can be identified by the dimensions of the spool sleeves given above (Refs.s 8 and 24), or by identifying whether the assembly uses a square section seal (Ref. 9) or a lip seal (Ref. 25).

1шт.
