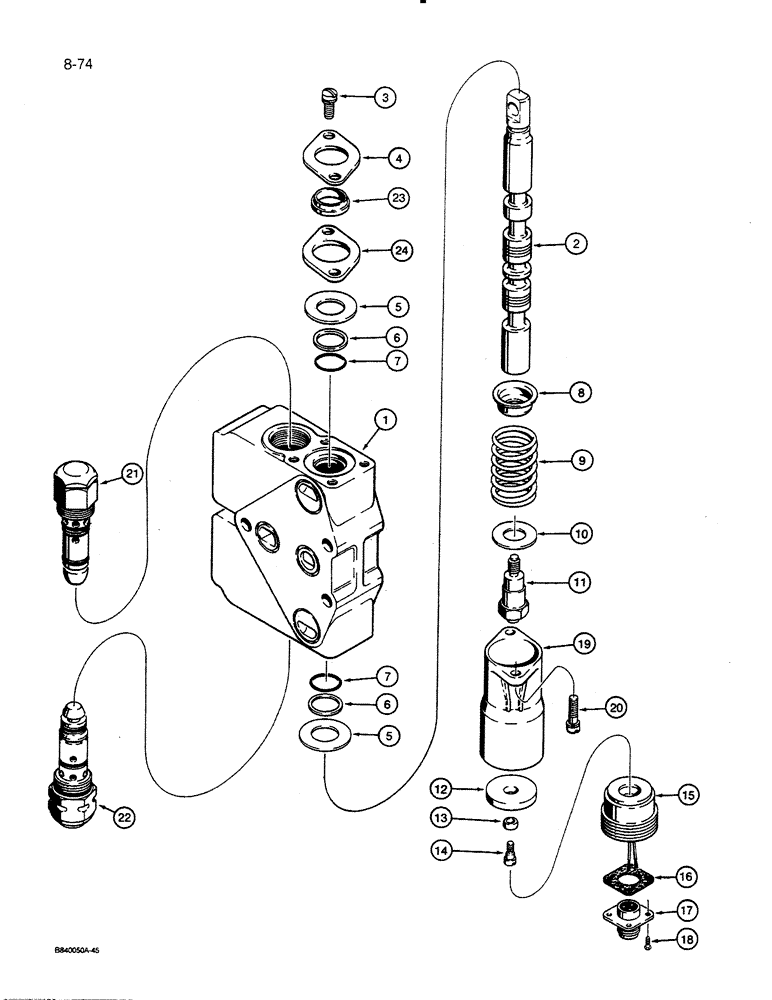

Запчасти Case 455C (8-74) - LOADER BUCKET TILT SECTION, WITH MAGNETIC DETENT (08) - HYDRAULICS

N8945

VALVE

SECTION ASSEMBLY - loader bucket tilt, with magnetic detent, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

193-557

SCREW,SEMS, Sltd Fil Hd, 1/4"-20 x 5/8", G5

- Fillister head with lock washer, 1/4" - 20 NC x 5/8", plated

2шт.

4

N8194

LARGE PLATE

PLATE - retainer, outer

1шт.

5

D88730

WASHER,0.77" ID x 1.43" OD

RETAINER - spool seals

2шт.

6

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

BACKUP RING - spool O-ring

2шт.

7

N13962

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- spool

2шт.

REF 7: IF DEALER HAS LIP SEALS INSTEAD OF ORINGS, SEE SERVICE BLTN NCR SB 015 95. SPECIAL TOOL IS NEEDED TO INSTALL THE LIP SEAL. CAN RETROFIT THE LIP SEALS INTO AN EXISTING ORING SET UP, BUT ADDITIONAL PARTS ARE NEEDED. COMPLETE INFO ON THE ADDITIONAL PARTS AND THE SPECIAL TOOL CAN BE FOUND IN THE BLTN. BW - 6/12/97

1шт.

8

H267591

SPRING SEAT

SEAT - spring, upper

1шт.

9

N8949

SPRING

CENTERING SPRING - spool

1шт.

10

N8953

WASHER

- spring seat, lower

1шт.

11

N8954

SHORT SHAFT

SHAFT - magnetic detent

1шт.

12

N8952

DISC

- magnetic detent

1шт.

13

N8955

WASHER

- alignment

1шт.

14

N8956

SCREW,#8 - 32 x 5/16"

- shoulder, magnetic detent shaft

1шт.

N8957

COIL ASSY.

COIL ASSEMBLY - magnetic detent, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

COIL - magnetic detent

1шт.

16

D80410

GASKET

- coil

1шт.

17

R33408

CONNECTOR, ELEC

CONNECTOR - coil

1шт.

18

187-1350

SELF-TAP SCREW,Cross Pan Hd, #4 x 5/16"

MACHINE SCREW - pan head slotted, No 4 - 40 NC x 5/16", plated

4шт.

19

N8951

COVER

CAP - magnetic detent

1шт.

20

193-558

SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"

- Fillister head with lock washer, 1/4" - 20 NC x 7/8", plated

2шт.

21

N8950

VALVE

ASSEMBLY - circuit relief, parts list Fig. 8-80

1шт.

22

N8958

VALVE

ASSEMBLY - circuit relief and anticavitation, parts list Fig. 8-82

1шт.

23

N7029

SCRAPER

WIPER - spool

1шт.

24

N7030

LARGE PLATE

PLATE - retainer, inner

1шт.
