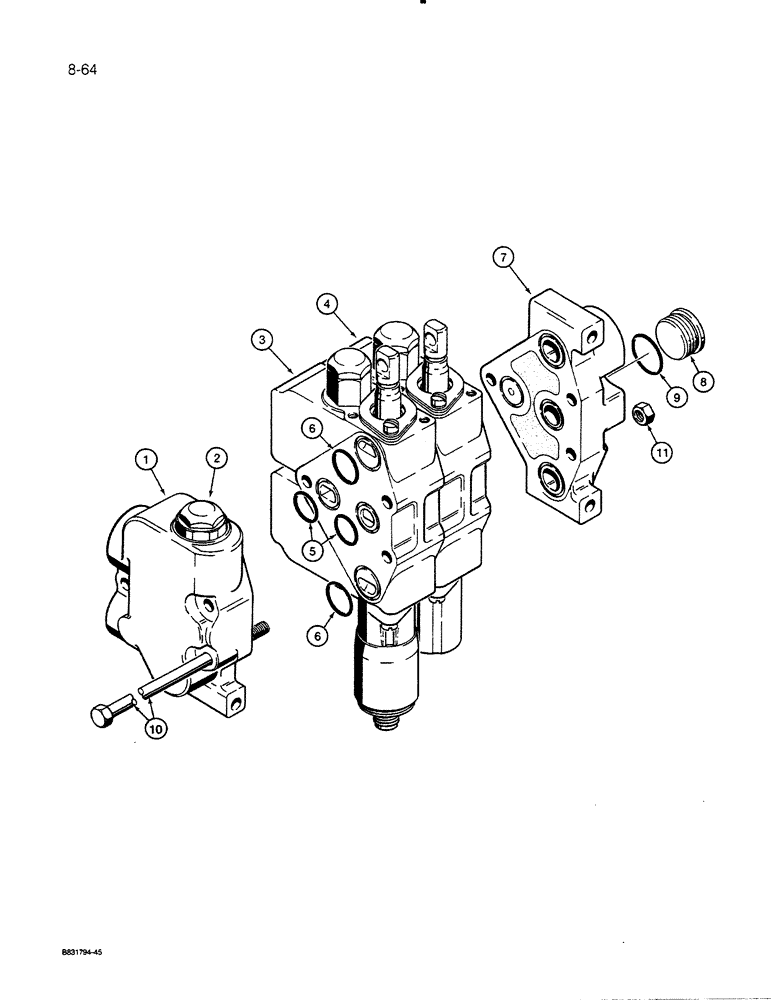

Запчасти Case 455C (8-64) - TWO SPOOL CONTROL VALVE, LOADER MODELS (08) - HYDRAULICS

R47434

VALVE

CONTROL VALVE ASSEMBLY - two spool, loader models, Includes: Ref. 1 - 11

1шт.

The control valve assembly part number is stamped on the inlet-outlet section.

1шт.

1

N8942

VALVE BLOCK

SECTION - inlet-outlet

1шт.

2

N8191

VALVE

MAIN RELIEF VALVE ASSEMBLY - parts list Fig. 8-70

1шт.

3

N8945

VALVE

SECTION ASSEMBLY - bucket tilt, parts list Fig. 8-74

1шт.

4

N8944

VALVE

SECTION ASSEMBLY - lift, parts list Fig. 8-76

1шт.

5

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- between sections, 13/16" (21 mm) ID

6шт.

6

376769R1

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

- between sections, 15/16" (24 mm) ID

6шт.

7

N8946

COVER

ASSEMBLY - end, Includes: Ref. 8 and 9

1шт.

8

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

cover, Includes Ref 9 Hex Soc, 1 3/16"-12 ORB

1шт.

9

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug

1шт.

10

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

Tie (Replaces tie bolt with fine threads used on some valves) Hex, 3/8"-16 x 6", G5

3шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Replaces nut with fine threads used on some valves 3/8"-16, G5

3шт.
