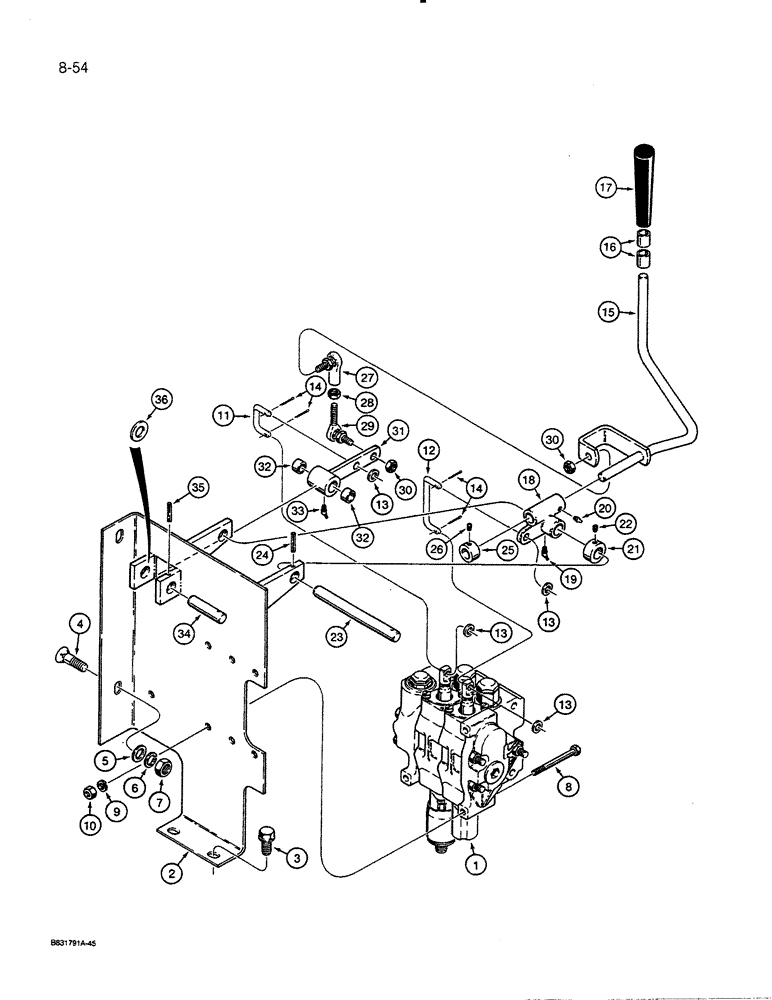

Запчасти Case 455C (8-54) - EQUIPMENT CONTROL VALVE AND LEVERS, ONE CONTROL LEVER, TWO SPOOL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - two spool, parts list Fig. 8-64

1шт.

2

R47023

LARGE PLATE

BRACKET - control valve mounting

1шт.

3

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

4

111-541

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

95-8

WASHER,1/2"

flat 1/2"

2шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

10

9635082

NUT,5/16" - 18, Gr 5

3шт.

11

R49010

LINK

- short, control valve bucket spool

1шт.

12

R48995

LINK

- long, control valve lift spool

1шт.

13

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

14

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

4шт.

15

R53772

LEVER ASSY.

CONTROL LEVER - equipment

1шт.

16

D38662

RING

BUSHING - knob

2шт.

17

D37550

KNOB

- control lever

1шт.

18

R48311

ROCKER LEVER

BELLCRANK - control lever

1шт.

19

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF, Replaces 90 degree grease fitting used in production on some models

1шт.

21

R42435

COLLAR

ASSEMBLY - locking, Includes: Ref. 22

1шт.

22

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

23

R47021

SHAFT

- bellcrank

1шт.

24

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

25

D46079

COLLAR

- locking, control lever

1шт.

26

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- hex socket, cup point, 1/4" - 20 NC x 1/4"

1шт.

27

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - female

1шт.

28

129-122

NUT,5/16"-24, G5

1шт.

29

R47939

ROD

BALL JOINT - male

1шт.

30

131-1231

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

2шт.

31

R47008

LEVER ASSY.

LEVER ASSEMBLY - ball joint, lower, Includes: Ref. 32 and 33

1шт.

32

R30880

BUSHING

- lever

2шт.

33

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" - 28 NF taper

1шт.

34

R47020

SHAFT

- lower lever

1шт.

35

138-2022

PIN,5/32" x 1 1/4", Coiled

1шт.

36

D44330

SHIM,.031" Thk

Ball joint lever .031" Thk

1шт.
