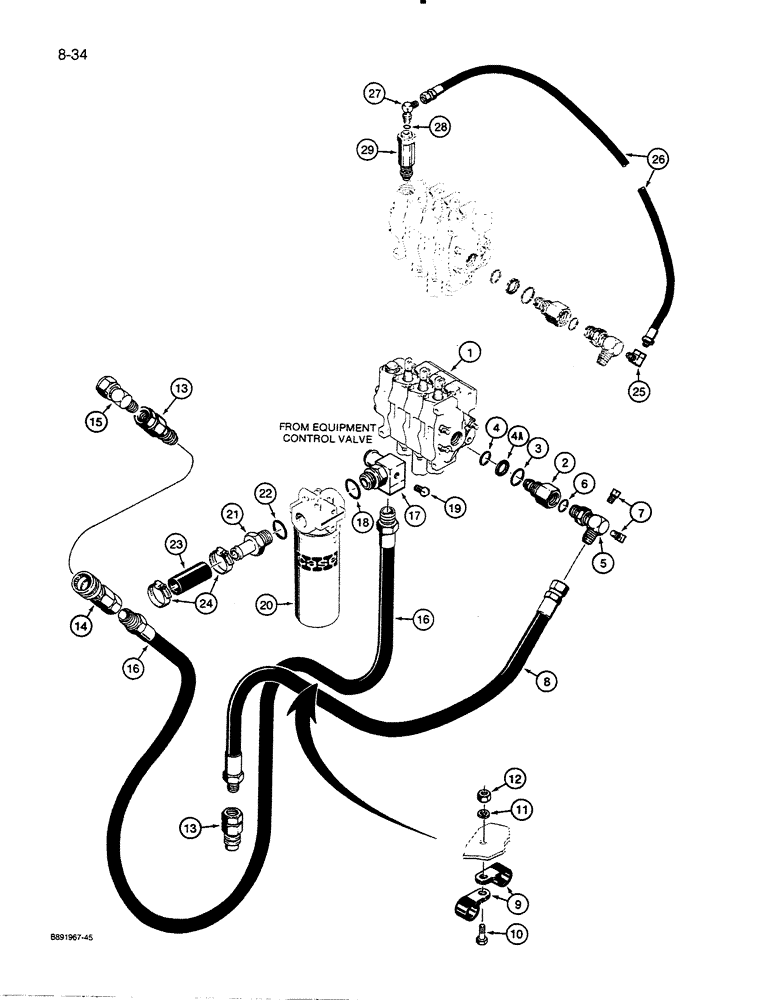

Запчасти Case 455C (8-34) - BACKHOE CONNECTING HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-64 - 8-68

1шт.

2

R48066

ADAPTER

- control valve, Includes: 3 - 4A

1шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- large, outer

1шт.

4

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- small, inner

1шт.

4a

N13178

O-RING,0.69" ID x 0.055" Width

BACKUP RING - small O-ring

1шт.

5

D35472

FITTING

ELBOW - 90 degree, special, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1-2шт.

8

D52667

HOSE

- 36" (914 mm) long, supply

1шт.

9

D34033

CLAMP

- hoses

2шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list Fig. 8-36

2шт.

14

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Fig. 8-36

1шт.

15

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 degree, swivel

1шт.

16

R43873

HOSE

- 72" (1829 mm) long, return

1шт.

17

R47948

TEE

- at filter, special, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

19

221-1849

PLUG

- hex socket head, 1/8" NPT

1шт.

20

R50518

FILTER

ASSEMBLY - equipment hydraulic oil, parts list Fig. 6-86

1шт.

21

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Stem, Filter, Includes Ref. 22 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

22

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

23

R13912

HOSE,25.40 mm ID x 133.40 mm ID, SAE 100R3

- return to hydraulic reservoir 25.40 mm ID x 133.40 mm ID, SAE 100R3

1шт.

24

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose, adjustable

2шт.

25

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Parts Used on Dozer Models Only

1шт.

26

R50105

HOSE ASSY.

HOSE - 17" (432 mm) long, parts used on dozer models only

1шт.

27

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, used on dozer models only, Includes: Ref. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

29

R50181

VALVE, PRESSURE RELI

RELIEF VALVE - dual stage, main relief valve section of equipment control valve, parts list Fig. 8-72, parts used on dozer models only

1шт.
