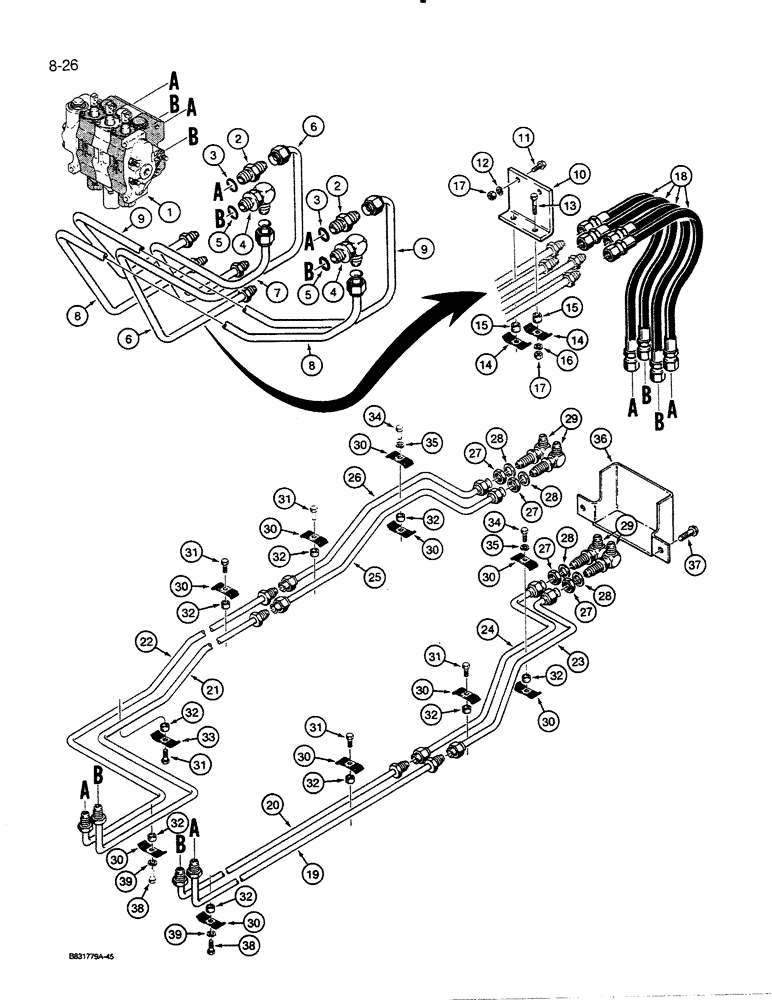

Запчасти Case 455C (8-26) - DOZER TILT AND ANGLE HYDRAULIC CIRCUITS, CONTROL VALVE TO GRILLE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-66 or 8-68

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, upper ports, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D36934

FITTING

ELBOW - 90 degree, lower ports, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

R46950

TUBE,0.5" OD

- tilt, at control valve, A port

1шт.

7

R46952

TUBE,0.5" OD

- tilt, at control valve, B port

1шт.

8

R46948

TUBE

- angle, at control valve, B port

1шт.

9

R46946

TUBE,0.5" OD

- angle, at control valve, A port

1шт.

10

R50332

BRACKET

- tube support

1шт.

11

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

R25528

CLAMP

- tubes

2шт.

15

D76208

SPACER

- clamp

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

18

5120027

- 22" (559 mm) long

4шт.

19

R39990

TUBE,0.5" OD

- intermediate, tilt, from A port

1шт.

20

R39988

TUBE,0.5" OD

- intermediate, tilt, from B port

1шт.

21

R40810

TUBE,0.5" OD

- intermediate, angle, from B port

1шт.

22

R40812

TUBE,0.5" OD

- intermediate, angle, from A port

1шт.

23

R39980

TUBE,0.5" OD

- to grille, tilt, from A port

1шт.

24

R39982

TUBE,0.5" OD

- to grille, tilt, from B port

1шт.

25

R39986

TUBE,0.5" OD

- to grille, angle, from B port

1шт.

26

R39984

TUBE,0.5" OD

- to grille, angle, from A port

1шт.

27

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

28

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

4шт.

29

R29758

FITTING

ELBOW - 90 degree, bulkhead

4шт.

30

R25528

CLAMP

- tubes

10шт.

31

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange head, 3/8" - 16 NC x 1-1/4", grade 8, Teflon coated

5шт.

32

D76208

SPACER

- clamp

9шт.

33

R25528

CLAMP

- angle tubes

1шт.

34

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

R34008

GUARD

- elbows, at grille

1шт.

37

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, , Replaces regular hex head bolt, lock washer and flat washer used in production on some models Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

38

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Used with Ref. 39 lock washer in place of flange head bolt used in production on some models Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
