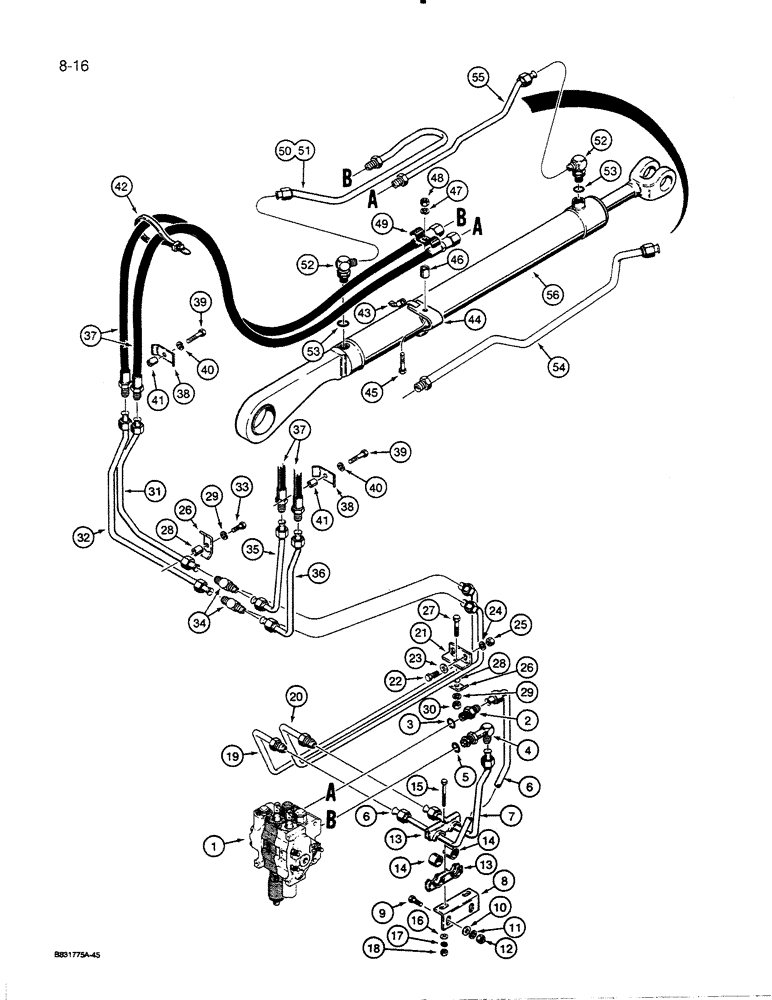

Запчасти Case 455C (8-16) - LOADER BUCKET TILT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-64 - 8-66

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, A port, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D25136

FITTING

ELBOW - 90 degree, long, B port, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

R48151

TUBE,0.625" OD

- from control valve, A port

1шт.

7

R48149

TUBE,0.625" OD

- from control valve, B port

1шт.

8

R47829

BRACKET

- tube clamps

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

R41740

CLAMP

- tubes, includes both halves

1шт.

14

R41747

BUSHING

- tubes

2шт.

15

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

16

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

R48147

TUBE

- under floor plates, left-hand, from A port

1шт.

20

R48145

TUBE,0.625" OD

- under floor plates, right-hand, from B port

1шт.

21

R48182

SUPPORT

BRACKET - tube support, on firewall

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

26

D40236

CLAMP

- tubes

2шт.

27

113-2228

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

- hex head, 3/8" - 16 NC x 1-5/8", plated

1шт.

28

D76209

SPACER

- clamp

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

R48133

TUBE,0.625" OD

- crossover, left-hand, upper, A port

1шт.

32

R48141

TUBE,0.625" OD

- crossover, left-hand, lower, B port

1шт.

33

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

1шт.

34

218-595

TEE,7/8"-14, 37 Degree

- male

2шт.

35

R48139

TUBE,0.625" OD

- crossover, right-hand, upper, A port

1шт.

36

R48143

TUBE

- crossover, right-hand, lower, B port

1шт.

37

D28111

HOSE ASSY.

HOSE - to cylinders, 39" (991 mm) long

4шт.

38

R36022

CLAMP

- hoses, on loader cowl

2шт.

39

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

- clamp

2шт.

42

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

43

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - tube support to cylinder

2шт.

44

R48180

SUPPORT

- tubes

2шт.

45

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

46

R54399

SPACER

- clamp

2шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

49

R15257

CLAMP

- tubes

2шт.

50

R48125

TUBE,0.625" OD

- to closed end of tilt cylinder, right-hand

1шт.

51

R48127

TUBE,0.625" OD

- to closed end of tilt cylinder, left-hand

1шт.

52

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 53

4шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

54

R51157

TUBE,0.625" OD

- to rod end of tilt cylinder, right-hand

1шт.

55

R48131

TUBE,0.625" OD

- to rod end of tilt cylinder, left-hand

1шт.

56

G106630

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket tilt, parts list Fig. 8-40

2шт.
