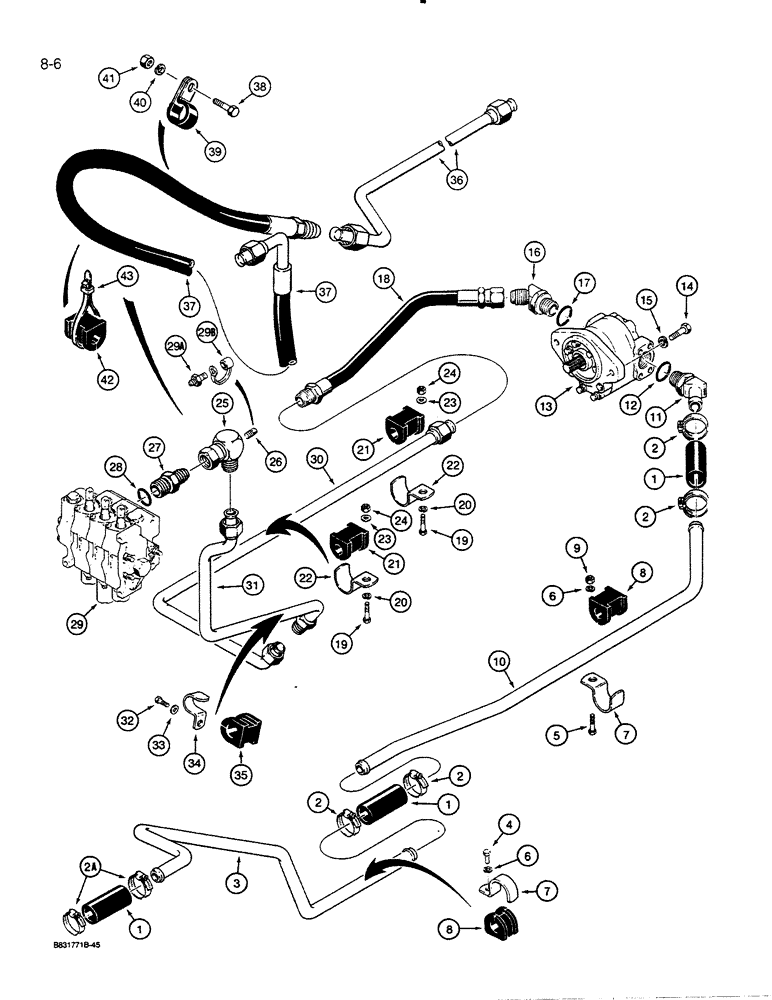

Запчасти Case 455C (8-06) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND CONTROL VALVE (08) - HYDRAULICS

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

3шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

4шт.

2a

214-190

HOSE CLAMP,1" - 1-7/8", HD Worm

CLAMP - hose

2шт.

3

R47059

TUBE,31.75 - 33.35 mm OD

- from hydraulic reservoir

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

5

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

D68845

MOUNTING CLIP

CLAMP - tubes

2шт.

8

D67298

INSULATOR

- rubber, tubes

2шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

R47058

TUBE,31.75 - 33.35 mm OD

- to pump

1шт.

11

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj., Pump inlet, Incl. Ref. 12 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

12

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk, Elbow

1шт.

13

D41390

PUMP

ASSEMBLY - equipment, parts list Fig. 8-12

1шт.

The coupler between D41390 pump and crankshaft is D90883. See Figure 2-44

1шт.

13

DR41390

REMAN-HYD PUMP

Remanufactured, Hydraulic Pump

1шт.

13

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Hydraulic Pump

1шт.

13

87644746R

REMAN-HYD PUMP

450C, 455C

1шт.

13

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, pump outlet, Includes: Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

R50103

HOSE

- from pump, 15" (381 mm) long

1шт.

19

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

D67297

BLOCK

INSULATOR - rubber, tubes

2шт.

22

D68846

CLAMP

- tubes, may have slots or holes

2шт.

23

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, use with Ref. 22 clamps that are slotted, if used

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

R47069

ELBOW

- 90 degree, swivel, special

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, if used

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, Incl. Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

29

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see Figs. 8-64 - 8-66

1шт.

29a

H434164

COUPLING

COUPLER - diagnostic, if used

1шт.

29b

H434163

DUST CAP

CAP - dust, if used

1шт.

30

R47061

TUBE,1" OD

- intermediate, from pump, used on models with tube to control valve

1шт.

31

R47053

TUBE,1" OD

- to control valve

1шт.

32

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Used on models with tube to control valve Hex, 3/8"-16 x 5/8", G5, Full Thd

1шт.

33

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, replaces lock washer used on some models, used on models with tube to control valve

1шт.

34

D68846

CLAMP

- tube at control valve

1шт.

35

D67297

BLOCK

INSULATOR - rubber, tube, used on models with tube to control valve

1шт.

36

R51932

TUBE ASSY.,1" OD

TUBE - intermediate, from pump, used on models with hose to control valve

1шт.

37

R51952

HOSE ASSY.

HOSE - to control valve

1шт.

38

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used on models with hose to control valve Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

39

84183C1

CLAMP

- hose, bolts to engine frame, used on models with hose to control valve

1шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used on models with hose to control valve 1/2"

1шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used on models with hose to control valve 1/2"-13, G5

1шт.

42

D67298

INSULATOR

- rubber, used on models with hose to control valve

1шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, hose to tube, used on models with hose to control valve

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

Used on models with hose to control valve 1.25" ID x 180.00", SAE 100R3

1шт.
