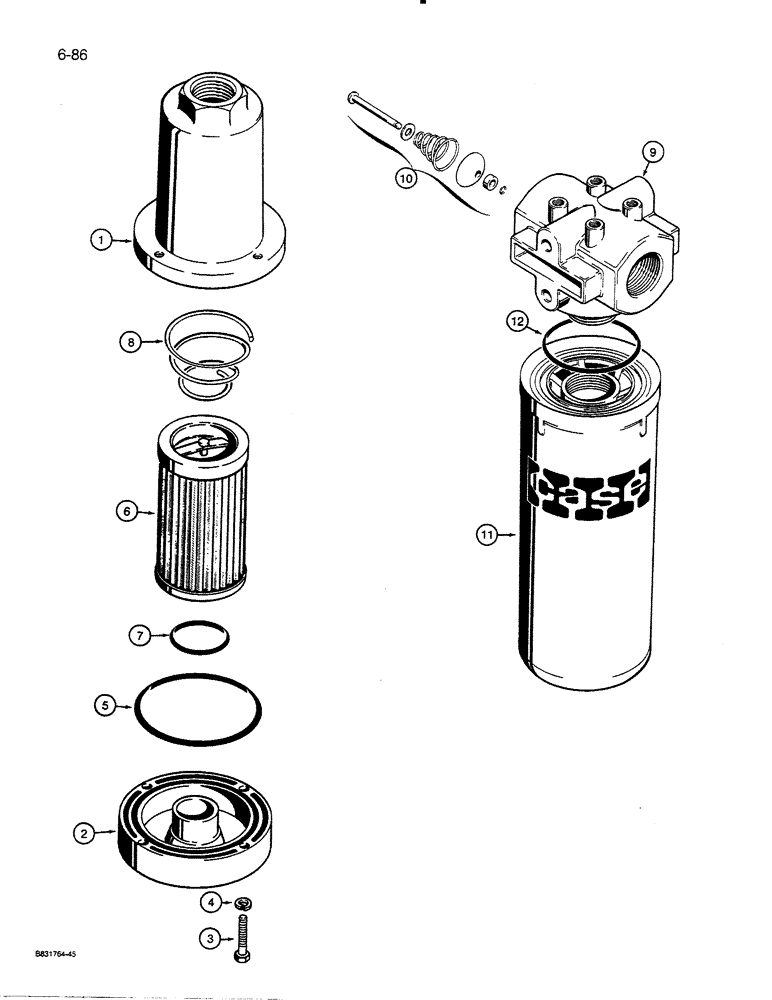

Запчасти Case 455C (6-86) - HYDRAULIC OIL FILTERS, D35144 TRANSMISSION OIL FILTER, SUCTION LINE (06) - POWER TRAIN

D35144

FILTER

FILTER ASSEMBLY - transmission oil, suction line, Includes: Ref. 1 - 8

1шт.

1

D37033

HOUSING

- filter

1шт.

2

D37034

HEAD

- filter

1шт.

3

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

4шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

5

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

- housing

1шт.

6

D37035

FILTER, ELEMENT

ELEMENT - filter, Includes: Ref. 7

1шт.

7

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- element

1шт.

8

D37036

SPRING

- element

1шт.

R50518

FILTER

ASSEMBLY - hydraulic oil, R50518 hydraulic oil filter, Includes: Ref. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

HEAD - filter, R50518 hydraulic oil filter

1шт.

REF: #9 FILTER HEAD DOES NOT HAVE SIGHT WINDOW IN IT. THE ILLUSTRATION ON FIGURE 6-86 IS INCORRECT FOR THIS PART NUMBER.

1шт.

10

NSS

NOT SOLD SEPARAT

BYPASS VALVE - filter, R50518 hydraulic oil filter

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, R50518 hydraulic oil filter, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - filter, R50518 hydraulic oil filter

1шт.

12

N9026

O-RING

- element to head, R50518 hydraulic oil filter

1шт.
