Запчасти Case 455C (6-84) - TRANSMISSION CHARGING PUMP ASSEMBLY, PUMP MOUNTING AND DRIVE GEAR (06) - POWER TRAIN

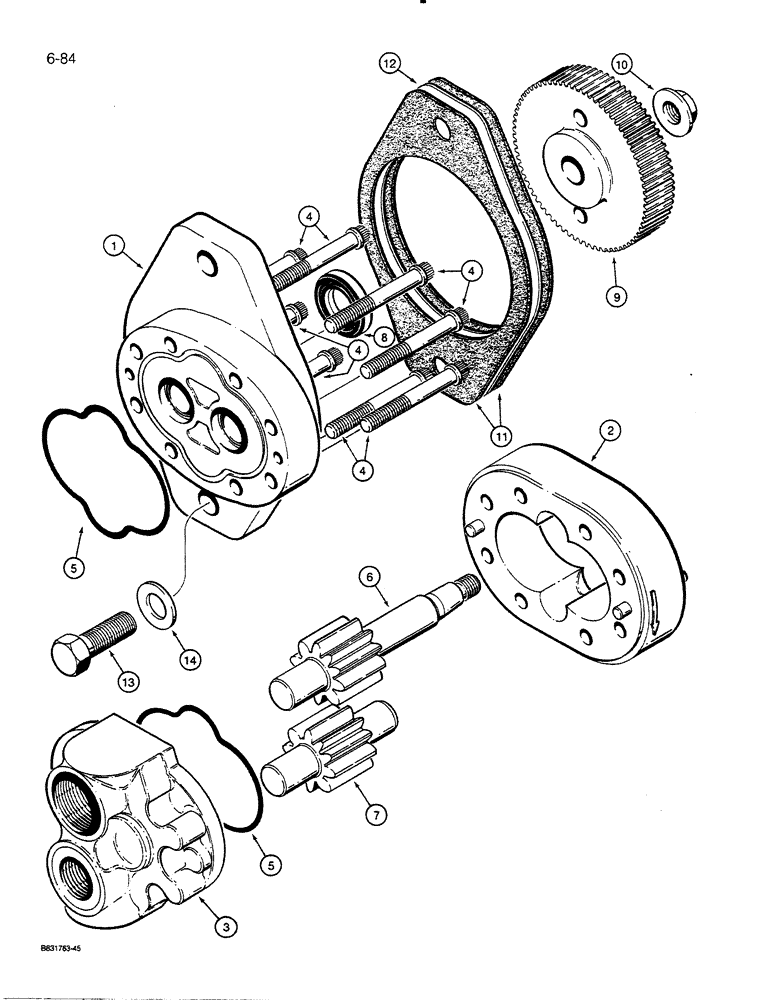

Схема запчастей Case 455C - (6-84) - TRANSMISSION CHARGING PUMP ASSEMBLY, PUMP MOUNTING AND DRIVE GEAR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

R48598

PUMP

ASSEMBLY - transmission charging, Includes: Ref. 1 - 8

1шт.

1

N8886

COVER

- drive shaft end

1шт.

2

N8887

BODY

HOUSING - gears

1шт.

3

N8885

COVER

- port end

1шт.

4

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - Ferry head, 5/16" - 18 NC x 2-3/4", grade 8

8шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

- covers

2шт.

6

N8889

GEAR

DRIVE GEAR - pump

1шт.

7

N8888

GEAR

DRIVEN GEAR - pump

1шт.

8

H83733

SEAL

- drive gear shaft

1шт.

9

J905606

PINION

GEAR - pump drive

1шт.

10

J904828

NUT

- special, flange, pump shaft

1шт.

11

A77441

GASKET

- pump, use if shaft end cover has bolt counterbore of .578" (15 mm)

2шт.

REF: # 11 GASKETS COUNTERBORE MEASUREMENTS REFER TO THE SPOT FACE DEPTH OF AREA AROUND THE 8 BOLT HOLES. PER N8886 PRINT REV. "H".

1шт.

11

N14258

GASKET

- pump, use if shaft end cover has bolt counterbore of .656" (17 mm)

2шт.

12

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

- pump mounting

1шт.

13

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex head, 12 mm - 1.75 x 35 mm (8.8), plated

2шт.

14

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 1/2", hardened, plated

2шт.

Выбрано товаров: 17
