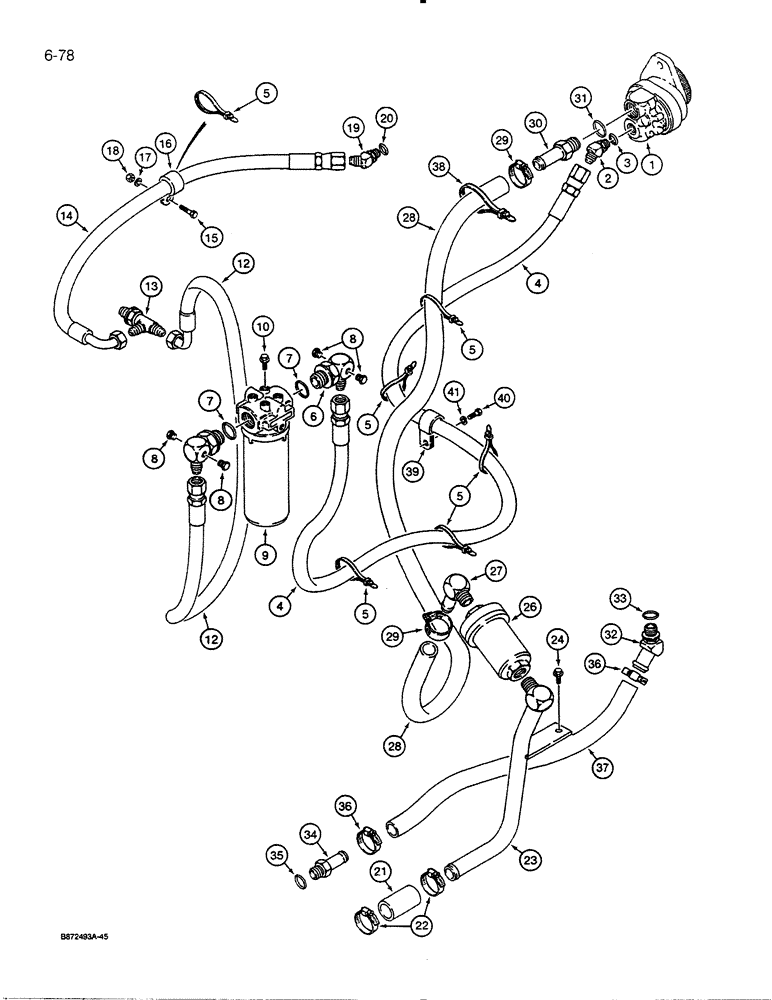

Запчасти Case 455C (6-78) - CRAWLER HYDRAULIC CIRCUIT, MODELS WITH SUCTION FILTER, USED ON P.I.N. GBE 0001501 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
2
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 45 degree, adjustable, Incl. Ref 3
1шт.
10
FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated
3шт.
11
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Used with filter mounting bolt, no longer used, not required, not shown 3/8"
3шт.
13
218-5241
TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- adjustable, at transmission control valve, see Fig. 6-58 for transmission control valve hydraulic circuits
1шт.
15
113-208
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
If used Hex, 3/8"-16 x 1 1/4", G5, Full Thd
1шт.
19
218-5137
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 45 degree, adjustable, Incl. Ref 20
1шт.
21
R13911
HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3
- cut from S118465 hose, see below, at transmission, suction line tube 31.80 mm ID x 101.60 mm ID, SAE 100R3
1шт.
23
R50600
TUBE,1.25" OD
- transmission to filter, suction line, bracket bolts to main frame
1шт.
24
FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd
BOLT - hex flange head, 3/8" - 16 NC x 3/4", grade 8, Teflon coated
1шт.
25
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Used with tube flange mounting bolt, no longer used, not required, not shown 3/8"
1шт.
26
D35144
FILTER
FILTER ASSEMBLY - suction line, mounts parallel to width of tractor, parts list Fig. 6-86
1шт.
27
217-136
ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF
STEM FITTING - 90 degree, at suction filter
1шт.
30
R56732
CONNECTION,ELECTRIC
STEM FITTING - at charging pump, Includes: Ref. 31
1шт.
31
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- stem fitting
1шт.
S118465
HOSE,1.25" ID x 180.00", SAE 100R3
- Bulk 1.25" ID x 180.00", SAE 100R3
1шт.
32
R56731
CONNECTION,ELECTRIC
STEM FITTING - hose, 45 degree, at torque converter drain, Includes: Ref. 33
1шт.
33
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting
1шт.
34
217-390
FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB
STEM FITTING - hose, straight, 1-1/16" - 12 NF threads at transmission, Includes: Ref. 35
1шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Stem fitting
1шт.
37
D30525
HOSE
- 29" (737 mm) long, cut from bulk hose, see Parts Substitution List for bulk hose options, torque converter, Serial Range: drain-transmission
1шт.
39
D20302
CLAMP,7/8", Insul, 3/8" Bolt
- suction hose, Ref. 4, from charging pump to filter, bolts to main frame
1шт.
