Запчасти Case 455C (6-60) - TRANSMISSION CONTROL VALVE ASSEMBLY, USED THRU P.I.N. 3080911 (06) - POWER TRAIN

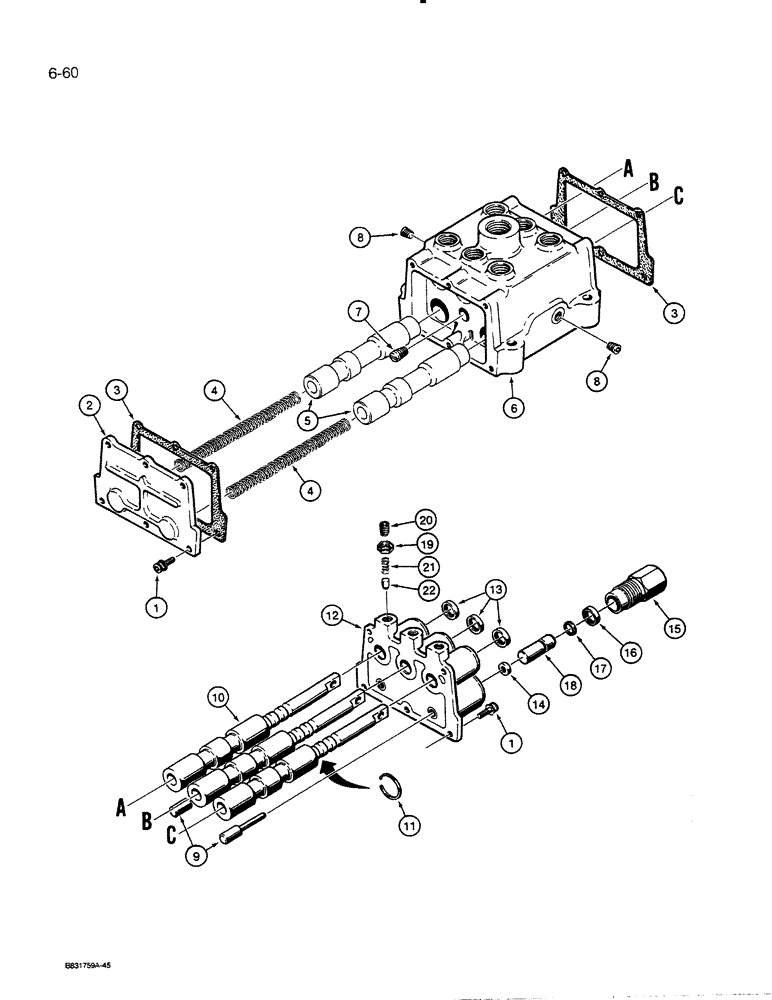

Схема запчастей Case 455C - (6-60) - TRANSMISSION CONTROL VALVE ASSEMBLY, USED THRU P.I.N. 3080911 (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

G106165

VALVE

CONTROL VALVE ASSEMBLY - transmission, Includes: Ref. 1 - 22

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW - socket head, with external tooth lock washer, 1/4" - 28 NF x 2-5/8"

11шт.

2

R21384

COVER

- rear

1шт.

3

35665

GASKET

- covers

2шт.

4

71125

SPRING

- clutch cutout spool

2шт.

5

G106650

SPOOL

- clutch cutout

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

7

221-841

PLUG

- hex socket, 1/4 inch PT, do not use a plated plug

1шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT, do not use a plated plug

2шт.

9

71141

ROD

- push, clutch cutout spool

2шт.

10

G107659

ROD

SPOOL ASSEMBLY - shift, Includes: Ref. 11

3шт.

11

G107637

RING, SNAP

RETAINING RING - shift spool

1шт.

12

G104207

COVER

ASSEMBLY - front, Includes: Ref. 13 and 14

1шт.

13

G105700

OIL SEAL

- double lip, shift spool

3шт.

14

51200266

SEAL

- rod, small, lower

2шт.

15

A50455

HOUSING

- piston, Includes: Ref. 16

2шт.

16

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- piston housing

1шт.

17

51200265

RING

O-RING - square section, piston

2шт.

18

A50457

PISTON

- clutch cutout

2шт.

19

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, 3/8"-16 NC

3шт.

20

G104208

SET SCREW

- hex socket, oval point, 3/8" - 16 NC x 1/2", sealant coated

3шт.

21

71119

SPRING

- detent

3шт.

22

71120

VALVE

PIN - spool detent

3шт.

Выбрано товаров: 23
