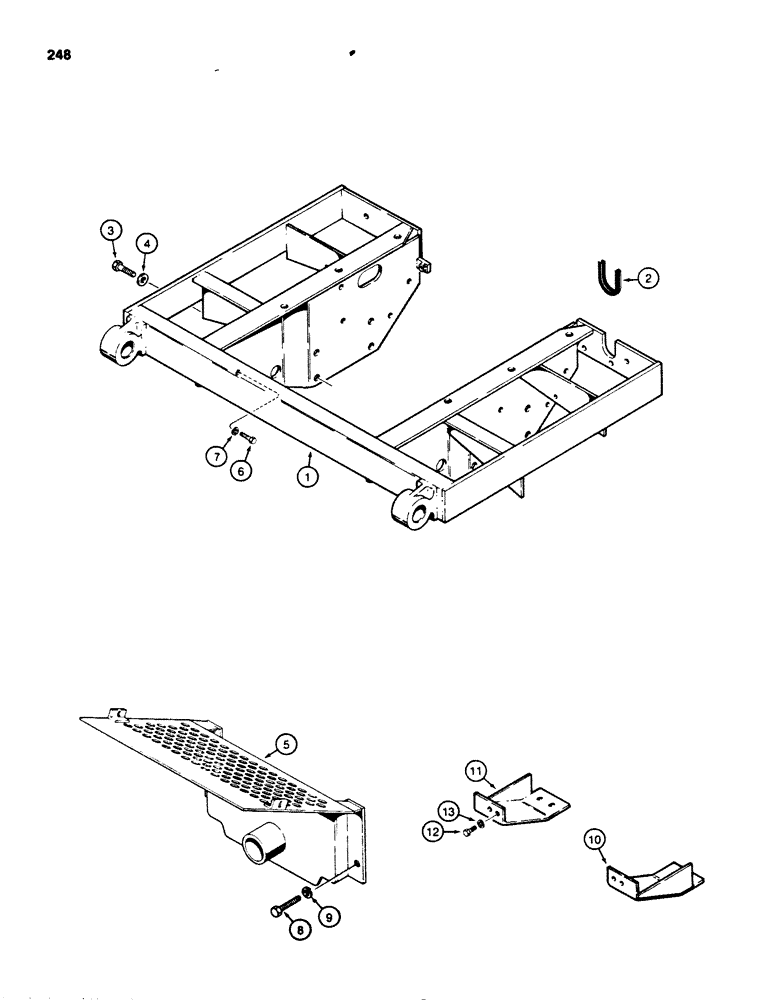

Запчасти Case 455B (248) - SEAT AND TANK FRAME AND REAR TRANSMISSION GUARD (05) - UPPERSTRUCTURE CHASSIS

1

R43338

CHASSIS

FRAME - seat and tank

1шт.

2

D33500

LINING

TRIM - edge, 7" (178 mm) long

1шт.

3

26-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

use with loctite 242 (blue) Hex, 3/4"-10 x 1 1/2", G8

8шт.

4

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened, 3/4"

8шт.

5

R41059

GUARD - transmission, rear

1шт.

6

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

R40482

GUARD - loader lift hydraulic, right-hand

1шт.

11

R40483

GUARD - loader lift hydraulic, left-hand

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.
