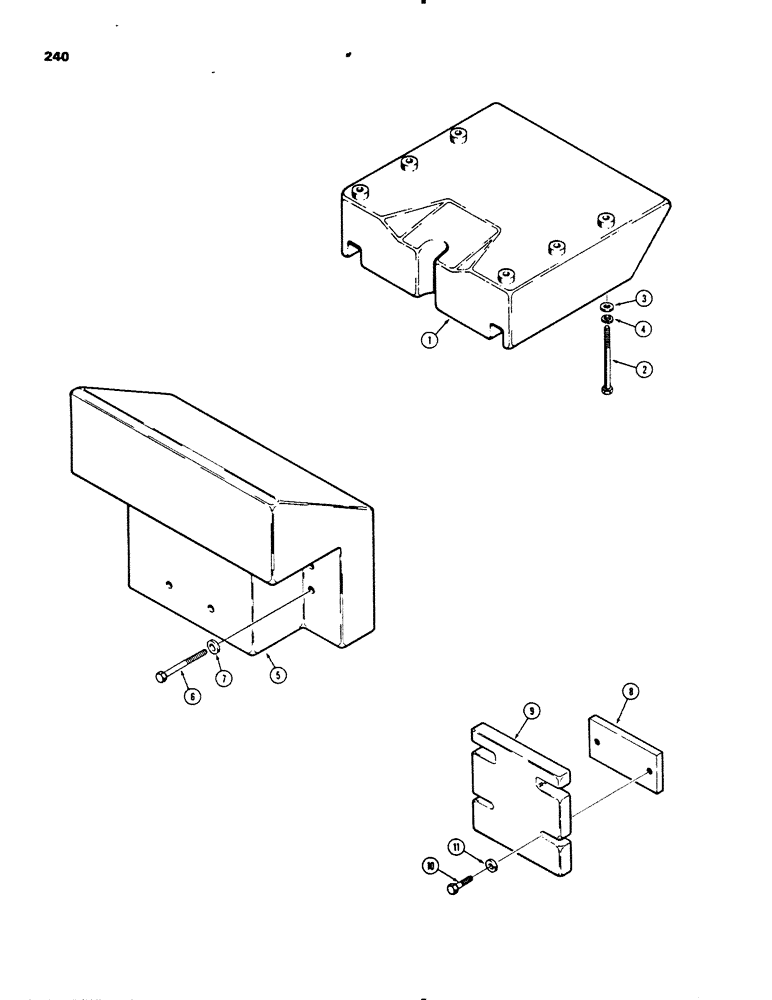

Запчасти Case 455B (240) - COUNTERWEIGHTS, FRONT AND REAR COUNTERWEIGHTS (05) - UPPERSTRUCTURE CHASSIS

1

D34625

WEIGHT

COUNTERWEIGHT - 1000 lb. (454 kg), loader models used on models without turbocharger only

1шт.

1

R46853

WEIGHT

COUNTERWEIGHT - 1000 lb. (454 kg), loader models, used on models with turbocharger only

1шт.

1

R44215

WEIGHT

COUNTERWEIGHT - 1000 lb. (454 kg), dozer and drawbar models, used on models without turbocharger only, not shown

1шт.

1

R46854

WEIGHT

COUNTERWEIGHT - 1000 lb. (454 kg), dozer and drawbar models, used on models with turbocharger only, not shown

1шт.

2

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex head, 5/8" -11 NC x 7-1/2", loader models

6шт.

2

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex head, 5/8" -11 NC x 6", dozer models

6шт.

3

195-41

WASHER,5/8"

6шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

R41475

WEIGHT

COUNTERWEIGHT - rear, 1600 lb. (726 kg)

1шт.

6

13-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

7

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- special

6шт.

8

R32850

BLOCK

PLATE - mount, bucket counterweight backhoe model only

4шт.

9

R43133

BALANCER

COUNTERWEIGHT - 67.1 lb. (30.4 kg), bucket backhoe model only

4шт.

10

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Bucket counterweight backhoe models only Hex, 3/4"-10 x 2 1/4", G5

8шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, bucket counterweight backhoe models only

8шт.
