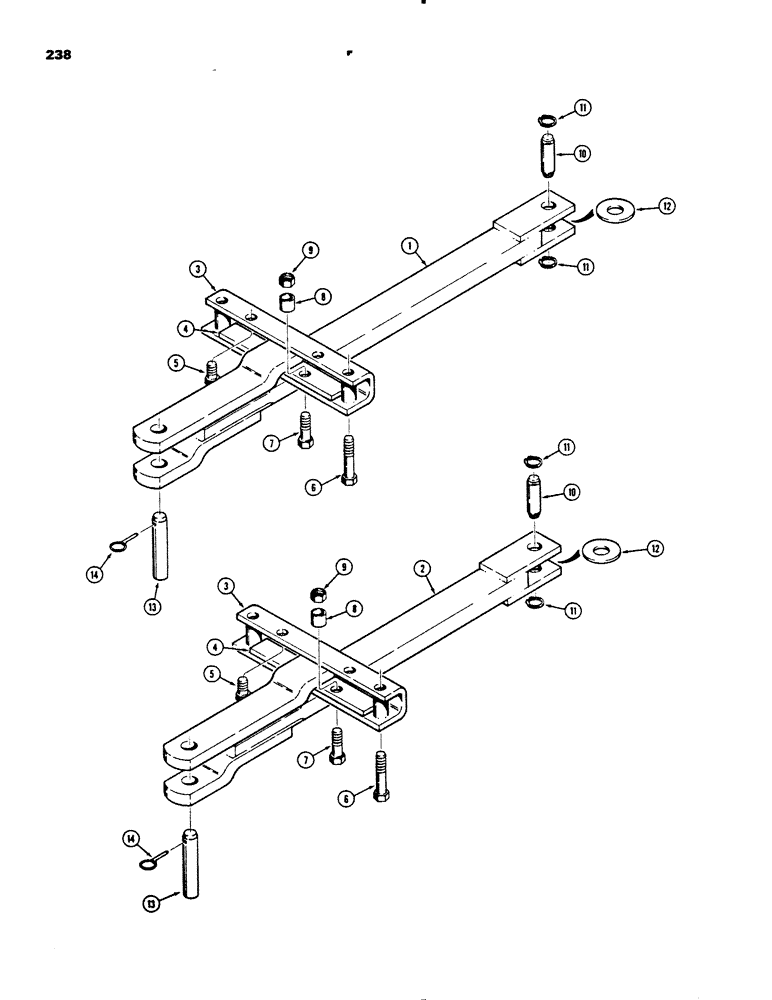

Запчасти Case 455B (238) - DRAWBARS, USED ON MODELS WITH MODEL 19 WINCH (05) - UPPERSTRUCTURE CHASSIS

1

R37296

DRAWBAR

- loader models only

1шт.

2

R37297

DRAWBAR

- drawbar and dozer models only

1шт.

3

D38542

GUIDE - drawbar

1шт.

4

D38540

PLATE - wear

1шт.

5

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

2шт.

6

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- hex, 3/4" -10 NC x 3-3/4"

2шт.

7

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

8

T29173

BUSHING

- stop, drawbar

2шт.

9

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, lock, 3/4" -10 NC

2шт.

10

D46467

PIN

- mounting, drawbar

1шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

12

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4"

1шт.

13

D35202

PIN

- mounting, equipment

1шт.

14

D33805

PIN

- self-retaining

1шт.
