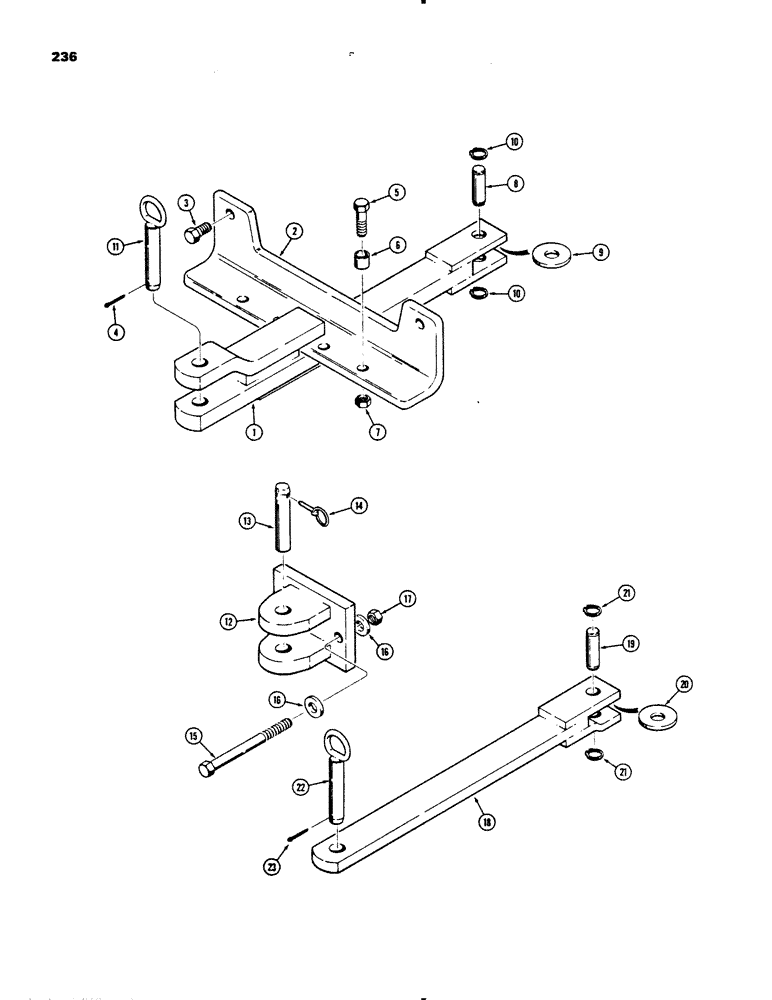

Запчасти Case 455B (236) - DRAWBARS, MODELS WITHOUT REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

R37272

BAR

DRAWBAR - drawbar and dozer models only

1шт.

2

R39425

GUIDE

- drawbar

1шт.

3

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4" -10 NC x 1-1/2"

2шт.

4

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

5

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

6

T29173

BUSHING

- stop

2шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

D46467

PIN

- mounting

1шт.

9

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4"

1шт.

10

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

11

R24105

DRAWBAR

PIN - R37272 drawbar

1шт.

12

R39904

DRAWBAR

- loader, counterweight model

1шт.

13

D35202

PIN

- R39904 drawbar

1шт.

14

D33805

PIN

- self-retaining

1шт.

15

15-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- hex, 3/4" -10 NC x 9"

2шт.

16

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- hardened

4шт.

17

25-1012

NUT,3/4"-10, G5

2шт.

18

R37281

DRAWBAR

- loader models, used w/ ripper

1шт.

18

R37282

BAR

DRAWBAR - dozer models, used w/ ripper

1шт.

19

D46467

PIN

- mounting, used on models w/ ripper

1шт.

20

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-1/4", used on models w/ ripper

1шт.

21

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, used on models w/ ripper #125, Ext

2шт.

22

R24105

DRAWBAR

PIN - mounting, equipment, used on models w/ ripper

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Used on models w/ ripper 1/4" x 2"

1шт.
