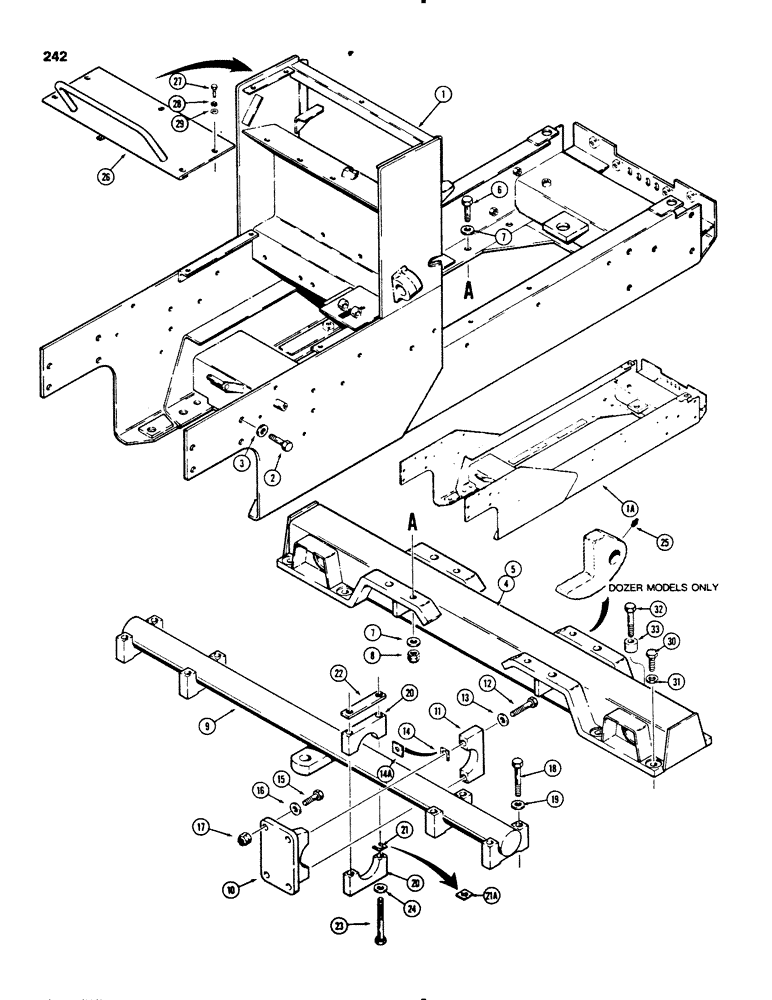

Запчасти Case 455B (242) - ENGINE FRAME AND CROSSMEMBERS (04) - UNDERCARRIAGE

1

R45096

FRAME - engine, dozer and drawbar models

1шт.

1a

R39825

FRAME - engine, loader models

1шт.

2

113-2712

BOLT,Locking, 3/4" - 10 x 1-3/4", Gr 8, Full Thd

- hex head, 3/4" -10 NC x 1-3/4"

8шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

4

R39032

CROSSMEMBER - front, 52" (1321 mm) gauge dozer and drawbar models

1шт.

4

R43517

MEMBER

CROSSMEMBER - front, 64" (1626 mm) gauge (high flotation) dozer models only, not shown

1шт.

5

R27990

CROSSMEMBER - front, loader models

1шт.

6

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8

4шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

8

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

9

R24581

BAR

CROSSMEMBER - rear, loader and 52" (1321 mm) gauge dozer models

1шт.

9

R41279

BAR

CROSSMEMBER - rear, 64" (1626 mm) gauge (high flotation) dozer models only

1шт.

10

D35177

CLAMP

- rear

2шт.

11

D34663

CLAMP

- front

2шт.

12

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

- hex head, 7/8" -9 NC x 4"

4шт.

13

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- hardened, 7/8"

4шт.

14

D33982

BUSHING

SPACER - clamp, no longer used, order R28516 spacer

2шт.

14a

R28516

SPACER

- clamp

2шт.

15

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

8шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

17

131-657

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4" -10 NC

8шт.

18

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

8шт.

20

D34663

CLAMP

- rear crossmember

4шт.

21

D33982

BUSHING

SPACER - clamp, no longer used, order R28516 spacer

2шт.

21a

R28516

SPACER

- clamp

2шт.

22

D34722

BLOCK

- spacer, clamp

2шт.

23

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex head, 7/8" -9 NC x 7-1/2"

4шт.

24

D34667

WASHER,23.02mm ID x 38.1mm OD x 3.57mm Thk

- hardened, 7/8"

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, dozer models only

2шт.

The lug shown to the left of Ref. 25 grease zerk is R43511. R43511 comes with 2 pcs. D30930 bushing.

1шт.

26

R40832

COVER AND HANDHOLD - dozer and drawbar

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

28

92-6

LOCK WASHER,3/8"

5шт.

29

195-25

WASHER,3/8"

- flat, 3/8"

5шт.

30

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

6-8шт.

31

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened, 3/4"

6-8шт.

32

26-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4" -10 NC x 3, G8, 64" (1626 mm) gauge dozer models only

2шт.

33

R30398

SPACER

- mounting, front crossmember, 64" (1626 mm) gauge dozer models only

2шт.
