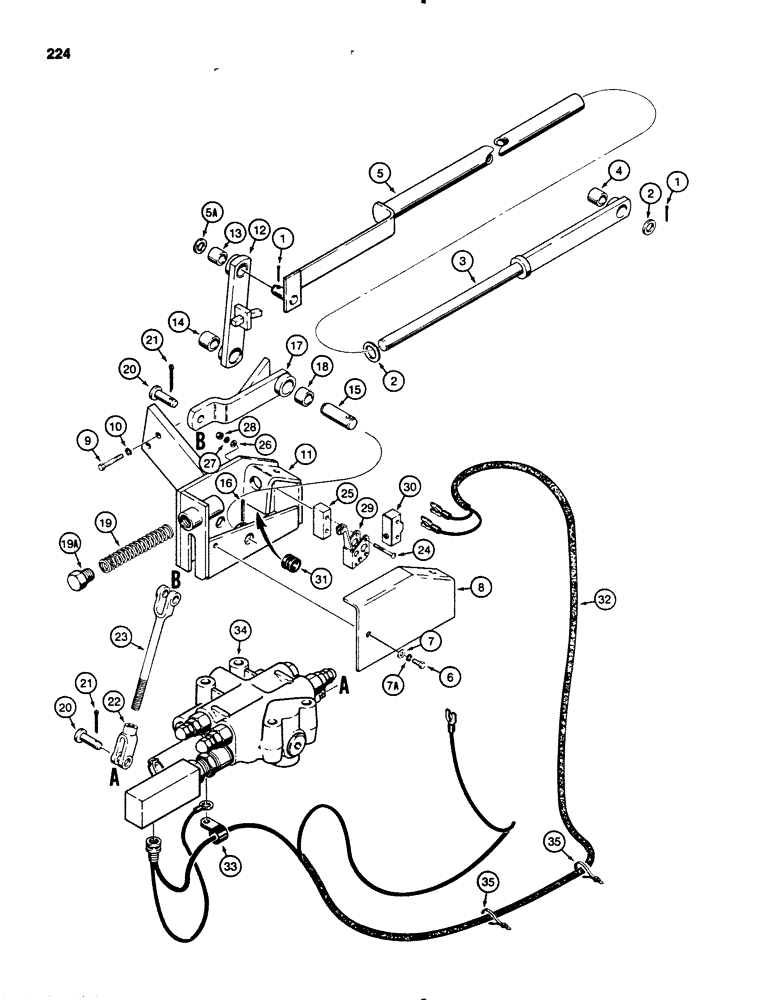

Запчасти Case 455B (224) - RETURN-TO-DIG AND ANTI-ROLLBACK (04) - UNDERCARRIAGE

1

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

2

195-45

WASHER,3/4"

1шт.

3

R31488

ROD ASSY.

ROD - at link, inner, Includes: Ref. #4

1шт.

4

A12018

BUSHING

- rod

1шт.

6

R42007

TUBE

ROD - at switch box

1шт.

5a

195-41

WASHER,5/8"

1шт.

6

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7a

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

8

R33258

COVER - switch

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

R39788

BOX - switch

1шт.

12

R33265

LINK

- anti-rollback, Includes: Ref. #13 & 14

1шт.

13

B15768

BUSHING

- upper end

1шт.

14

R33023

BUSHING

- lower end

1шт.

15

R33259

PIN

- link, retaining

1шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

17

R39792

LINK - to valve control, Includes: Ref. #18

1шт.

18

A12018

BUSHING

- link

1шт.

19

R33014

SPRING

- return-to-dig

1шт.

19a

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

20

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis

2шт.

21

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

22

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable

1шт.

23

A57012

ROD

- at valve controls

1шт.

24

169-71

SCREW - machine, slotted, no. 6-32 NC x 2"

2шт.

25

R33260

SPACER - switch

1шт.

26

195-516

WASHER,#12

- flat, no. 12

2шт.

27

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

28

129-5

NUT,#6-32

2шт.

29

R33016

BRACKET

ACTUATOR - switch

1шт.

30

R33015

SWITCH

- return-to-dig

1шт.

31

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- rubber

1шт.

32

R40339

HARNESS - wiring, ignition switch to return-to-dig switch and valve

1шт.

33

80049853

YOKE

- harness

1шт.

34

REF

INSTRUCTION

VALVE - loader, see Fig. 202 & 206 for proper valves

1шт.

35

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, harness

1шт.
