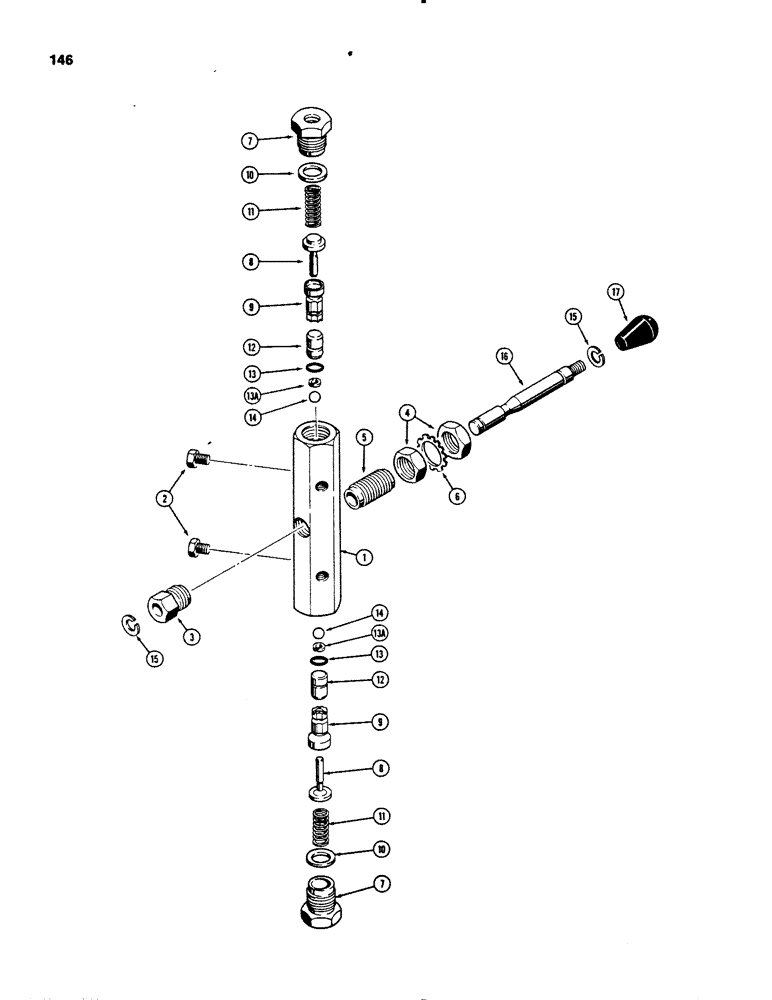

Запчасти Case 455B (146) - D49105 BRAKE VALVE (04) - UNDERCARRIAGE

D49105

VALVE

ASSEMBLY - optional brake system, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

221-1849

PLUG

- pipe, square socket head

2шт.

3

D50018

PLUG

FITTING - push rod guide

1шт.

4

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8"-11 NC, plated

2шт.

5

D50017

ADAPTER

- special, push rod

1шт.

6

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

7

A16672

PLUG

- special, end

2шт.

R29966

KIT

- repair, valve, Includes: Ref. #8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

STEM - valve

2шт.

9

NSS

NOT SOLD SEPARAT

VALVE - brake

2шт.

10

D46277

GASKET

- end plug

2шт.

11

A16674

SPRING

- valve

2шт.

12

D50014

PISTON ASSY.

PISTON ASSEMBLY - valve, Includes: Ref.#13 & 13A

2шт.

13

A16679

O-RING

- piston

1шт.

13a

L35761

RING

- backup

1шт.

14

211-100

BALL,3/8" Dia, Stainless

- valve

2шт.

15

D50016

RING, SNAP

SNAP RING - push rod

2шт.

16

D50013

PUSH ROD

ROD ASSEMBLY - push, Includes: Ref, #17

1шт.

17

D50015

KNOB

- push rod

1шт.
