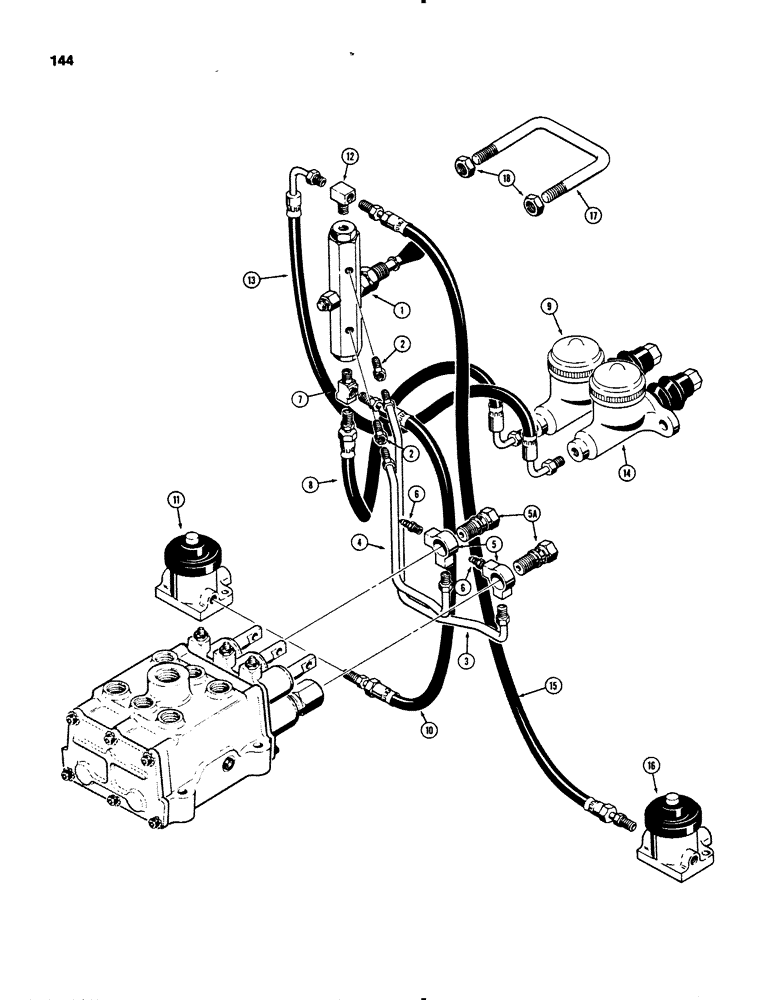

Запчасти Case 455B (144) - OPTIONAL BRAKE CIRCUIT (04) - UNDERCARRIAGE

1

D49105

VALVE

- optional brake, parts list Fig. 146

1шт.

2

222-1011

HYD CONNECTOR,3/8"-24 Inv Fl x 1/8" NPT

FITTING - straight, male

2шт.

3

R40478

TUBE,0.187" OD

- to transmission valve, RH

1шт.

4

R40480

TUBE,0.187" OD

- to transmission vale, LH

1шт.

5

D49251

FITTING

- special, tee

2шт.

5a

A12864

BOLT

- special, hollow

2шт.

6

D46258

PLUG

FITTING - air removal

2шт.

7

222-1075

TEE,3/8"-24 Inv Fl x 1/8" NPT Br

FITTING - three way

1шт.

8

D49255

HOSE

- LH, 13-1/2" (343 mm) long

1шт.

9

REF

INSTRUCTION

CYLINDER - master, LH brake, parts list Fig. 142

1шт.

10

D49256

HOSE,4.78mm ID x 515.62mm L

- LH, 20-5/16" (516 mm) long

1шт.

11

REF

INSTRUCTION

CYLINDER - LH brake, parts list Fig. 112

1шт.

12

222-1070

TEE,3/8"-24 Inv Fl x 1/8" NPT Br

FITTING - three way

1шт.

13

D49254

HOSE

- RH, 22-13/32" (569 mm) long

1шт.

14

REF

INSTRUCTION

CYLINDER - master, RH brake, parts list Fig. 142

1шт.

15

D49253

HOSE

- RH, 27-1/2"-(699 mm) long

1шт.

16

REF

INSTRUCTION

CYLINDER - RH brake, parts list Fig. 112

1шт.

D49115

GUARD

ASSEMBLY - valve lever, Includes: Ref. #17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

GUARD - valve lever

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.
