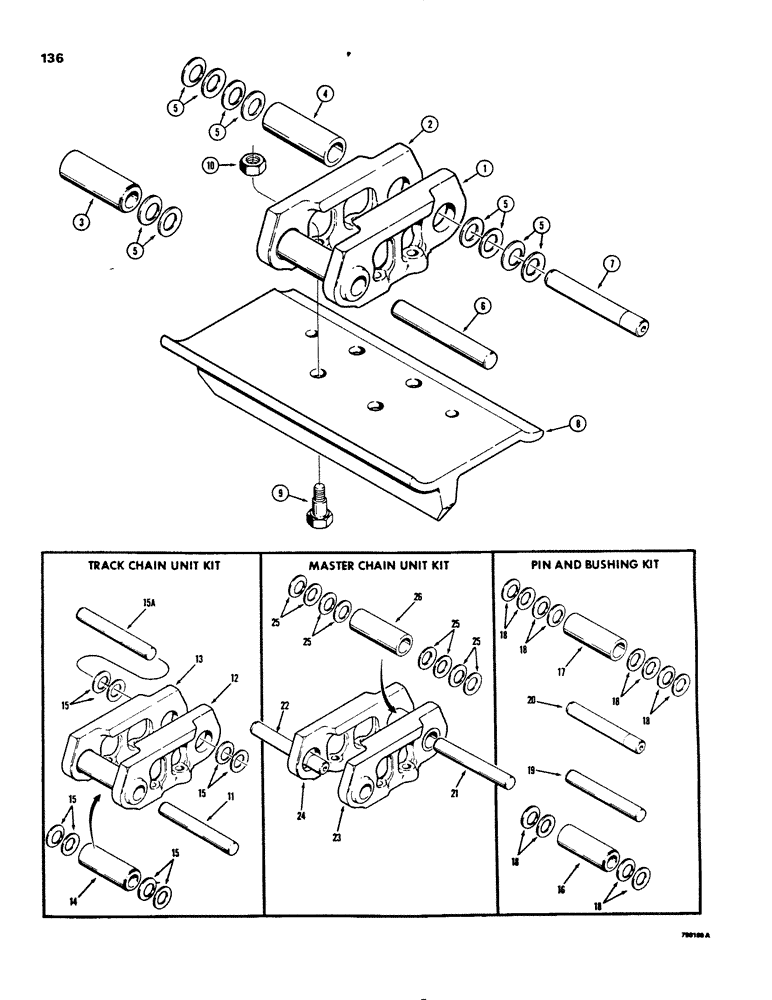

Запчасти Case 455B (136) - TRACK CHAINS (04) - UNDERCARRIAGE

R24571

CHAIN (AG)

CHAIN ASSEMBLY - 36 unit, Includes: Ref. #1 - 7

2шт.

If dealer ordered components for chain and they are not the same size as on customers machine, they may have been replaced with R52283 chain used on 450C. Compare that chain to what customer has.

1шт.

1

R24573

LINK

- track chain, RH

36шт.

2

R24572

LINK

- track chain, LH

36шт.

3

R24576

BUSHING

- track, standard

35шт.

4

R24577

BUSHING

- track, master

1шт.

5

R24694

WASHER

- seal

148шт.

6

R24616

PIN,31.83mm OD x 166.12mm L

- track, standard

35шт.

7

R24617

PIN

- track, master (Replaces R24574)

1шт.

8

REF

INSTRUCTION

PLATE - track, Fig. 138 & 140 for options

72шт.

9

R24688

FLANGE BOLT

BOLT - special 1/2-20 NF-3a---1.56in length

288шт.

10

R24578

NUT

- special, 1/2" x 20

288шт.

R24742

KIT

- track chain unit, Includes: Ref. #11 - 15A

70шт.

11

R24616

PIN,31.83mm OD x 166.12mm L

- track, standard, chain unit kit

1шт.

12

R24573

LINK

- track chain, RH, unit kit

1шт.

13

R24572

LINK

- track chain, LH, unit kit

1шт.

14

R24576

BUSHING

- track, standard, chain unit kit

1шт.

15

R24694

WASHER

- seal, track chain unit kit

8шт.

15a

R24616

PIN,31.83mm OD x 166.12mm L

- track, standard, .003" (.076 mm) oversize, chain unit kit

1шт.

R24743

KIT

- pin and bushing, Includes: Ref. #16 - 20

1шт.

16

R24576

BUSHING

- track, standard, pin kit

70шт.

17

R24577

BUSHING

- track, master, pin kit

2шт.

18

R24694

WASHER

- seal, pin & bushing kit

296шт.

19

R24616

PIN,31.83mm OD x 166.12mm L

- track, standard, .003" (.076 mm) oversize, bushing kit

70шт.

20

R24617

PIN

- track, master, .003" (.076 mm) oversize, bushing kit

2шт.

R24741

DRAG LINK

KIT - master chain unit, Includes: Ref. #21 - 26

2шт.

21

R24616

PIN,31.83mm OD x 166.12mm L

- track, standard, master chain unit kit

1шт.

22

R24617

PIN

- track, master, .003" (.076 mm) oversize, chain unit kit

1шт.

23

R24573

LINK

- track chain, RH, master unit kit

1шт.

24

R24572

LINK

- track chain, LH, master unit kit

1шт.

25

R24694

WASHER

- seal, master chain unit kit

8шт.

26

R24577

BUSHING

- master chain unit kit

1шт.
