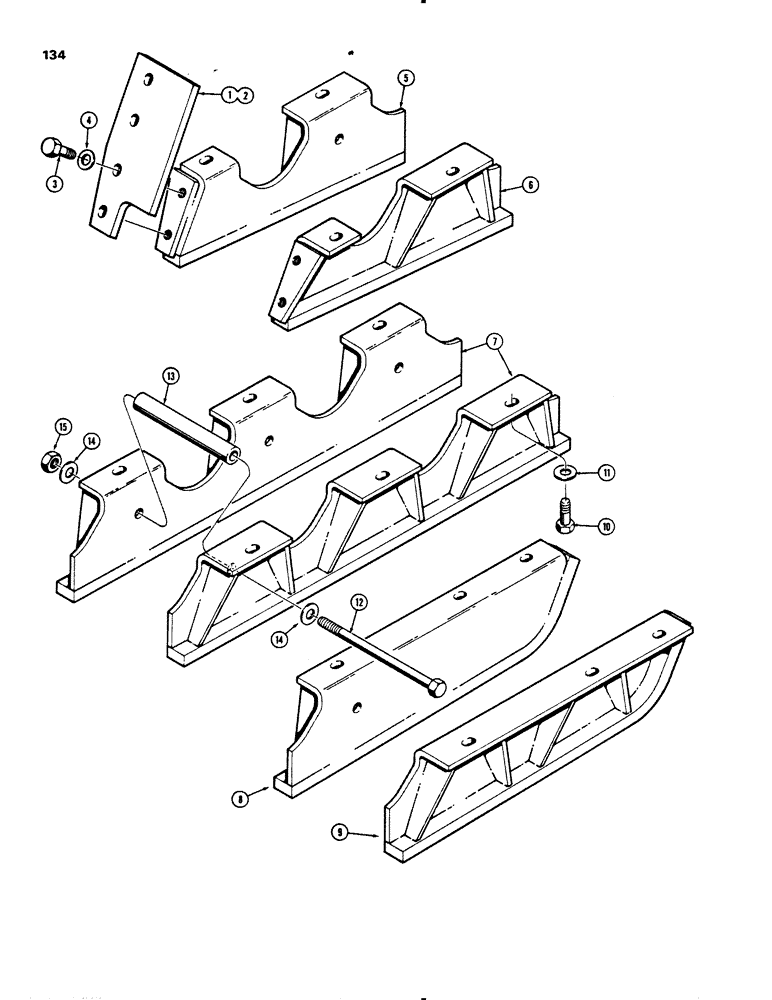

Запчасти Case 455B (134) - TRACK GUIDES, ROCK GUARDS (04) - UNDERCARRIAGE

1

R36667

COVER

GUARD - sprocket, outer

2шт.

2

R36667

COVER

GUARD - sprocket, inner

2шт.

3

113-2424

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8, Full Thd

- hex, 1/2"-13 NC x 1-1/4", plated

16шт.

4

R24718

WASHER

- hardened

16шт.

5

R36676

GUARD

TRACK GUIDE - rear, LH

2шт.

6

R36677

GUARD

TRACK GUIDE - rear, RH

2шт.

7

R36673

GUARD

TRACK GUIDE - center

4шт.

8

R36674

GUARD

TRACK GUIDE - front, LH

2шт.

9

R36675

GUARD

TRACK GUIDE - front, RH

2шт.

10

113-2424

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8, Full Thd

- hex, 1/2"-13 NC x 1-1/4", plated

32шт.

Use 113-417 Bolt.

1шт.

11

R24718

WASHER

- hardened, 1/2"

32шт.

12

15-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 5

- hex, 1/2"-13 NC x 8-1/2"

10шт.

13

R36665

GUARD

SPACER - track guide

10шт.

14

R24718

WASHER

- hardened

20шт.

15

131-1100

LOCK NUT,1/2"-13, GA

NUT, LOCK, 1/2"-13, GA

10шт.
