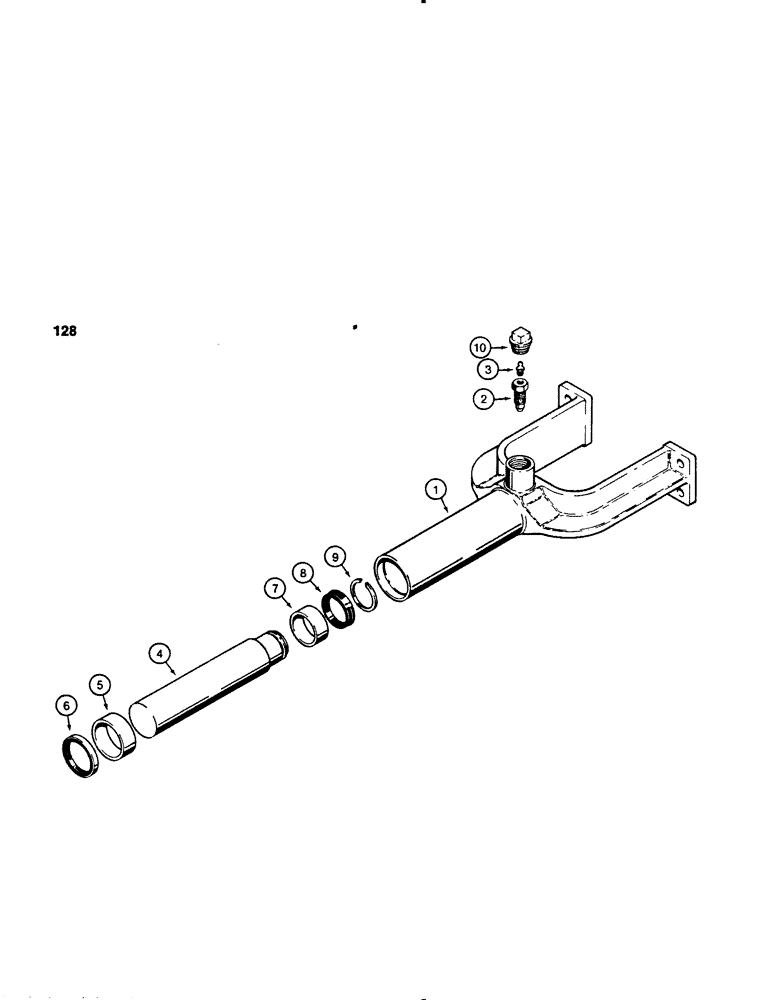

Запчасти Case 455B (128) - TRACK ADJUSTER AND IDLER, TRACK ADJUSTER (04) - UNDERCARRIAGE

R42179

YOKE

TRACK ADJUSTER ASSEMBLY - yoke, Includes: Ref. #1 - 10

2шт.

1

R42184

YOKE

- cylinder

1шт.

2

D35287

CHECK VALVE,5/8" - 18

CHECK VALVE ASSEMBLY - complete

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

4

R29669

PISTON

- cylinder

1шт.

5

D35503

RING,50.7mm ID x 60.35mm OD x 22.23mm Thk

- piston

1шт.

6

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston

1шт.

7

D37289

BUSHING,44.35mm ID x 53.92mm OD x 19.05mm L

BEARING - backup

1шт.

8

D95382

SEAL,44.27mm ID x 54.05mm OD x 10.69mm Thk

PACKING - U-cup

1шт.

9

A27085

RING

SNAP RING - piston

1шт.

10

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

pipe Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.
