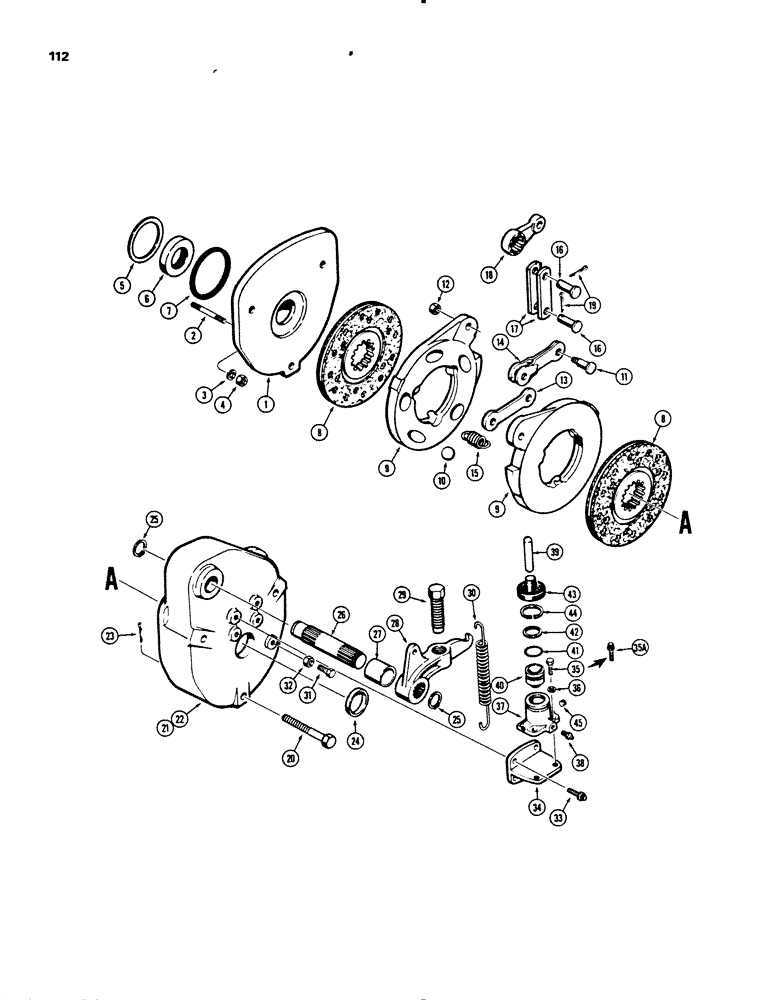

Запчасти Case 455B (112) - TRANSMISSION BRAKES (03) - TRANSMISSION

1

A50184

FLANGE

PLATE - mounting

2шт.

2

G102110

BOLT

- 1/2"-13 NC x 2"

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

8шт.

5

A50061

SHIM,0.076mm Thk

(.003") 0.076mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

5

A50062

SHIM,0.127mm Thk

(.005") 0.127mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

5

A50063

SHIM,0.254mm Thk

(.010") 0.254mm Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

6

A50418

OIL SEAL

- oil

2шт.

Part of Seal Kit P/N G102662

1шт.

7

A50055

SEALING RING

O-RING

2шт.

Part of Seal Kit P/N G102662

1шт.

G100317

BRAKE

ASSEMBLY - transmission, Includes: Ref. #s 8 - 15

2шт.

8

G100318

BRAKE DISC

DISC - bonded

4шт.

9

A50148

DISC

PLATE - brake

2шт.

10

211-19

BALL,7/8" Dia

- steel, 7/8" Dia

5шт.

11

A30898

STEP BOLT

BOLT - special, shoulder

2шт.

12

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex, 5/16"-24 NF

2шт.

13

R18533

LINK

- flat

1шт.

14

F77868

LINK

- yoke

1шт.

15

A155624

SPRING

3шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

- clevis (Replaces R15370)

4шт.

17

R15369

LINK

- pull

4шт.

18

R15372

LEVER

- brake

2шт.

19

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), , Stainless steel 3/32" x 3/4"

4шт.

20

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

21

A50206

COVER

- brake, RH

1шт.

22

A50207

COVER

- brake, LH

1шт.

23

R14605

PIN

- cotter, drain hole cleaner

4шт.

24

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, brake cover

2шт.

Part of Seal Kit P/N G102662

1шт.

25

B18208

SNAP RING,#100, Ext

4шт.

26

A50514

SHAFT

- brake actuating

2шт.

27

A50392

BUSHING

SPACER - shaft

2шт.

28

G109374

LEVER

- actuating (Replaces A50393)

2шт.

29

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

BOLT - self-locking, 3/4"-16 NF x 2-3/4"

2шт.

30

A50589

SPRING

- brake lever return

2шт.

31

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

33

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

BOLT - 12 pt, 3/8"-16 NC x 2"

8шт.

34

A50119

BRACKET

- brake cylinder

2шт.

35

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

If used Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

35a

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - Ferry head, 12 point, 1/4"-20 NC x 3/4", if used

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

G103628

BRAKE

CYLINDER - brake, Includes: Ref. #s 37 - 44

2шт.

37

NSS

NOT SOLD SEPARAT

BODY

1шт.

38

A41491

BLEEDER,1/4" - 28 x 23.37mm

FITTING - air removal

1шт.

39

A41489

ROD

- push

1шт.

40

A42874

PISTON

- cylinder

1шт.

Piston for G109413 (Brake Fluid) is G109585 other components are the same.

1шт.

41

A42876

SEAL

O-RING - piston

1шт.

42

A42877

RING

- backup

1шт.

43

G103629

BOOT

- dust

1шт.

44

A30975

SNAP RING,1.188", Int, #118

cylinder 1.188", Int, #118

1шт.

45

222-1062

PLUG,7/16"-24, Inv Fl

- hex head tube, 7/16"-24 NF

2шт.

G102662

SEAL

KIT - seal, Includes: Ref. 5's, 6, 7 & 24, Fig. 124 for complete kit

1шт.
