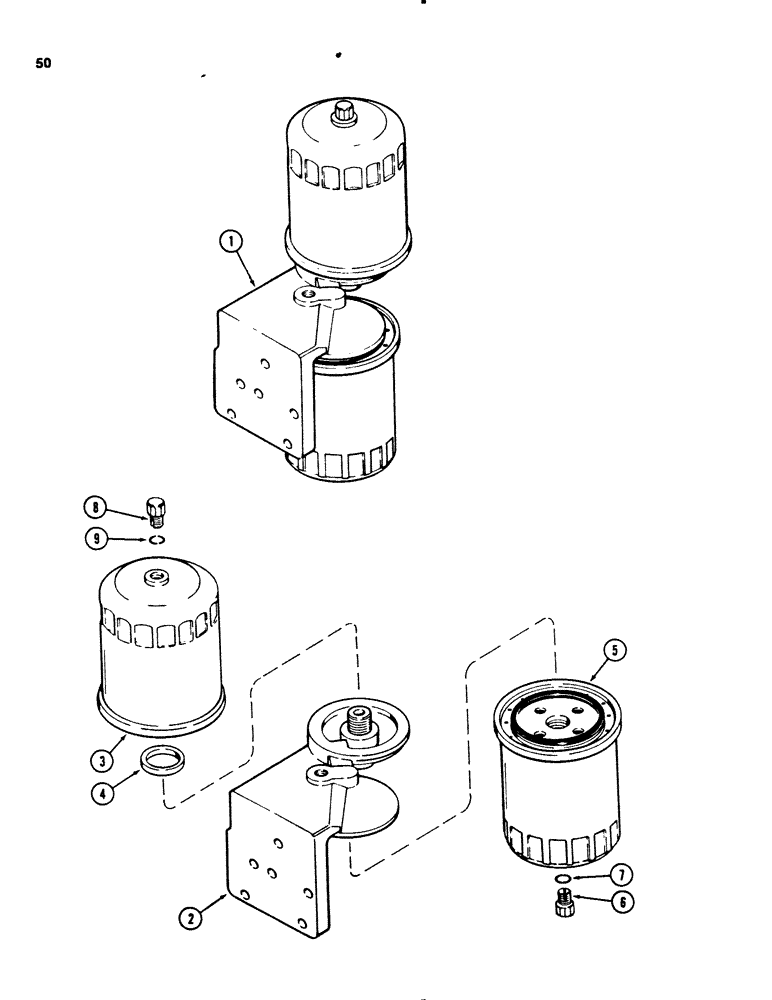

Запчасти Case 455B (050) - FUEL FILTER, 207 TURBOCHARGED DIESEL ENGINE, 207 NAURALLY ASPIRATED DIESEL ENGINE (02) - FUEL SYSTEM

1

A154934

FILTER

ASSEMBLY - fuel, Includes: Ref. #s2 - 9

1шт.

2

A154909

HEAD

- filter base

1шт.

A151281

FUEL FILTER

FILTER KIT- Includes, Ref. #s 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - secondary, 15/16" threads (Order A151281 kit) (Reference No. A39868), Includes: Ref. # 4

1шт.

4

A42315

GASKET

- filter to head, 15/16 x 1-1/4 x 1/4" (24 x 32 x 7 mm)

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - primary, 13/16" threads (Order A151281 kit) (Reference No. A37867)

1шт.

6

G49080

PLUG

- drain, primary filter, 12 point head, nylon, 3/8" NF

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Drain, Secondary filter, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
