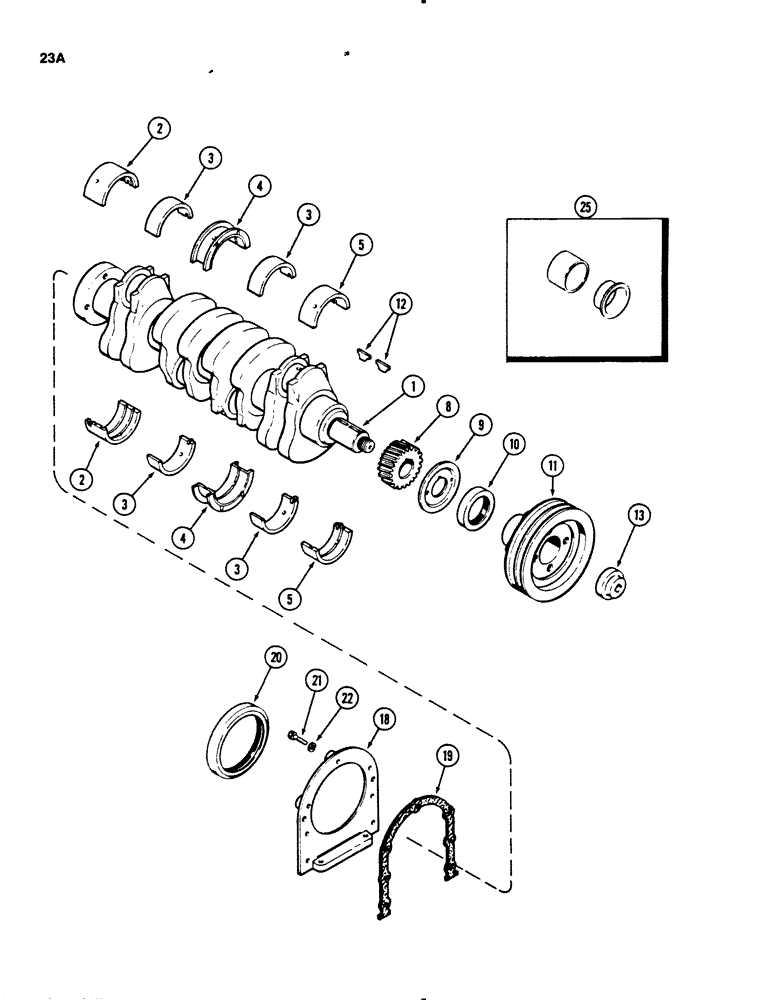

Запчасти Case 455B (023A) - CRANKSHAFT, 207 TURBOCHARGED DIESEL ENGINE (01) - ENGINE

1

A153409

CRANKSHAFT

- engine

1шт.

2

A155574

KIT

INSERT - main bearing, rear, standard (Set of 2)

1шт.

2

A155575

KIT

INSERT - main bearing, rear, 0.002" undersize (0.06 mm) (Set of 2)

1шт.

2

A155576

KIT

INSERT - main bearing, rear, 0.010" undersize (0.26 mm) (Set of 2)

1шт.

2

A155577

KIT

INSERT - main bearing, rear, 0.020 " undersize (0.51 mm) (Set of 2)

1шт.

2

A155578

KIT

INSERT - main bearing, rear, 0.030" undersize (0.77 mm) (Set of 2)

1шт.

3

A156306

KIT

INSERT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A156307

KIT

INSERT - main bearing, intermediate, 0.002 "undersize (0.06 mm) (Set of 2)

2шт.

3

A156308

KIT

INSERT - main bearing, intermediate, 0.010 " undersize (0.026 mm) (Set of 2)

2шт.

3

A156308

KIT

INSERT - main bearing, intermediate, 0.010 " undersize (0.026 mm) (Set of 2)

2шт.

3

A156309

KIT

INSERT - main bering, intermediate, 0.020 " undersize (0.51 mm) (Set of 2)

2шт.

3

A156310

KIT

INSERT - main bearing, intermediate, 0.030 " undersize (0.77 mm) (Set of 2)

2шт.

4

A155758

KIT

INSERT - main bearing, center, standard (Set of 2)

1шт.

4

A155759

KIT

INSERT - main bearing, center, 0.002 " undersize (0.06 mm) (Set of 2)

1шт.

4

A155760

KIT

INSERT - main bearing, center, 0.010 "undersize (0.26 mm) (Set of 2)

1шт.

4

A155761

KIT

INSERT - main bearing, center, 0.020" undersize (0.51 mm) (Set of 2)

1шт.

4

A155762

KIT

INSERT - main bearing, center, 0.030 " undersize (0.77 mm) (Set of 2)

1шт.

5

A155569

KIT

INSERT - main bearing, front, standard (Set of 2)

1шт.

5

A155570

KIT

INSERT - main bearing, front, 0.002" undersize (0.06 mm) (Set of 2)

1шт.

5

A155571

KIT

INSERT - main bearing, front, 0.010 " undersize (0.026 mm) (Set of 2)

1шт.

5

A155572

KIT

INSERT - main bearing, front, 0.020 "undersize (0.051 mm) (Set of 2)

1шт.

5

A155573

KIT

INSERT - main bearing, front, 0.030 " undersize (0.77 mm) (Set of 2)

1шт.

8

A39288

GEAR

- crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front, 2 x 3 x 1/2" (51 x 76 x 13 mm)

1шт.

11

A154021

PULLEY

- water pump drive

1шт.

12

A39132

KEY

- pulley and gear

2шт.

13

A166176

NUT

- pulley retaining (Replaces A35673)

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

2-

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear, 4 x 5 x 1/2 " (101 x 127 x 13 mm)

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4"

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- hex, 1/4 NC x 1"

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

7шт.

25

A155893

SLEEVE

KIT - wear

1шт.
