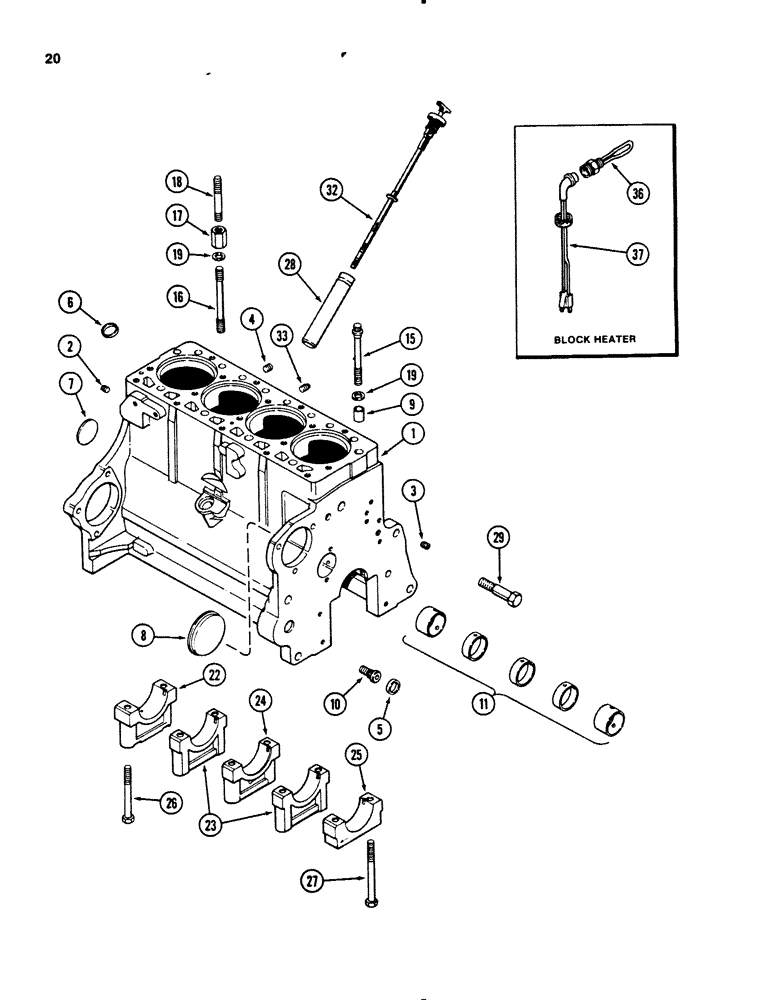

Запчасти Case 455B (020) - CYLINDER BLOCK, 207 NATURALLY ASPIRATED DIESEL ENGINE (01) - ENGINE

A46381

SHORT ENGINE

BLOCK ASSEMBLY - short (includes stripped block, piston assembly, connecting rods and bearings, crankshaft, oil pump and timing gears)(Engine No. 2869290 and after)

1шт.

A46350

SKELETON ENGINE

BLOCK ASSEMBLY - short (includes stripped block, piston assembly, connecting rods and bearings, camshaft, oil pump and timing gears)(Prior to Engine Serial No. 2869290)

1шт.

AR46351

ENGINE, EXCHANGE

BLOCK - remanufactured (North America only)

1шт.

AC46351

CORE-ENGINE

RETURN NUMBER - use this part no. to return block for credit

1шт.

1

A46351

BASIC BLOCK

BLOCK ASSEMBLY - stripped (Casting No. A152625), Includes: Ref.#s 2 - 29

1шт.

2

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery, Rear Hex Soc, 1/4"-18 NPTF

2шт.

3

G49070

PLUG

- oil gallery, front, drilled head, 1/4 "PT

1шт.

4

221-1032

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG - socket head, 3/8" PT

1шт.

5

41-1016

PLUG,Cup, 1"

- adapter hole, cup, 1 " (25 mm)

1шт.

6

A38534

PLUG

- tachometer drive hole, cup, 1-1/16 "(27 mm)

1шт.

7

41-1030

PLUG,Cup, 1 7/8"

- camshaft hole, 1-7/8 inch expansion (48 mm)

1шт.

8

41-1052

PLUG,Cup, 3 1/4"

- auxiliary drive hole, cup, 3-1/4 " (83 mm)

1шт.

9

G49608

RING

- dowel, head locating

2шт.

10

A153552

ADAPTER

- oil filter

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - camshaft (Fig. 18)

1шт.

A39047

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 3-1/2 "

4шт.

15

A39048

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 5-1/8 "

11шт.

15

A39049

12 PT SCREW

BOLT - 12 point head, 1/2 NC x 5-5/8 "

2шт.

16

A36902

STUD

- 1/2 NC x 5-5/8 "

2шт.

17

A51114

NUT

- 1/2 NC and 3/8 "NC

2шт.

18

A51271

STUD

- 3/8 NC x 3-3/4 "

2шт.

19

A39046

WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk

- 1/2 x 7/8 x 1/8 " (13 x 22 x 3 mm)

19шт.

23

G2128

CAP

- main bearing, intermediate

2шт.

24

G2127

CAP

- main bearing, center (thrust)

1шт.

25

G2126

CAP

- main bearing, front

1шт.

26

26-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 "

8шт.

27

26-882

BOLT,Hex, 1/2" - 13 x 5-1/8", Gr 8

- hex, 1/2 NC x 5-1/8 "

2шт.

28

A37149

TUBE

- oil filter and dipstick

1шт.

29

A38303

BOLT

BOLT - hex, 5/8 NC x 3-3/16" (not used this application)

1шт.

32

A39936

DIPSTICK

- oil level

1шт.

33

221-841

PLUG

- drain, square head, 1/4" PT

1шт.

36

A182030

HEATER

ASSEMBLY - block (Replaces A44815), block

1шт.

36

A182031

HEATER ASSY.

HEATER ASSEMBLY - block (Replaces A44815) (Canada only), block, Includes: Ref.# 37

1шт.

37

A182034

CABLE

CORD - heater (Replaces A44814), block

1шт.
