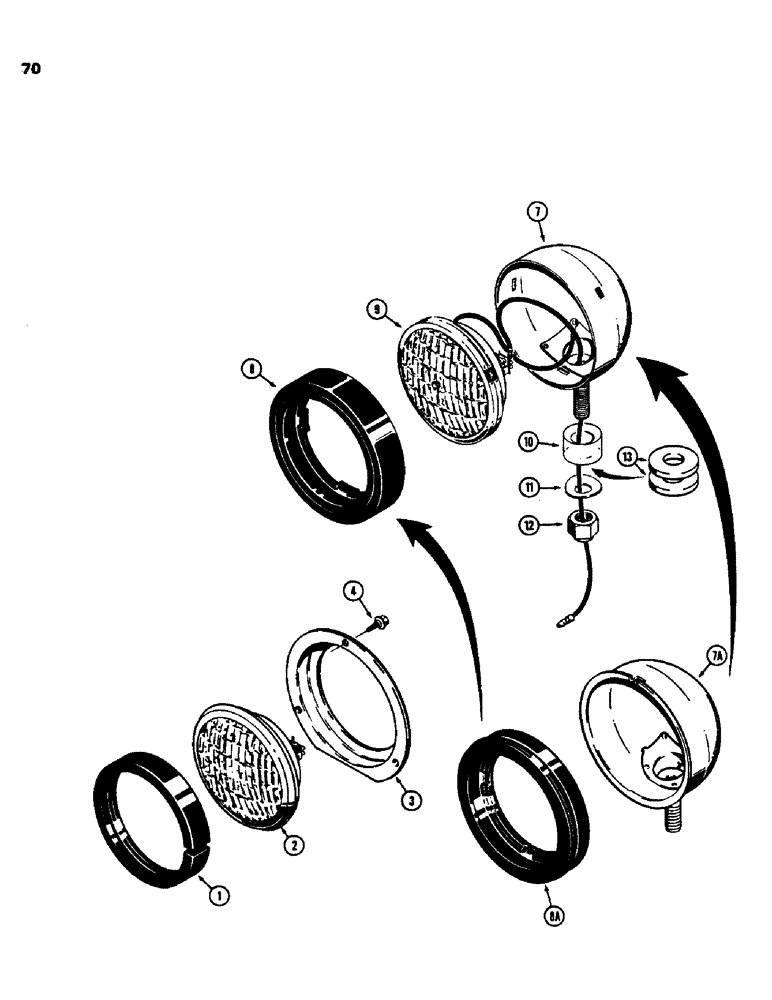

Запчасти Case 455B (070) - LAMPS, HEAD LAMP ASSEMBLY (06) - ELECTRICAL SYSTEMS

1

D93241

RETAINER

SEAL - lamp, rubber retainer

2шт.

2

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4410

2шт.

3

D57288

RING

RETAINER - lamp

2шт.

4

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, 1/4"-20 NC x 1/2", plated

6шт.

D34934

LAMP

FLOOD LAMP ASSEMBLY - rear, Includes: Ref. #s 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. # 8 only, rear flood assembly

1шт.

7a

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. # 8A only, rear flood assembly

1шт.

8

A25213

RETAINER

- bulb, rubber, locks to shell with 3 rubber tabs, if used, rear flood lamp assembly

1шт.

8a

N6160

LAMP

RETAINER - bulb, rubber, locks over shell flange, if used, rear flood lamp assembly

1шт.

9

A11280

LAMP

BULB - sealed beam, No. 4411, rear flood lamp assembly

1шт.

10

D37048

BUSHING

- pivot, rear flood lamp assembly

1шт.

11

D37049

WASHER

- special, rear flood lamp assembly

1шт.

12

131-28

LOCK NUT,1/2"-20, GB

NUT - hex, self lock, 1/2"-20 NF, plated, replaces lock washer and regular hex nut used in production on some models, rear flood lamp assembly

1шт.

13

D31328

WASHER

- special, if used, rear flood lamp assembly

2шт.
