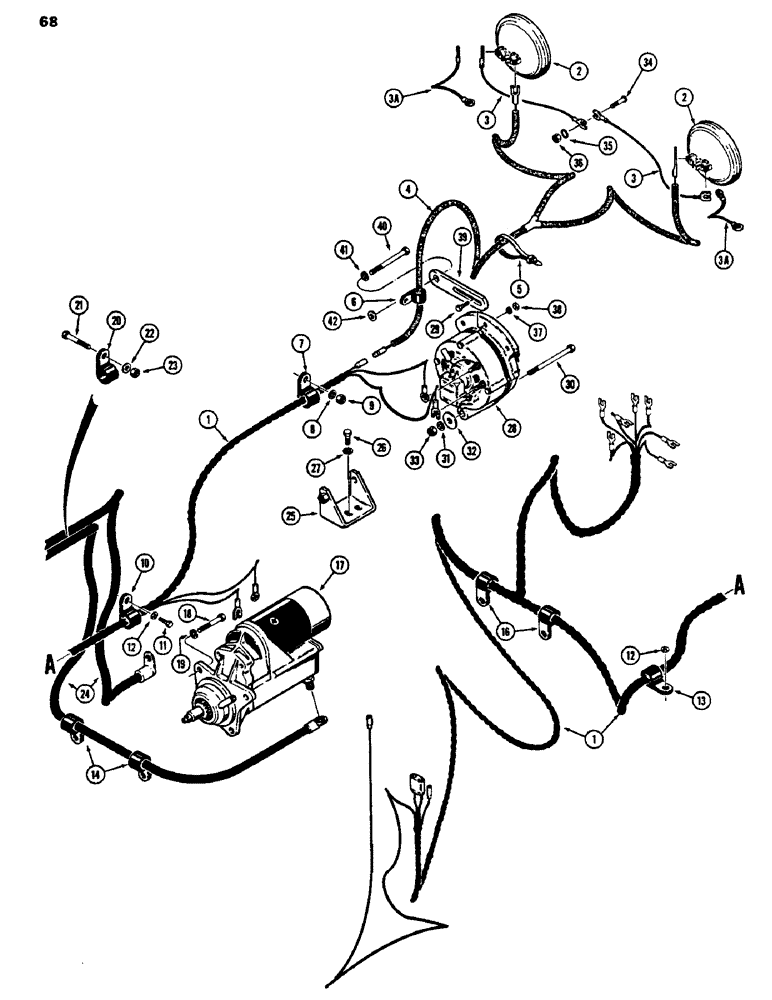

Запчасти Case 455B (068) - FRONT ELECTRICAL WIRING, STARTER, ALTERNATOR, AND HEAD LAMPS (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - without connector for backup alarm, no longer used, order R44058 harness and R43836 backup alarm wire (see figure 72) not shown.

1шт.

1

R44058

HARNESS

- with female bullet connector for backup alarm

1шт.

2

REF

INSTRUCTION

LAMP - front,Fig. 70

2шт.

3

R33638

ELECTRICAL WIRE

WIRE - ground, 17" (432 mm) long, if used

2шт.

3a

A11768

ELECTRICAL WIRE

WIRE - ground, if used

2шт.

4

R29239

HARNESS

- head lamps

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - head lamp harness

1шт.

6

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- head lamp harness, uses intake manifold hardware

1шт.

7

49845

CLAMP

- harness, behind alternator

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, above starter

1шт.

11

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1шт.

12

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

13

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness, uses flywheel timing hole cover hardware and Ref. #12 flat washer

1шт.

14

49848

SHAFT

CLAMP - positive battery cable, uses torque converter mounting hardware

1-2шт.

14

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

15

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness

2шт.

17

REF

INSTRUCTION

MOTOR - starter, part list Fig. 58 & 60

1шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

D40471

CLAMP

- cables

1шт.

21

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

22

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

23

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - hex, self-locking, 3/8"-16 NC, plated

1шт.

24

REF

INSTRUCTION

CABLES - battery, Fig. 67

2шт.

25

R43734

BRACKET

- alternator mounting

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

REF

INSTRUCTION

ALTERNATOR - for alternator used on models without turbocharger, Fig. 57; for alternator used on models with turbocharger, see Parts Catalog 207 Turbocharged Diesel Engine for 450B Crawler, No. 8-1380, Fig. 44

1шт.

29

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

30

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- hardened

1шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

34

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, No. 10-24 NC x 5/8"

1шт.

35

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

36

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

D41740

WASHER

- flat, hardened, 3/8"

1шт.

39

R29597

STRAP

- alternator adjusting

1шт.

40

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

41

92-6

LOCK WASHER,3/8"

1шт.

42

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.
