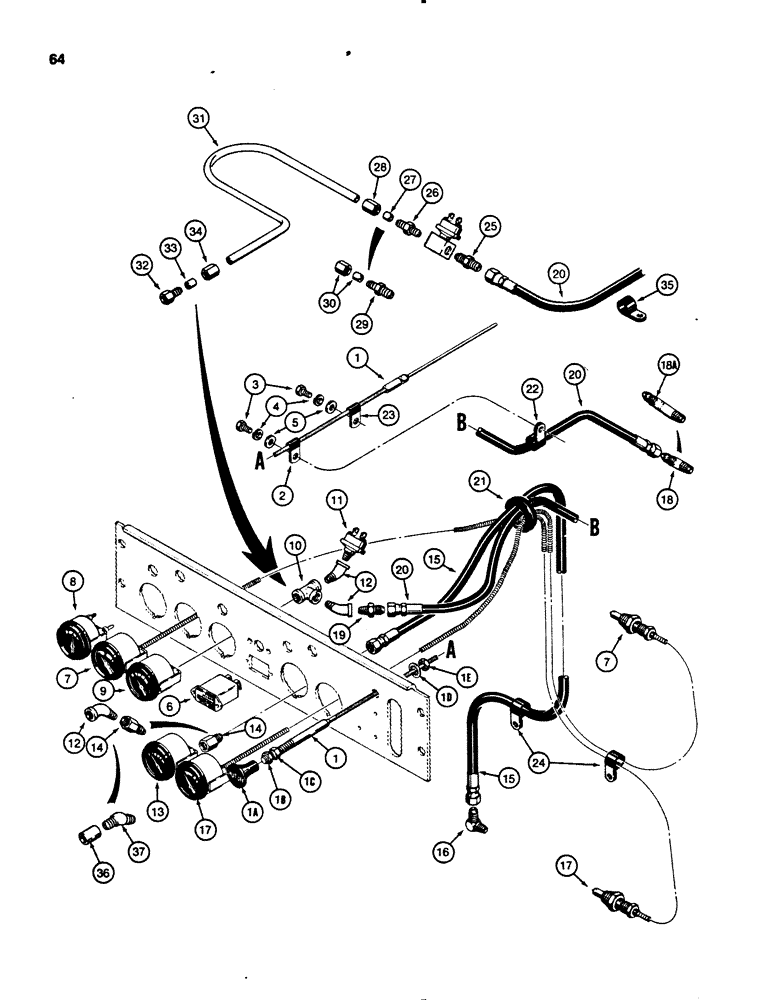

Запчасти Case 455B (064) - INSTRUMENT AND FUEL SHUTOFF (06) - ELECTRICAL SYSTEMS

1

R39307

CONTROL

- fuel shutoff,Includes: Ref. #s1A - 1E

1шт.

1a

L33717

KNOB

- fuel shutoff control

1шт.

1b

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, lock, 3/8"-24 NF, plated

1шт.

1c

L32866

SEAL

NUT - special, 3/8"-24 NF

1шт.

1d

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

1e

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

2

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

1шт.

3

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

195-18

WASHER,1/4"

- flat, 1/4"

2шт.

6

REF

INSTRUCTION

HOURMETER - Fig. 62

1шт.

7

R42267

ELECTRICAL GAUGE

GAUGE - engine oil temperature

1шт.

Engine (Water) temperature description in catalog is incorrect.

1шт.

8

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

9

R46054

OIL PRESSURE GAUGE

GAUGE - engine oil pressure

1шт.

10

217-10

TEE,1/8" - 27 NPTF Fem

FITTING - tee, 1/8" NPT, if used

1шт.

11

D28798

SWITCH

- pressure, includes wire, wire not used

1шт.

12

221-401

ELBOW,45 Degree, 1/8"-27, NPT

- street, 45 degree; two used on loader models, three on dozer models, if used

2-3шт.

13

R38646

GAUGE

- transmission oil pressure

1шт.

14

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

CONNECTOR - straight, used alone on loader models; used with Ref. 12 on dozer models, or, see Refs. 36 and 37

1шт.

15

D95114

HOSE

- loader model

1шт.

15

D95112

HOSE

- dozer model, uses 221-401 fitting

1шт.

16

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degree

1шт.

17

R39457

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

18

218-1066

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF, LG

FITTING - 90 degree, used on models without turbocharged engine

1шт.

18a

R46423

ELBOW

- 45 degree, used on models with turbocharged engine

1шт.

19

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - straight

1шт.

20

D95117

HOSE

- engine oil pressure

1шт.

21

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- loader model

1шт.

22

NLS

NO LONGER SERVICED

1шт.

23

49859

CLAMP

1шт.

24

D20302

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

25

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - straight, if used

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for service order 222-400, Fig. 29 & 30, if used

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

27

D37176

SLEEVE

- adapter

1шт.

28

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - straight, service replacement for D35816, Fig. 26-28, Includes: Ref. 29 & 30

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

30

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

31

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, if used

1шт.

D35091

PIPE FITTING

ADAPTER - straight, female, if used, Includes: Ref. #s 32 - 34

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

33

D37176

SLEEVE

- adapter

1шт.

34

D37362

TUBE NUT

- adapter

1шт.

35

49836

CLAMP

- hose, engine oil pressure, if used

1шт.

36

221-335

COUPLING,Pipe, 1/8" NPT

- straight, 1/8" NPT, dozer models only, if used

1шт.

37

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, dozer models only, if used

1шт.
