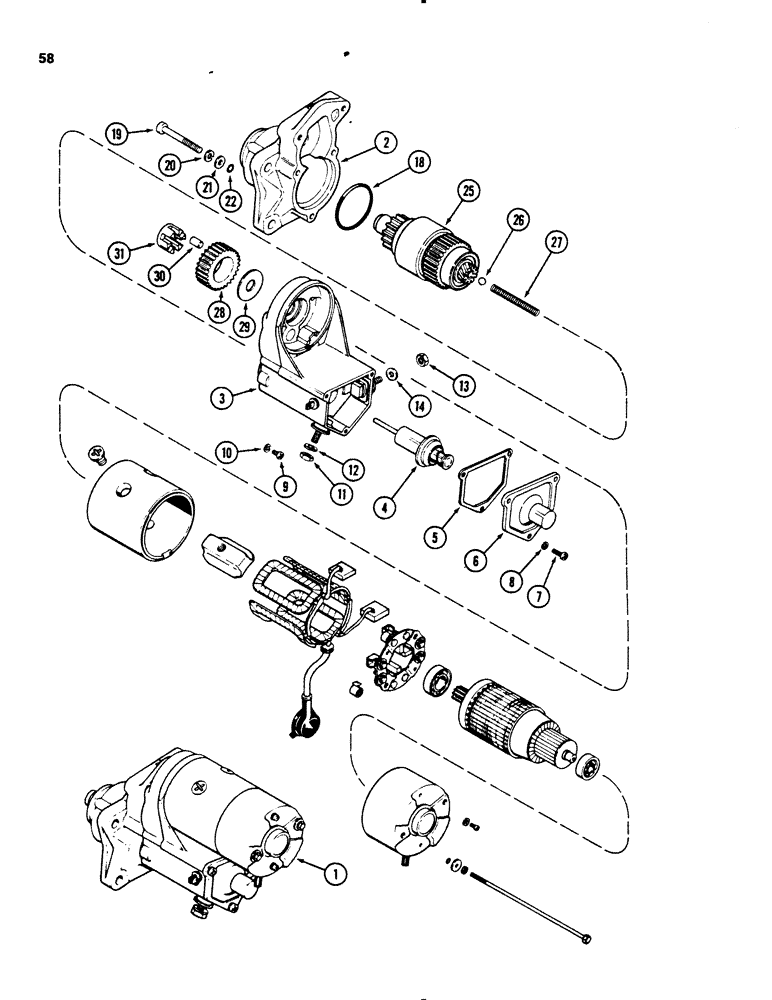

Запчасти Case 455B (058) - STARTER (06) - ELECTRICAL SYSTEMS

1

R39341

STARTING MOTOR

STARTER ASSEMBLY - engine (Nippondenso No. 028000-5880), Includes: 2 - 8

1шт.

1

87297364

REMAN-STARTER

Starter

1шт.

1

87297365

CORE-STARTER

Return Part Number

1шт.

1

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

1

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

A47227

HOUSING

HOUSING - drive end

1шт.

3

A47228

SWITCH

SWITCH ASSEMBLY - engine

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER - cover screw

3шт.

9

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW - pan head, No. 8-32 x 3/8"

1шт.

10

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

11

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Battery terminal Jam, 3/8"-16, G5

1шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

14

A10454

WAVE WASHER

WASHER - field coil terminal

1шт.

18

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING - switch to housing, 1-7/8 x 3/32" (48 x 50 x 2 mm), Includes: Ref. # 19 & P/N A47230

1шт.

A47230

BOLT

BOLT ASSEMBLY - through

2шт.

19

NSS

NOT SOLD SEPARAT

BOLT - through

1шт.

20

892-1106

LOCK WASHER,M6

LOCK WASHER, (1/4"), Includes: M6

1шт.

21

195-516

WASHER,#12

WASHER - 1/4 x 9/16 x 1/16" (6 x 14 x 2 mm)

1шт.

22

A47127

O-RING

O-RING - bolt seal, 3/16 x 5/16 x 1/16" (5 x 8 x 2 mm)

1шт.

25

A47231

CLUTCH

CLUTCH ASSEMBLY - drive

1шт.

26

211-10

BALL

BALL - thrust, 3/8 inch diameter steel (10 mm)

1шт.

27

A47232

SPRING

SPRING - clutch drive, 2-13/16" free length (71 mm)

1шт.

28

A47233

GEAR

PINION - idler

1шт.

29

A47234

WASHER

WASHER - thrust, idler pinion

1шт.

30

A47235

ROLLER BEARING

ROLLER - idler pinion bearing

6шт.

31

A47236

RETAINER

RETAINER - roller bearings

1шт.
